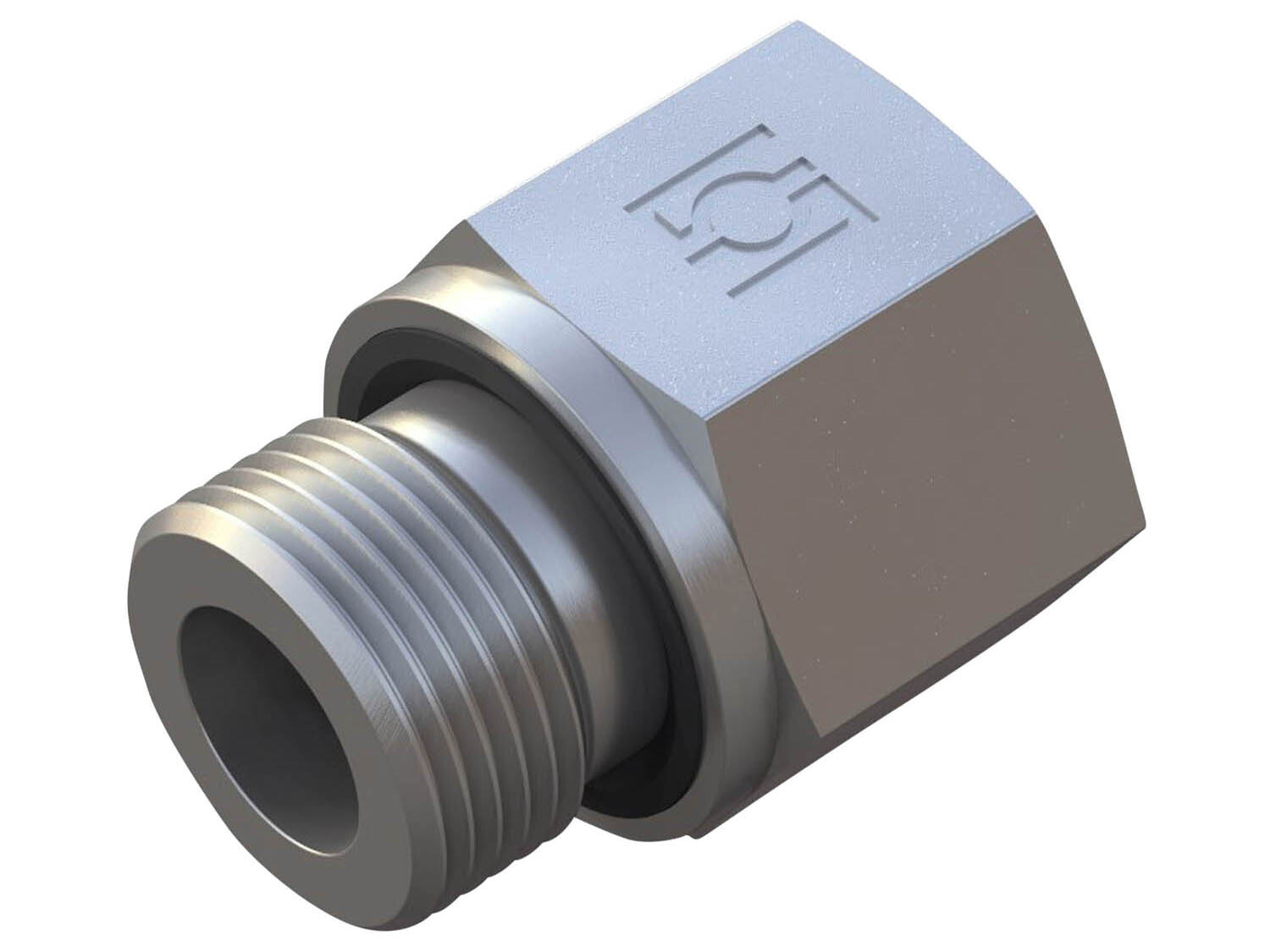

Adapter BSP male x BSP female - with seal - RI-WD / RI-ED

VÆLG VARIANT

Varenummer	Beskrivelse	Gevind udvendig	Gevind indvendig	Tryk maks.	Type
RI1/2WD1	Reduction - 1/2" BSP x 1 BSP female - WD seal	G 1/2 BSP	G 1 BSP	400 bar	Long
RI1/2WD1/4	Reduction - 1/2" BSP x 1/4" BSP female - WD seal	G 1/2 BSP	G 1/4 BSP	630 bar	Short
RI1/2WD1/8	Reduction - 1/2" BSP x 1/8" BSP female - WD seal	G 1/2 BSP	G 1/8 BSP	630 bar	Short
RI1/2WD11/4	Reduction - 1/2" BSP x 1.1/4" BSP female - WD seal	G 1/2 BSP	G 1.1/4 BSP	400 bar	Long
RI1/2WD3/4	Reduction - 1/2" BSP x 3/4" BSP female - WD seal	G 1/2 BSP	G 3/4 BSP	400 bar	Long
RI1/2WD3/8	Reduction - 1/2" BSP x 3/8" BSP female - WD seal	G 1/2 BSP	G 3/8 BSP	630 bar	Long
RI1/4WD1/2	Reduction - 1/4" BSP x 1/2" BSP female - WD seal	G 1/4 BSP	G 1/2 BSP	630 bar	Long
RI1/4WD1/8	Reduction - 1/4" BSP x 1/8" BSP female - WD seal	G 1/4 BSP	G 1/8 BSP	630 bar	Long
RI1/4WD3/4	Reduction - 1/4" BSP x 3/4" BSP female - WD seal	G 1/4 BSP	G 3/4 BSP	630 bar	Long
RI1/4WD3/8	Reduction - 1/4" BSP x 1/8" BSP female - WD seal	G 1/4 BSP	G 3/8 BSP	630 bar	Long
RI1/8WD1/4	Reduction - 1/8" BSP x 1/4" BSP female - WD seal	G 1/8 BSP	G 1/4 BSP	630 bar	Long
RI1/8WD3/8	Reduction - 1/8" BSP x 3/8" BSP female - WD seal	G 1/8 BSP	G 3/8 BSP	630 bar	Long
RI11/2WD1	Reduction - 1.1/2" BSP x 1" BSP female - WD seal	G 1.1/2 BSP	G 1 BSP	315 bar	Short
RI11/2WD1/2	Reduction - 1.1/2" BSP x 1/2" BSP female - WD seal	G 1.1/2 BSP	G 1/2 BSP	315 bar	Short
RI11/2WD11/4	Reduction - 1.1/2" BSP x 1.1/4" BSP female - WD seal	G 1.1/2 BSP	G 1.1/4 BSP	315 bar	Long
RI11/2WD3/4	Reduction - 1.1/2" BSP x 3/4" BSP female - WD seal	G 1.1/2 BSP	G 3/4 BSP	315 bar	Short
RI11/2WD3/8	Reduction - 1.1/2" BSP x 3/8" BSP female - WD seal	G 1.1/2 BSP	G 3/8 BSP	630 bar	Short
RI11/4WD1	Reduction - 1.1/4" BSP x 1 BSP female - WD seal	G 1.1/4 BSP	G 1 BSP	400 bar	Long
RI11/4WD1/2	Reduction - 1.1/4" BSP x 1/2" BSP female - WD seal	G 1.1/4 BSP	G 1/2 BSP	400 bar	Short
RI11/4WD11/2	Reduction - 1.1/4" BSP x 1.1/2" BSP female - WD seal	G 1.1/4 BSP	G 1.1/2 BSP	315 bar	Long
RI11/4WD3/4	Reduction - 1.1/4" BSP x 3/4" BSP female - WD seal	G 1.1/4 BSP	G 3/4 BSP	400 bar	Short
RI1WD1/2	Reduction - 1"BSP x 1/2"BSP female - WD seal	G 1 BSP	G 1/2 BSP	400 bar	Short
RI1WD1/4	Reduction - 1" BSP x 1/4" BSP female - WD seal	G 1 BSP	G 1/4 BSP	400 bar	Short
RI1WD11/2	Reduction - 1" BSP x 11/2" BSP female - WD seal	G 1 BSP	G 1.1/2 BSP	315 bar	Long
RI1WD11/4	Reduction - 1" BSP x 1.1/4" BSP female - WD seal	G 1 BSP	G 1.1/4 BSP	400 bar	Long
RI1WD3/4	Reduction - 1"BSP x 3/4"BSP female - WD seal	G 1 BSP	G 3/4 BSP	400 bar	Long
RI1WD3/8	Reduction - 1" BSP x 3/8" BSP female - WD seal	G 1 BSP	G 3/8 BSP	400 bar	Short
RI2WD11/2	Reduction - 2" BSP x 1.1/2" BSP female - WD seal	G 2 BSP	G 1.1/2 BSP	250 bar	Long
RI3/4WD1	Reduction - 3/4"BSP x 1" BSP female - WD seal	G 3/4 BSP	G 1 BSP	400 bar	Long
RI3/4WD1/2	Reduction - 3/4"BSP x 1/2"BSP female - WD seal	G 3/4 BSP	G 1/2 BSP	400 bar	Long
RI3/4WD1/4	Reduction - 3/4"BSP x 1/4"BSP female - WD seal	G 3/4 BSP	G 1/4 BSP	400 bar	Short
RI3/4WD11/2	Reduction - 3/4"SP x 11/2"BSP female - WD seal	G 3/4 BSP	G 1.1/2 BSP	315 bar	Long
RI3/4WD11/4	Reduction - 3/4" BSP x 1.1/4" BSP female - WD seal	G 3/4 BSP	G 1.1/4 BSP	400 bar	Long
RI3/4WD3/8	Reduction - 3/4"BSP x 3/8"BSP female - WD seal	G 3/4 BSP	G 3/8 BSP	400 bar	Short
RI3/8WD1/2	Reduction - 3/8" BSP x 1/2" BSP female - WD seal	G 3/8 BSP	G 1/2 BSP	630 bar	Long
RI3/8WD1/4	Reduction - 3/8" BSP x 1/4" BSP female - WD seal	G 3/8 BSP	G 1/4 BSP	630 bar	Long
RI3/8WD1/8	Reduction - 3/8" BSP x 1/8" BSP female - WD seal	G 3/8 BSP	G 1/8 BSP	630 bar	Short
RI3/8WD3/4	Reduction - 3/8" BSP x 3/4" BSP female - WD seal	G 3/8 BSP	G 3/4 BSP	400 bar	Long

Specifikationer
Dimensioner och frakt (välj variant)

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

Materiale

Steel

Mærke navn

Stauff

Overfladebehandling

Zinc-Nickel plated

Pakningsmateriale

NBR

REACH compliant

Yes

RoHs compliant

Yes

Temperatur maks.

+100

Temperatur min.

-35

Vinkel

Produktinformation
Måttskiss (välj variant)
