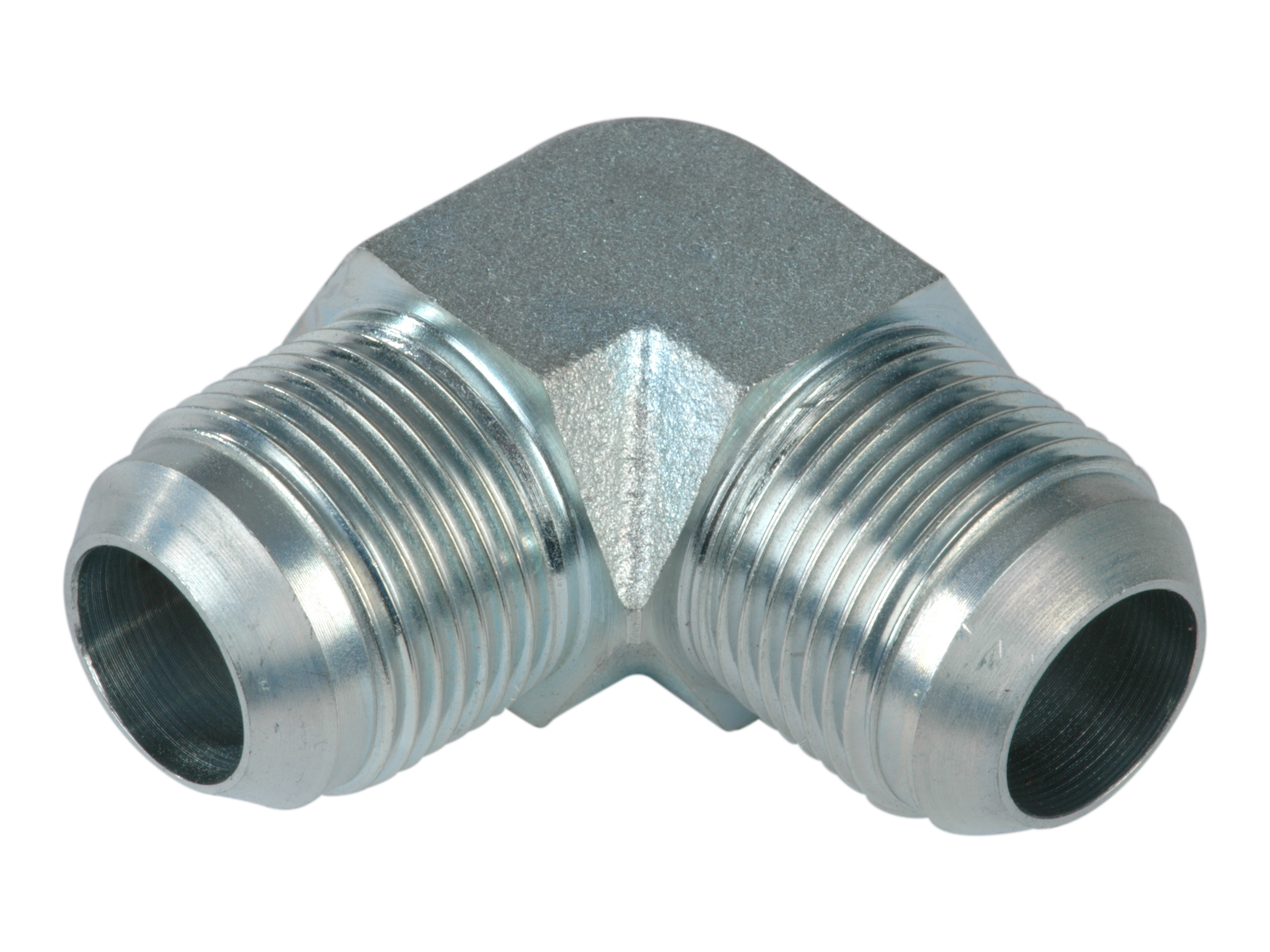

Elbow adapter 90° JIC male x JIC male - CU / JW

Elbow adapter 90° JIC male x JIC male - CU / JW

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max. Brand Name
CU-06 S500-06IL elbow, 90 ° 6 mm 7/16-20 JIC 450 bar FOR
CU-08 S500-08IL elbow, 90 ° 8 mm 1/2-20 JIC 416 bar FOR
CU-10 S500-10IL elbow, 90 ° 10 mm 9/16-18 JIC 350 bar FOR
CU-12 S500-12IL elbow, 90 ° 12 mm 3/4-16 JIC 350 bar FOR
CU-16 S500-16IL elbow, 90 ° 16 mm 7/8-14 JIC 350 bar FOR
CU-20 S500-20IL elbow, 90 ° 18-20 mm 1.1/16-12 JIC 300 bar FOR
CU-22 Elbow, 90 ° ¤ 22 mm 1.3/16-12 JIC 315 bar FOR
CU-25 S500-25IL elbow, 90 ° 25 mm 1.5/16-12 JIC 290 bar FOR
CU-32 S500-30IL elbow, 90 ° 32 mm 1.5/8-12 JIC 240 bar FOR
CU-38 S500-38IL elbow, 90 ° 38 mm 1.7/8-12 JIC 250 bar FOR
Angle
90
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
