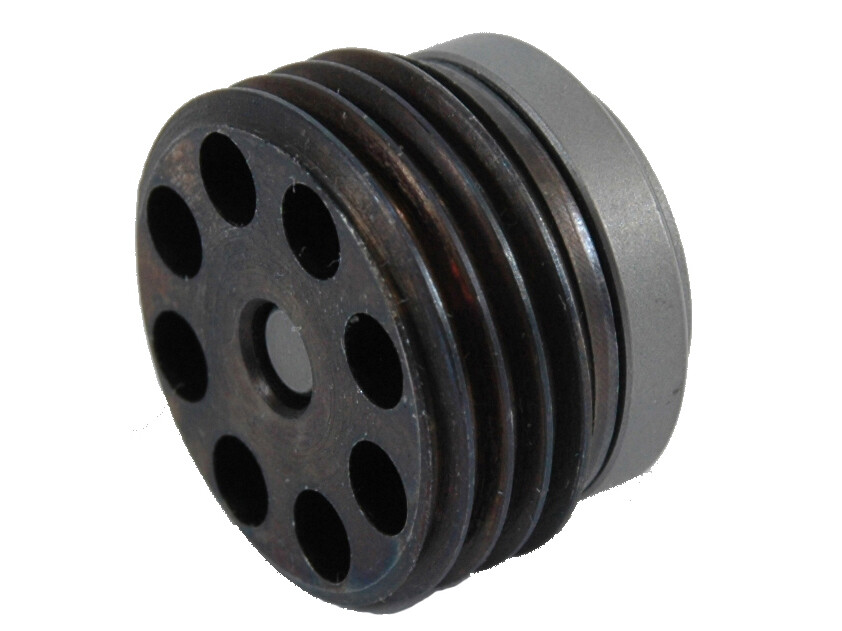

1/4 check valve
The Insert type check valve ensure a one-way flow direction and prevent backflow in hydraulic systems. When pressure at 1 rises above the spring bias pressure, the poppet is lifted, and flow are allowed from 1 to 2. The valve is closed (checked) from 2 to 1.
Precision machining and hardening processes allow virtually leak-free performance in the checked condition.
Osanumero:
VUH1.G14
Pakkauskoko:
0 pcs
Pienin tilausmäärä on:
1 pcs
Avauspaine
0.5 bar
Kierre
G 1/4 BSP
Lämpötila max.
+100 °C
Lämpötila min.
-30 °C
Mallikoodi
0TU501000900000
Materiaali
Steel
Paine max.
350 bar
Puhtaustaso min.
20/18/15 - ISO 4406
Tiivistysmateriaali
NBR
Tilavuusvirta nimellinen l/min
20 lpm
Tuotemerkit
Hydraspecma
Öljyn viskositeetti suositus
5 - 800 cSt
Package size
0 pcs
Barcode
5704295339962
Gross weight
0,01 Kg
Net weight
0,01 Kg
Country of origin
ITA
Intrastat code
84812010
The Insert type check valve ensure a one-way flow direction and prevent backflow in hydraulic systems. When pressure at 1 rises above the spring bias pressure, the poppet is lifted, and flow are allowed from 1 to 2. The valve is closed (checked) from 2 to 1.
Precision machining and hardening processes allow virtually leak-free performance in the checked condition.
