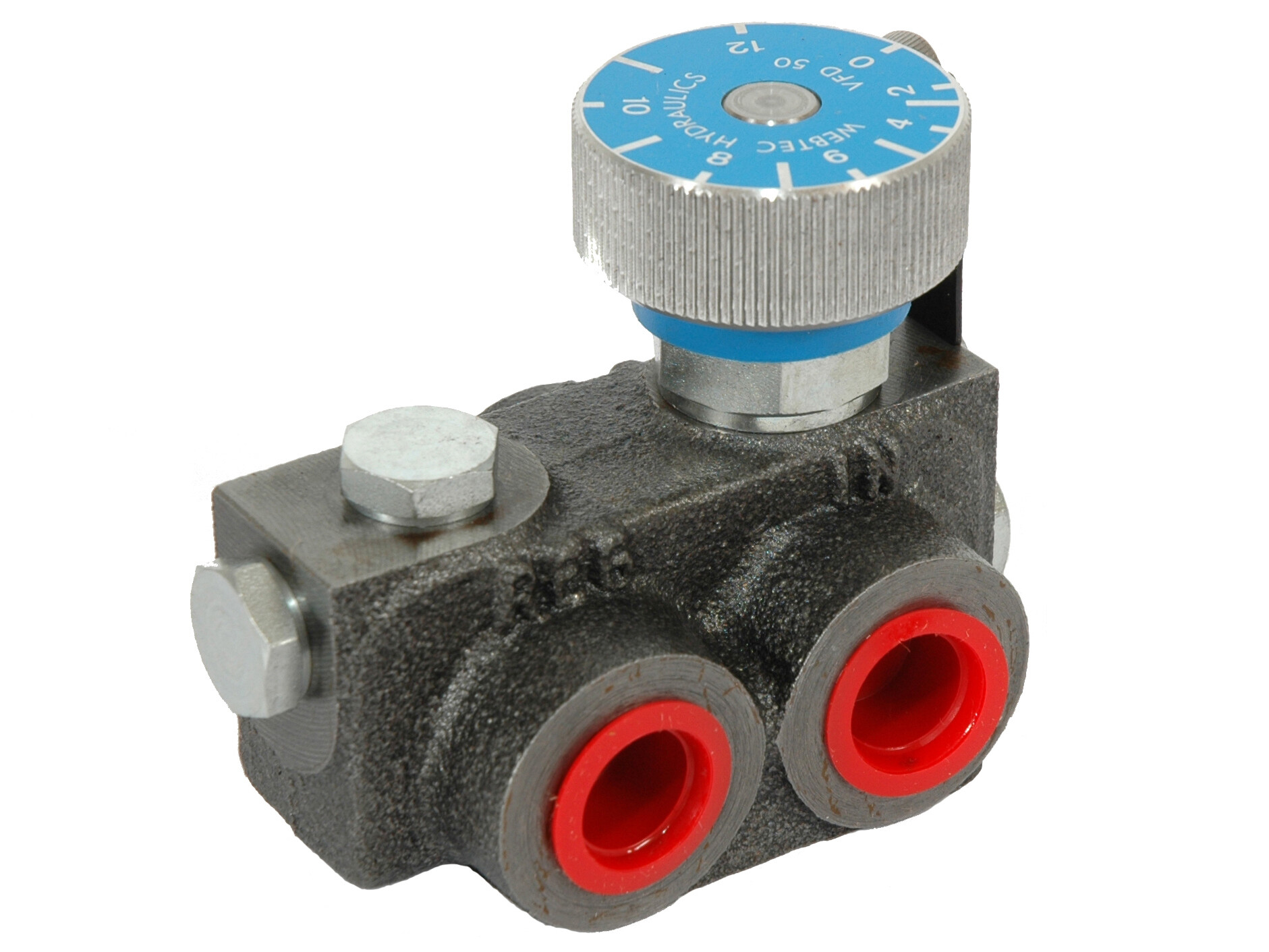

Webster flowdivider 0-30lpm
The flow in REG port can be reversed but is limited due to pressure fall because the valve is not equipped with a free flow check valve. It’s recommended to adjust the flow to max. before reversing the flow unless the pressure fall can be accepted. No reverse flow through the bypass port. Mount a check valve if the port become pressurized when there is no pressure on “P”.
Varenummer:
VFD50-30T
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Webtec
Flow max. regulated
30 lpm
Flow min. regulated
1 lpm
Inlet flow max.
40 lpm
Number of ways
3
Pressure max.
250 bar
Thread
G 3/8 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295363677
Bruttovikt
0,69 Kg
Nettovikt
0,69 Kg
Ursprungsland
Intrastat artikelkod
84812010
The flow in REG port can be reversed but is limited due to pressure fall because the valve is not equipped with a free flow check valve. It’s recommended to adjust the flow to max. before reversing the flow unless the pressure fall can be accepted. No reverse flow through the bypass port. Mount a check valve if the port become pressurized when there is no pressure on “P”.
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
