1/4" single-acting flow control valve Pressure compensated

Pressure compensated flow control valve with regulated flow in one direction and free reverse flow.

Artikelnummer:

FT270/5-14

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Spare parts (1)

Plastic cover FT270/5-14

Partnumber: TP270/5-14

Specifications
Dimensions and shipping

Brand Name

Tognella

Dimension A

G 1/4 BSP

Dimension B

12.5 mm

Dimension C

94 mm

Dimension CH

30 mm

Dimension D

81.5 mm

Dimension E

88.5 mm

Dimension F

27 mm

Dimension G

15 mm

Dimension H metric

M20x1 mm

Flow rate nominal LMin

12.5 lpm

Material

Steel

Pressure compensated

Yes

Pressure max.

250 bar

Sealing material

NBR

Temperature max.

+70 °C

Temperature min.

-20 °C

Thread

G 1/4 BSP

Valve type

Throttle/checkvalve

Package size

0 pcs

Barcode

5704295026718

Gross weight

0,58 Kg

Net weight

0,58 Kg

Country of origin

ITA

Intrastat code

84812010

Product information

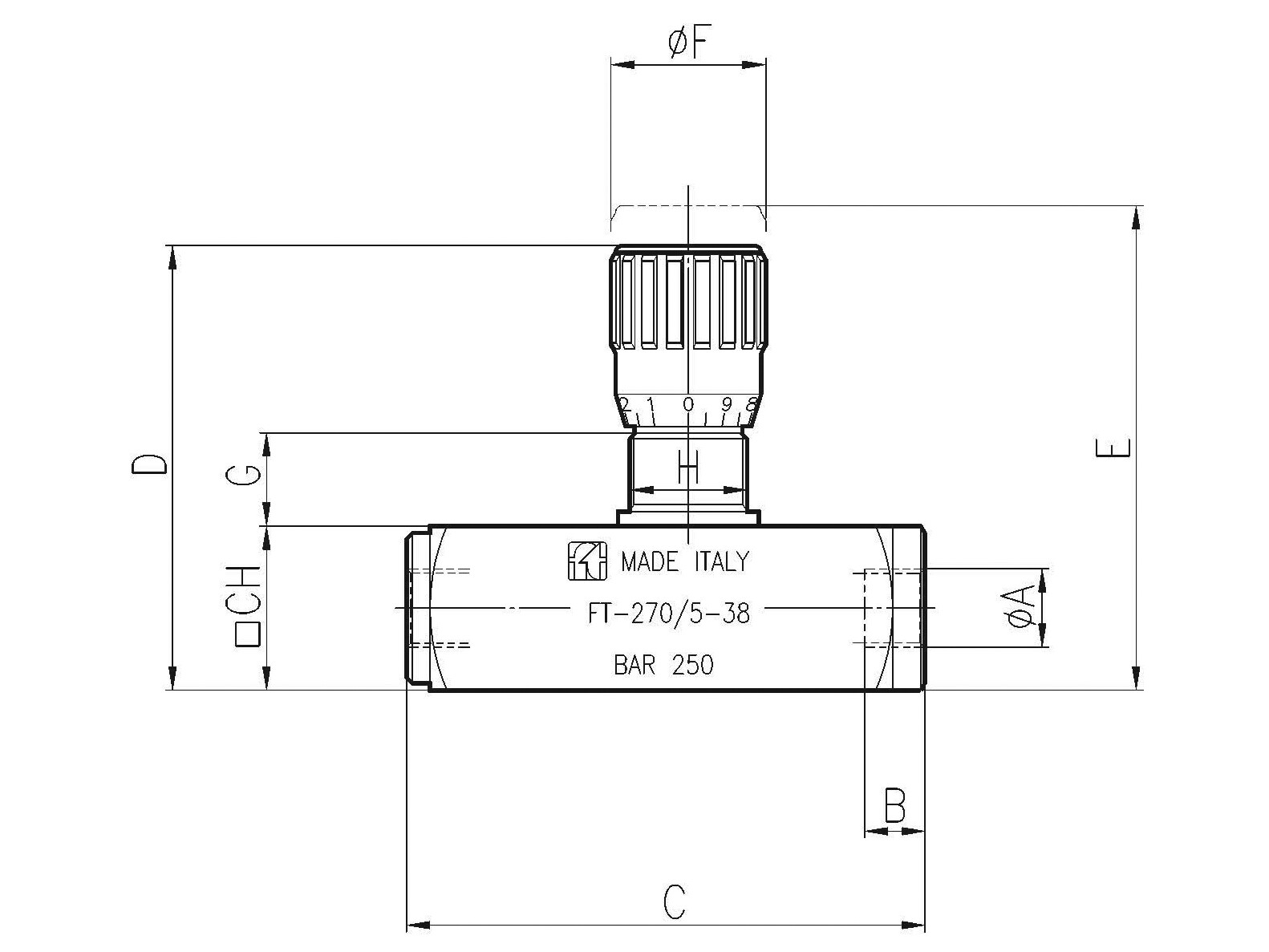

Measure sketch

Pressure compensated flow control valve with regulated flow in one direction and free reverse flow.
