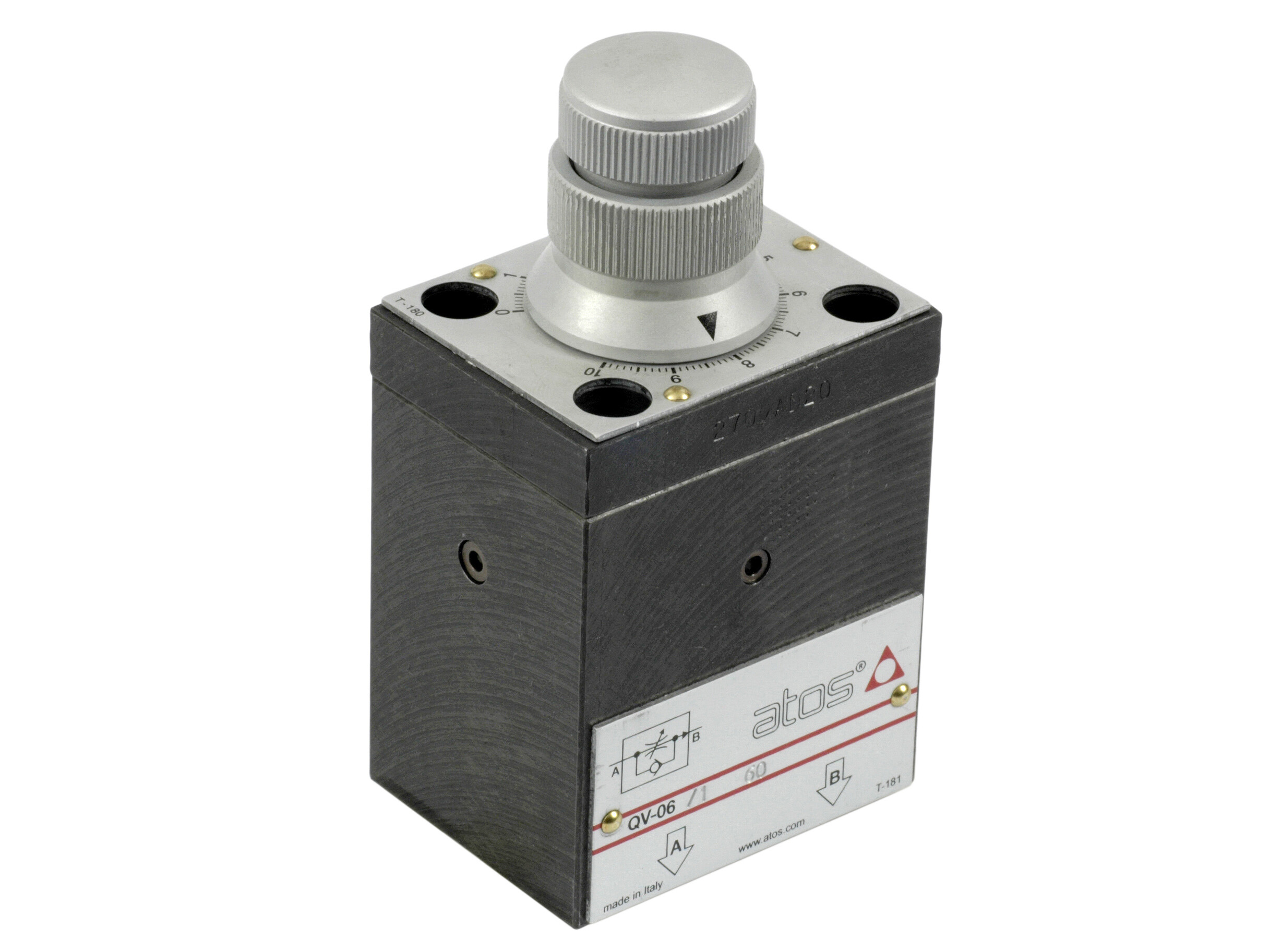

Atos flow control valve 2-way press. compensated 0-1,5 lpm
Atos QV pressure compensated flowcontrol valves. Are supplied with or without check-valve for free flow reverse.
Flowregulation is done by turning the graduated micrometer knob. Clockwise rotation increases the throttling (passage reduced). Optional version with locking key on the adjustment knob are available).
Fastening bolts: QV6: M5 x 70 mm (4 pcs).
Varenummer:
QV06/1
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Atos
Comment
CETOP3 / DN6
Contamination level max.
-/19/16 - ISO 4406
Flow max. regulated
1.5 lpm
Flow min. regulated
50 cm3
Inlet flow max.
24 lpm
Lock
No
Model code
QV-06/1
Number of ways
2
Oil viscocity recommended
15 - 100 cSt
Pressure compensated
Yes
Pressure max.
250 bar
Temperature max.
+60 °C
Temperature min.
-20 °C
Valve type
Throttle/checkvalve
Förpackningsstorlek
0 pcs
Streckkod
5704295211237
Bruttovikt
1,27 Kg
Nettovikt
1,27 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
Atos QV pressure compensated flowcontrol valves. Are supplied with or without check-valve for free flow reverse.
Flowregulation is done by turning the graduated micrometer knob. Clockwise rotation increases the throttling (passage reduced). Optional version with locking key on the adjustment knob are available).
Fastening bolts: QV6: M5 x 70 mm (4 pcs).
