1/4 flow control valve Togn Pressure compensated, AISI316
Flow control valve with regulated flow in one direction and free reverse flow.
Varenummer:
FT2270/5-14
Pakkestr.:
0 pcs
Min. bestillingsmengde er:
1 pcs

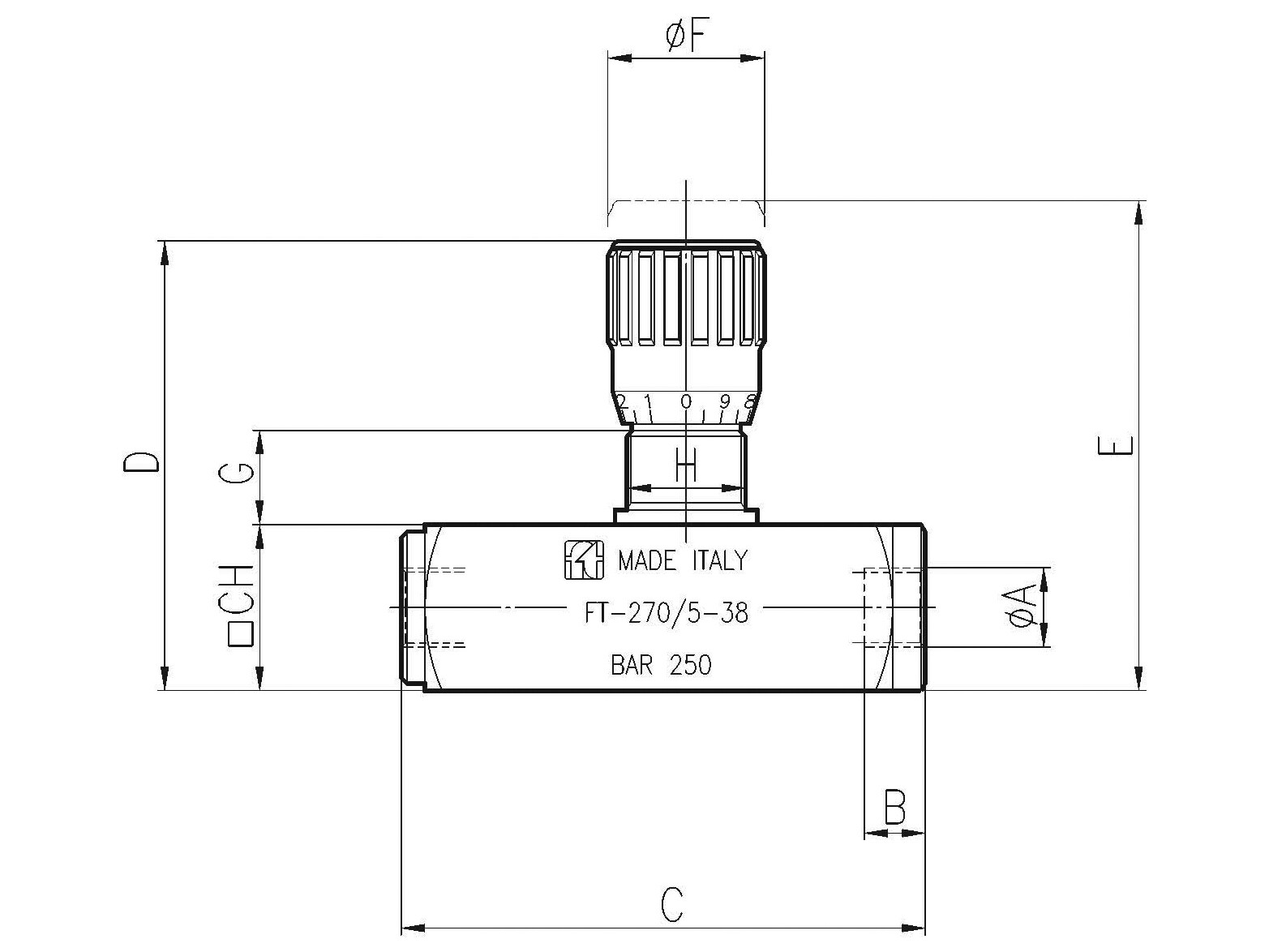

A
G 1/4 BSP
B
12,5 mm
C
94 mm
CH
30 mm
D
81,5 mm
E
88,5 mm
Flow Nominel
15 lpm
G
15 mm
Gevind
G 1/4 BSP
H
M20x1
Materiale
Stainless steel
Materialekvalitet
1.4404 / AISI316L
Mærke navn
Tognella
Pakningsmateriale
FKM/FPM (Viton®)
Temperatur maks.
+160 °C
Temperatur min.
-20 °C
Tryk maks.
250 bar
Trykkompenseret
Yes
Ventiltype
Throttle/checkvalve
Pakke str.
0 pcs
Stregkode
5704295891729
Brutto vægt
0,61 Kg
Netto vægt
0,61 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
Flow control valve with regulated flow in one direction and free reverse flow.
