V-VRCL 12/TS.S/ac tipo KD T-0542

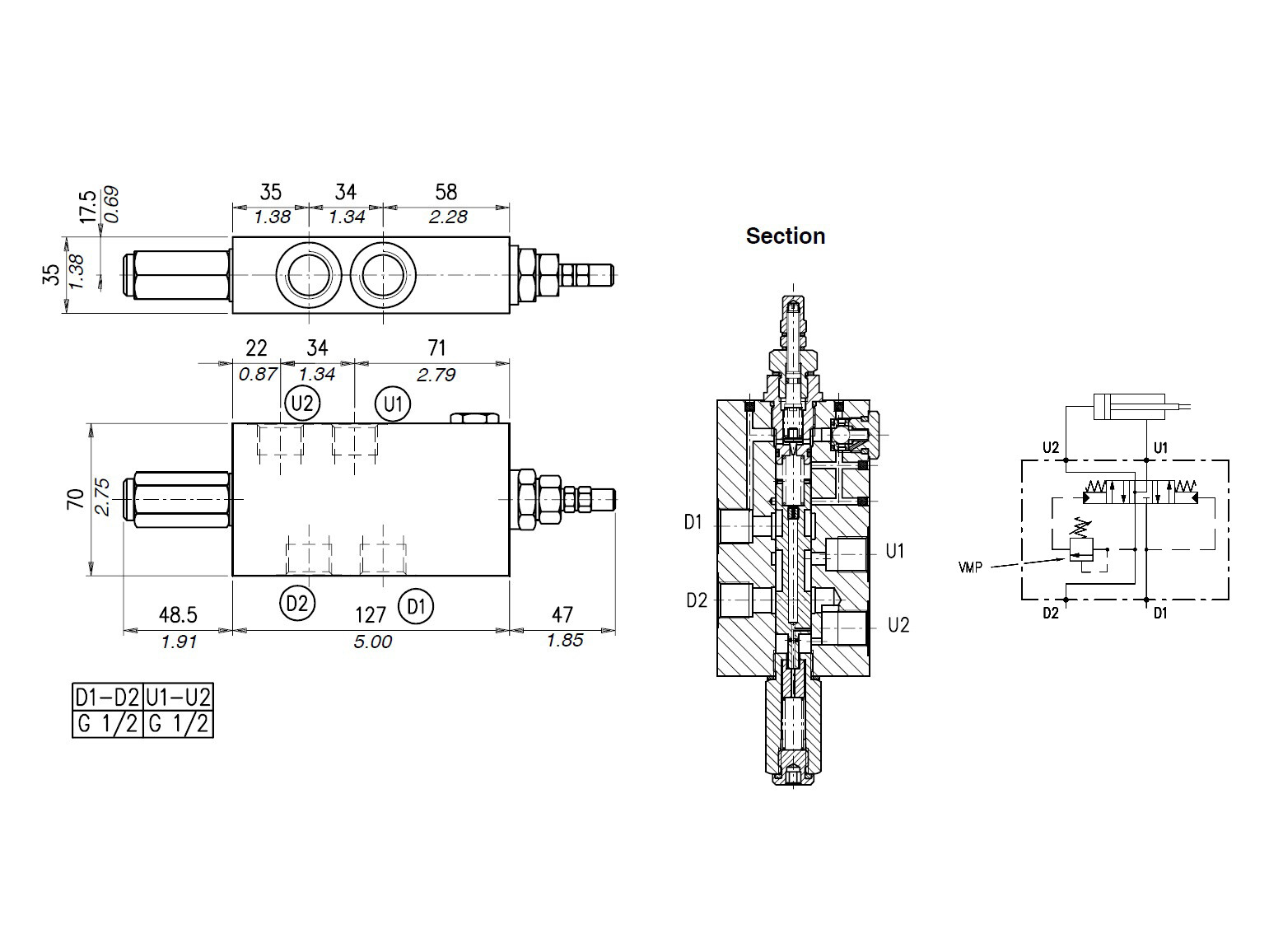

Regenerative valve from Walvoil. Regenereates the oil from the output-port on a cylinder by leading this to the inlet side until a preset pressure is reached. By doing so a higher cylinder movement speed is achieved. When the preset pressure is reached, the valve directs the output oil back to the directional valve instead and via this to the oiltank. This lowers the cylinders movement speed to the normal value. Well-suited for mounting on wood splitters.

Partnumber:
1245033101

Package size:
0 pcs

Min. order quantity is:
1 pcs
Brand Name
Walvoil

Contamination level max.
18/16/13 - ISO 4406

Flow rate nominal LMin
50 lpm

Material
Steel

Model code
VRCL-12/TS.S/ac

Oil viscocity recommended
10 - 200 cSt

Pressure max.
350 bar

Pressure setting max.
220 bar

Pressure setting min.
50 bar

Temperature max.
+80 °C

Temperature min.
-20 °C

Thread
G 1/2 BSP

Valve type
Regenerative valve
Package size
0 pcs

Barcode
5704334589662

Gross weight
2,30 Kg

Net weight
2,30 Kg

Country of origin
ITA

Intrastat code
84812010

Regenerative valve from Walvoil. Regenereates the oil from the output-port on a cylinder by leading this to the inlet side until a preset pressure is reached. By doing so a higher cylinder movement speed is achieved. When the preset pressure is reached, the valve directs the output oil back to the directional valve instead and via this to the oiltank. This lowers the cylinders movement speed to the normal value. Well-suited for mounting on wood splitters.
