3/8" Shuttle valve
Shuttle valve for selecting between two independent pressure lines and passing the higher-pressure signal to the outlet. Commonly used where one output must be fed from either of two sources while keeping the lines separated.
The valve has BSPP threads and is designed for inline installation in hydraulic circuits where compact dimensions and defined flow and pressure limits are required.
Typical Applications
- Selecting the higher pressure signal from two hydraulic lines
- Feeding one outlet from two alternative pressure sources
Varenummer:
VU2P-38
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
OM Oleodinamica Marchesini

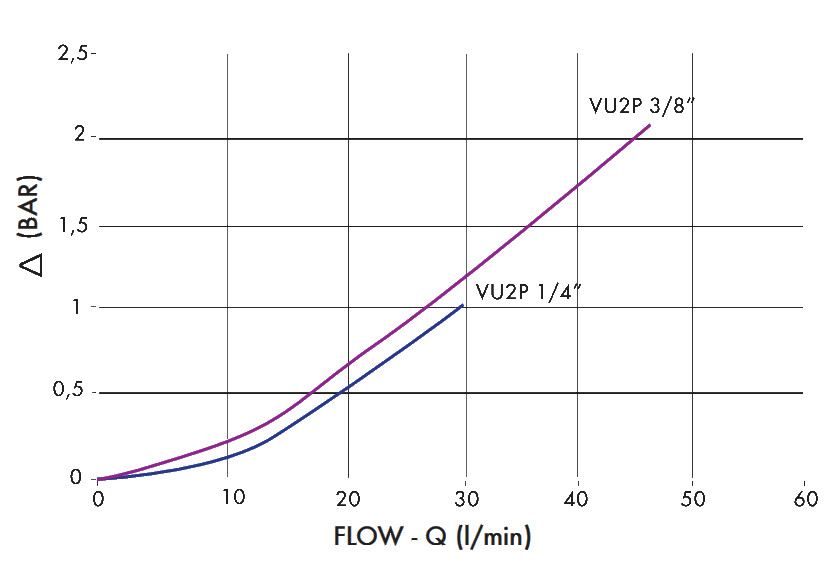

Flow max.
45 lpm
Flowrate nominal LMin
45 lpm
H
40 mm
L
60 mm
L1
104 mm
L2
9 mm
L3
44 mm
Material
Steel
Oil Temperature Recommended
50 °C
Oil viscocity recommended
30 cSt
P
3/8 BSP
Pressure max.
350 bar
S
30 mm
Sealing material
NBR
Surface treatment
Zinc-plated
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread
G 3/8 BSP
U
3/8 BSP
ØD
8,5 mm
Pakke str.
1 pcs
Stregkode
5704334776772
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
Shuttle valve for selecting between two independent pressure lines and passing the higher-pressure signal to the outlet. Commonly used where one output must be fed from either of two sources while keeping the lines separated.
The valve has BSPP threads and is designed for inline installation in hydraulic circuits where compact dimensions and defined flow and pressure limits are required.
Typical Applications
- Selecting the higher pressure signal from two hydraulic lines
- Feeding one outlet from two alternative pressure sources
