3820SNABBKOPPLING HANE 3/8* ers av 185553

Quick-coupling with ball-lock.

With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.

Partnumber:
T3820

Package size:
0 pcs

Min. order quantity is:
1 pcs

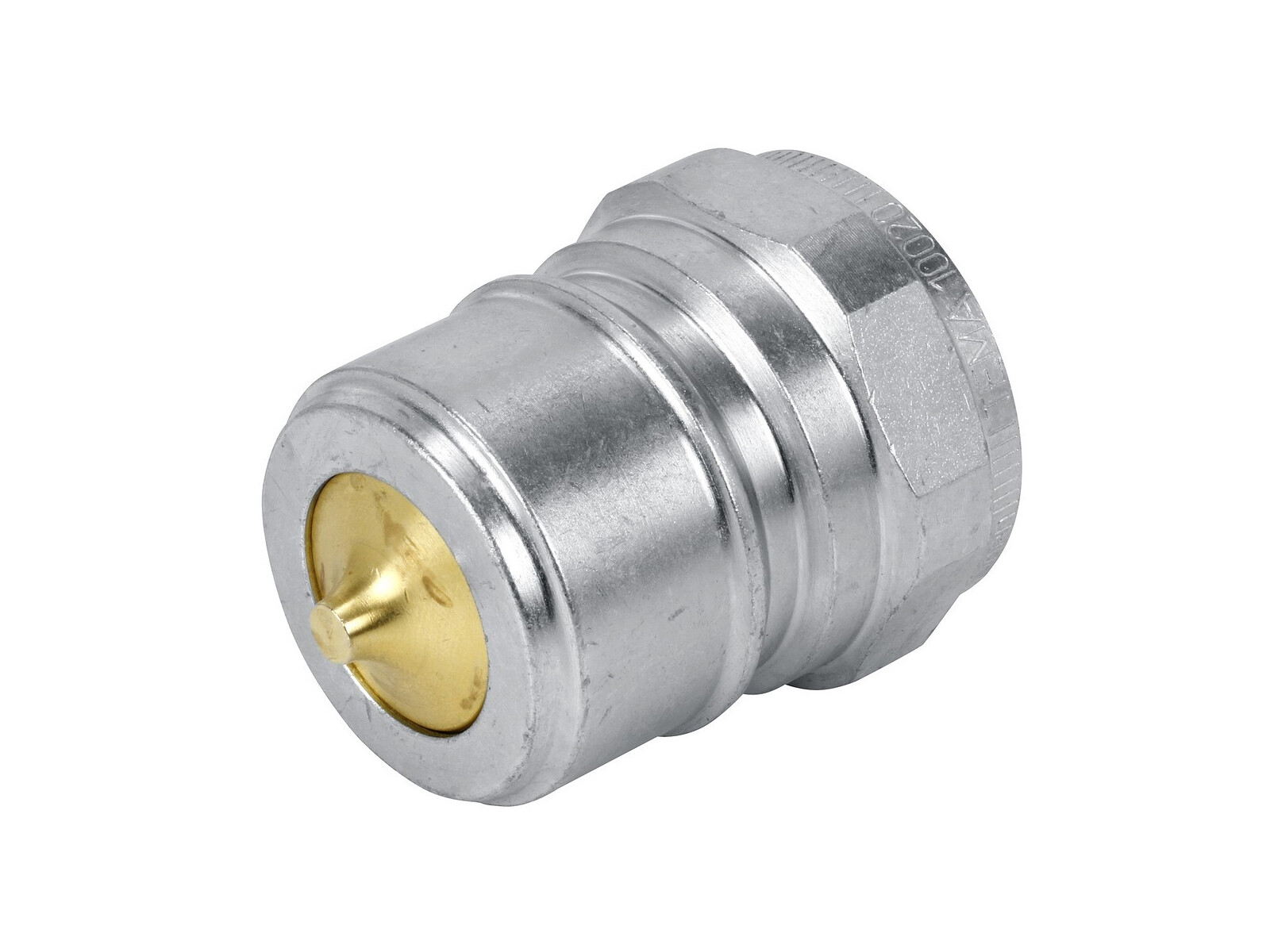

Coupling male - Nordic - DN10 - G3/8" - steel
Partnumber: 3820S
Brand Name
Hydraspecma

DN
10 mm

Dimension C
42 mm

Dimension E
G 3/8 BSP

Dimension Y
22 mm

Flow rate nominal LMin
36 lpm

Model code
3820

Pressure eliminator
No

Pressure max.
350 bar

Pressure max. connected
350 bar

Sealing material
NBR

Size
3/8 "

Temperature max.
+100 °C

Temperature min.
-30 °C

Thread inner
G 3/8 BSP
Package size
0 pcs

Barcode
5704334116608

Gross weight
0,06 Kg

Net weight
0,06 Kg

Country of origin
swe

Intrastat code
84812010

Quick-coupling with ball-lock.

With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.
