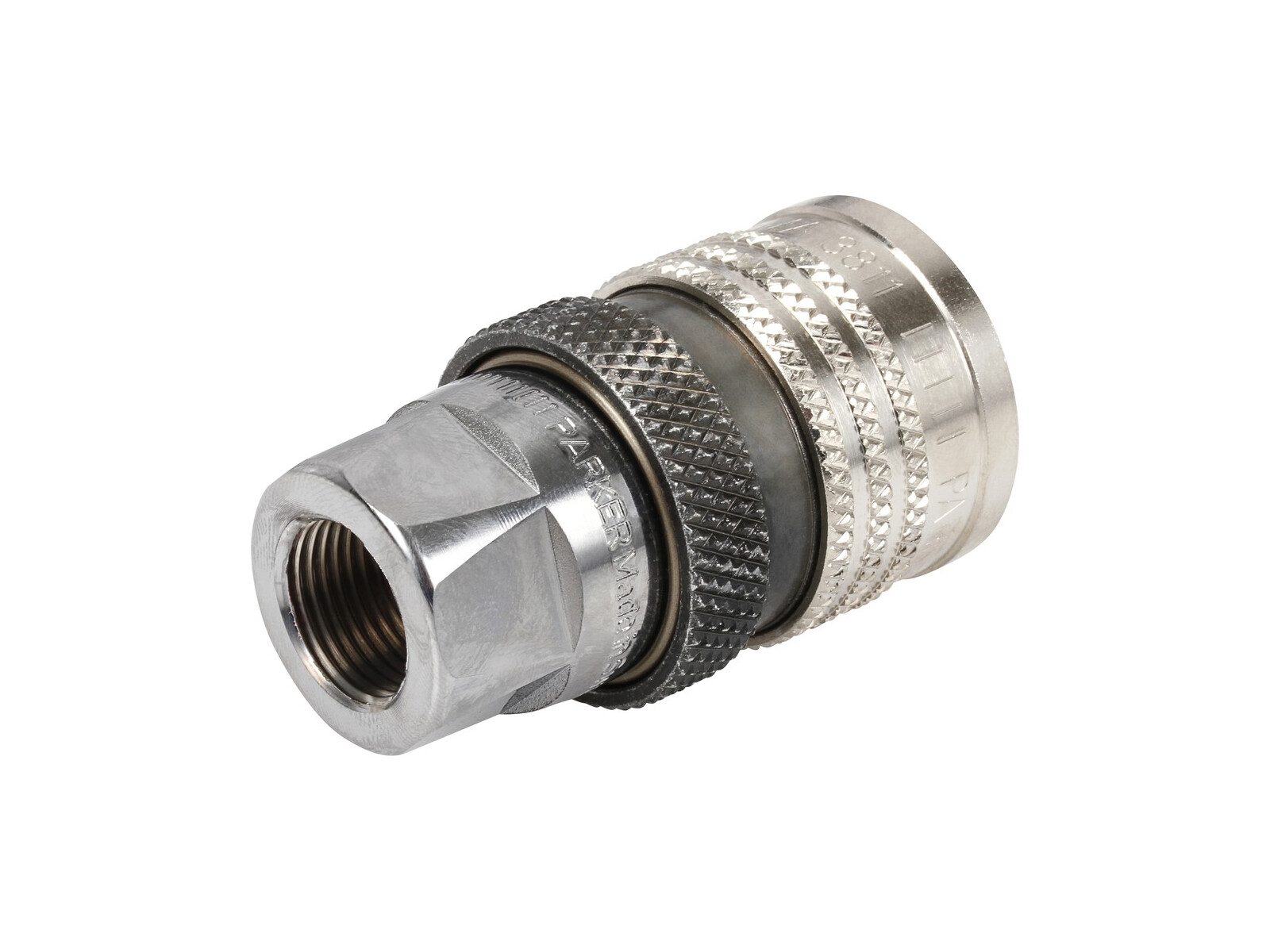

SNABBKOPPLING TEMA G3/8
Quick-coupling with ball-lock.
With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.
Partnumber:
T3810
Package size:
0 pcs
Min. order quantity is:
1 pcs
If you order this item, then
3810S
will be ordered instead.
Brand Name
Hydraspecma
DN
10 mm
Dimension A
G 3/8 BSP
Dimension B
60 mm
Dimension D
34 mm
Dimension X
24 mm
Flow rate nominal LMin
36 lpm
Model code
3810
Pressure eliminator
No
Pressure max.
350 bar
Pressure max. connected
350 bar
Sealing material
NBR
Size
3/8 "
Temperature max.
+100 °C
Temperature min.
-30 °C
Thread inner
G 3/8 BSP
Package size
0 pcs
Barcode
5704334116554
Gross weight
0,22 Kg
Net weight
0,22 Kg
Country of origin
swe
Intrastat code
84812010
Quick-coupling with ball-lock.
With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.
