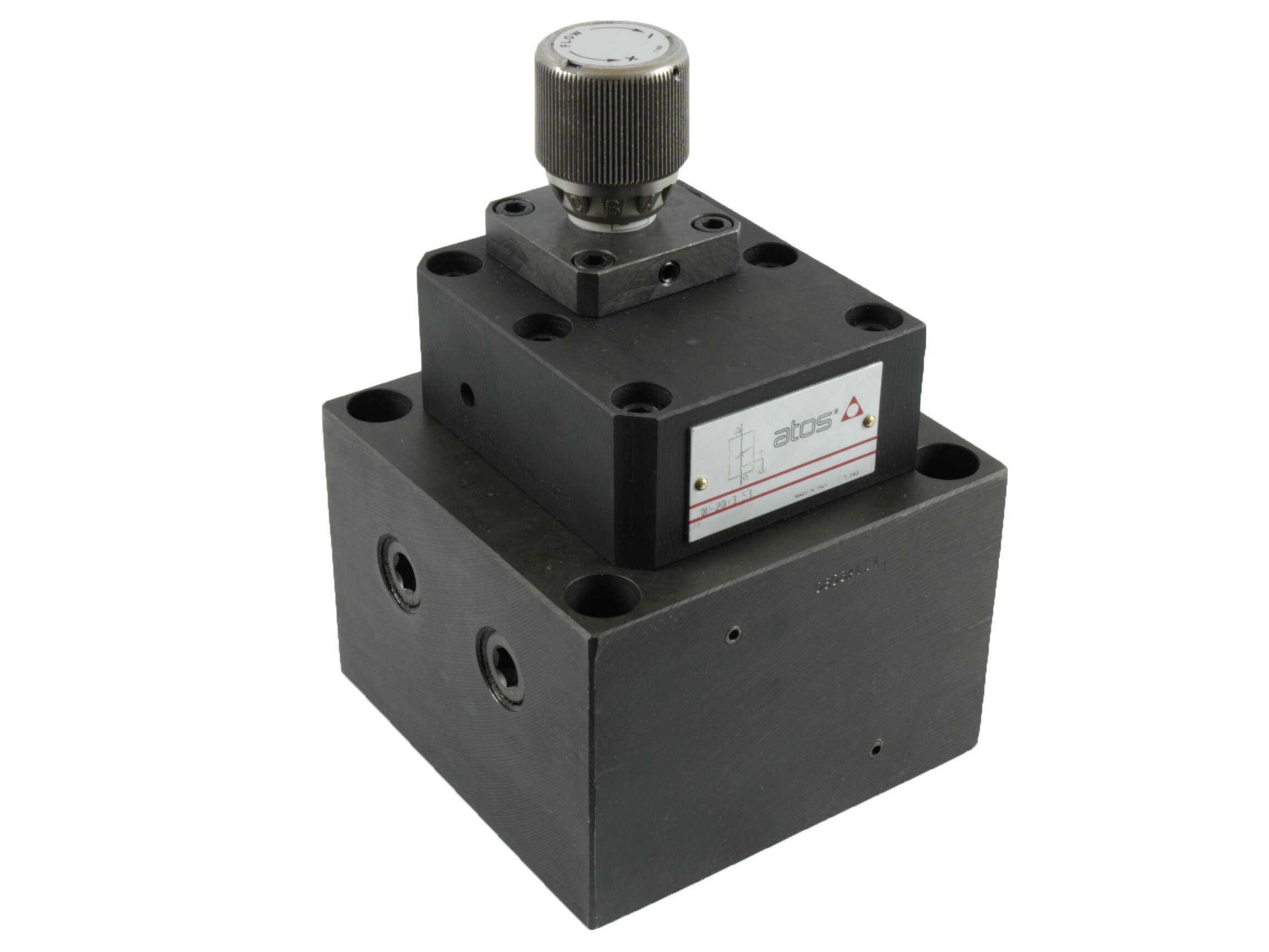

Atos flow control valve 3way pressure compensated 0-180 lpm

Atos flow control valve 3-way pressure compensated 0-180 lpm

Partnumber:
QV20/3

Package size:
0 pcs

Min. order quantity is:
1 pcs
Brand Name
Atos

Comment
CETOP7

Contamination level max.
-/19/16 - ISO 4406

Flow max. regulated
180 lpm

Flow min. regulated
120 cm3

Flow rate nominal LMin
180 lpm

Inlet flow max.
180 lpm

Lock
No

Model code
QV-20/3

Number of ways
3

Oil viscocity recommended
15 - 100 cSt

Pressure compensated
Yes

Pressure max.
250 bar

Sealing material
NBR

Temperature max.
+60 °C

Temperature min.
-20 °C

Valve type
Throttlevalve
Package size
0 pcs

Barcode
5704295338835

Gross weight
Kg

Net weight
Kg

Country of origin
ITA

Intrastat code
84812010

Atos flow control valve 3-way pressure compensated 0-180 lpm
