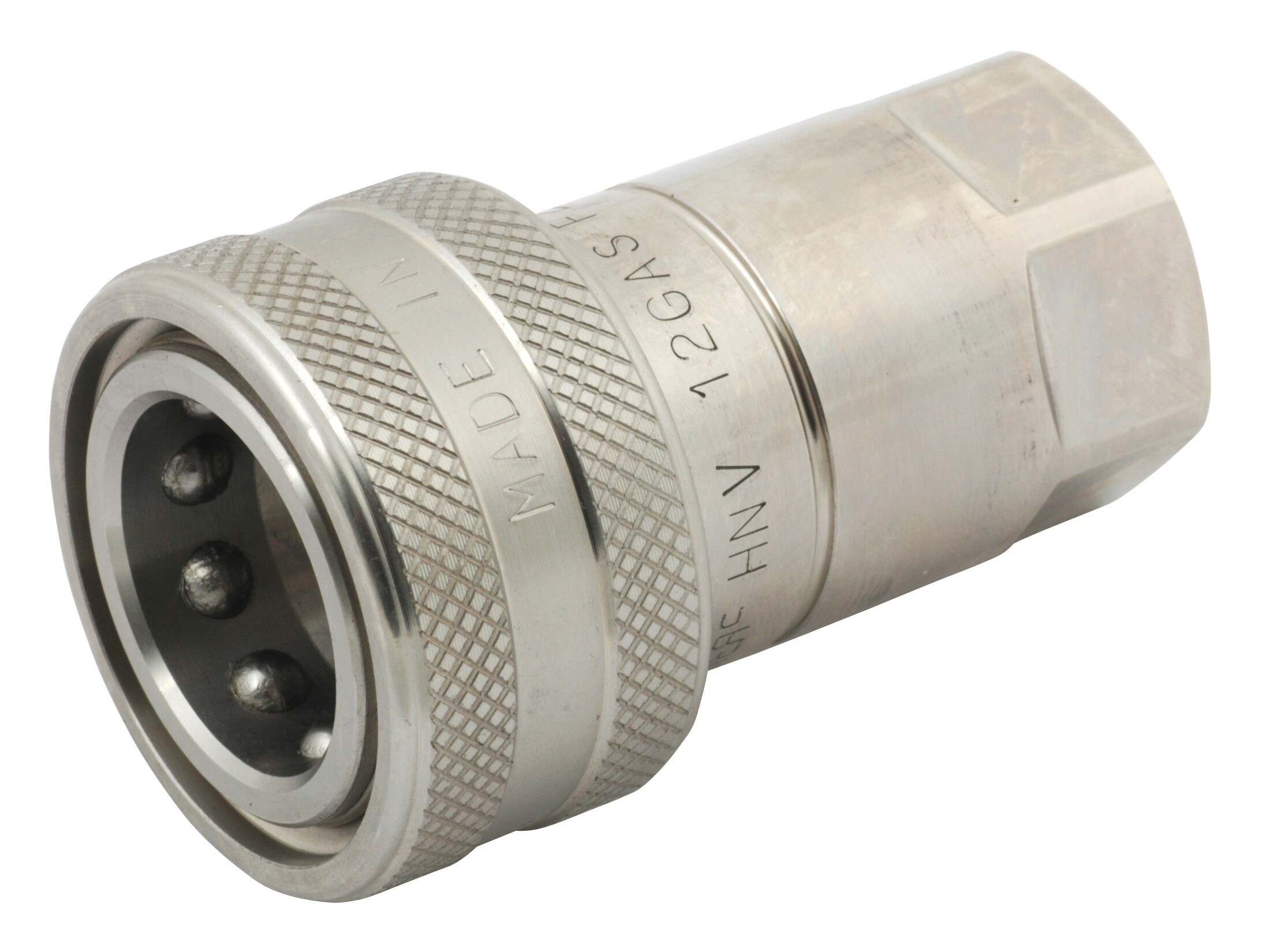

Coupling female HNV (ISO-B) - DN12 - 1/2"BSP - AISI316
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
Brand Name
Faster
DN
12.5 mm
Dimension A
G 1/2 BSP
Dimension B
72 mm
Dimension D
44 mm
Dimension X
30 mm
Flow rate nominal LMin
60 lpm
ISO size
12.5
Material
Stainless steel
Model code
HNV 12 GAS F 2V
Pressure max.
320 bar
Sealing material
FKM/FPM (Viton®)
Size
1/2 "
Standard ISO
ISO 7241-1-B
Temperature max.
+200 °C
Temperature min.
-20 °C
Thread inner
G 1/2 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334228349
Bruttovikt
0,38 Kg
Nettovikt
0,38 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
