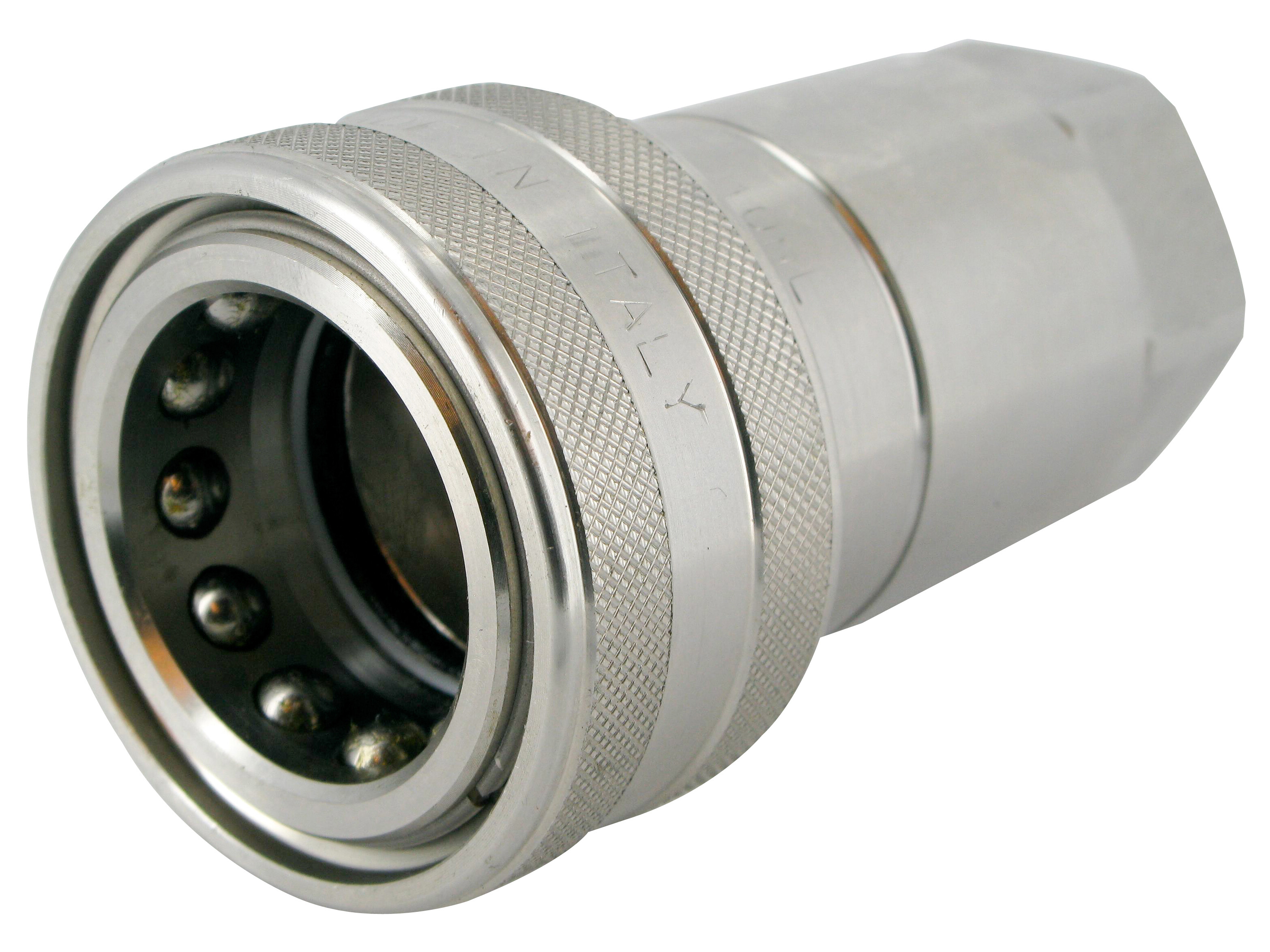

Coupling female HNV (ISO-B) - DN20 - 3/4"BSP - AISI316
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
Varenummer:
HNV34GASF2
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Faster
DN
20 mm
Dimension A
G 3/4 BSP
Dimension B
89 mm
Dimension D
52 mm
Dimension X
36 mm
Flow rate nominal LMin
110 lpm
ISO size
20
Material
Stainless steel
Model code
HNV 34 GAS F 2V
Pressure max.
250 bar
Sealing material
FKM/FPM (Viton®)
Size
3/4 "
Standard ISO
ISO 7241-1-B
Temperature max.
+200 °C
Temperature min.
-20 °C
Thread inner
G 3/4 BSP
Package size
0 pcs
Barcode
5704334230649
Gross weight
0,64 Kg
Net weight
0,64 Kg
Country of origin
ITA
Intrastat code
84812010
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
