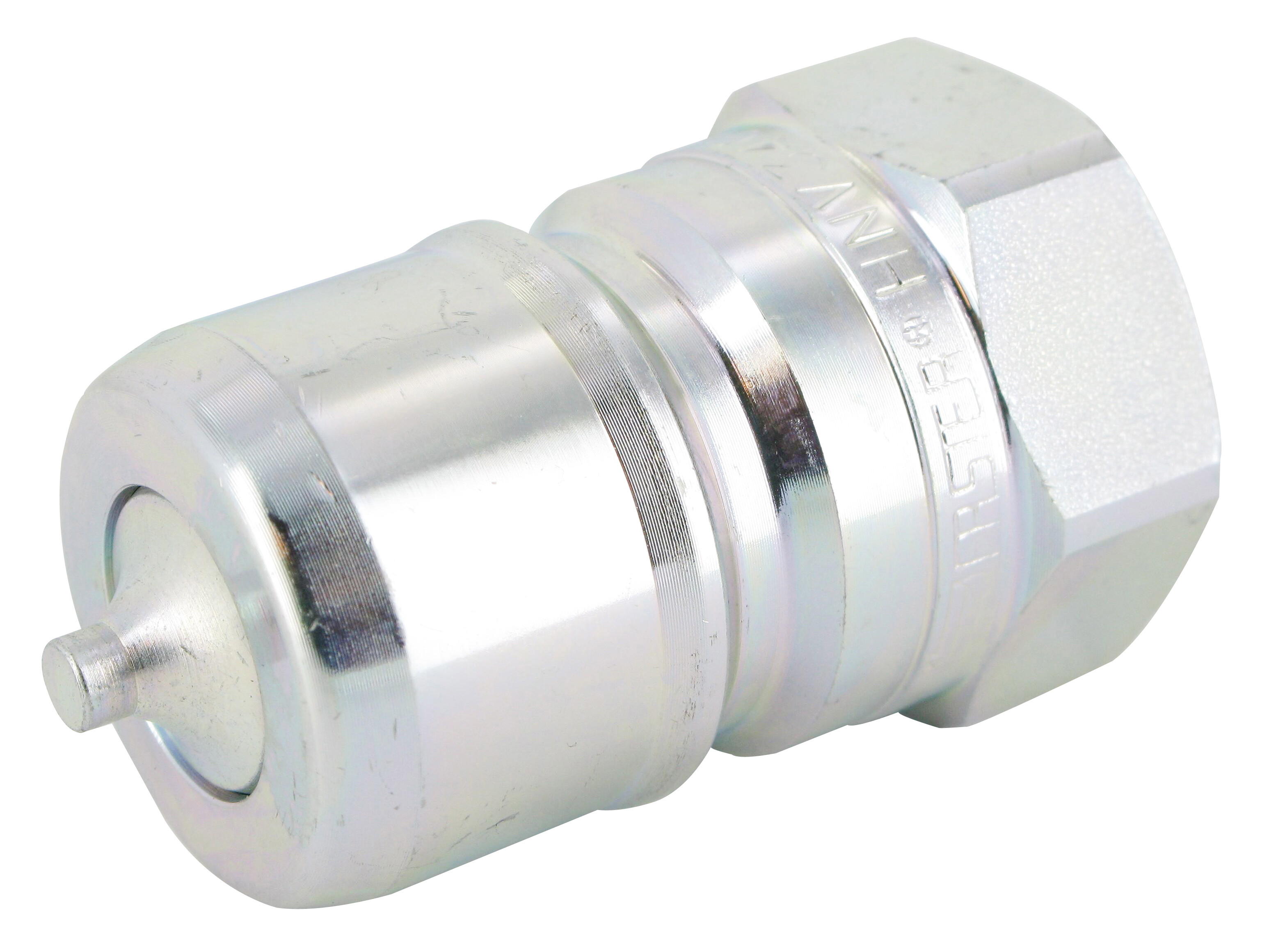

Coupling male HNV (ISO-B) - DN20 - 3/4"BSP
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
Partnumber:
HNV34GASM
Package size:
0 pcs
Min. order quantity is:
1 pcs
C
55 mm
DN
20 mm
E
G 3/4 BSP
Flow Nominel
190 lpm
Gevind indvendig
G 3/4 BSP
H
31,4 mm
ISO størrelse
20
Korrosions resistens
500 hours salt spray ISO 9227
Materiale
Steel
Model kode
HNV 34 GAS M
Mærke navn
Faster
Overfladebehandling
Zinc coating (CR III)
Pakningsmateriale
NBR
Standard ISO
ISO 7241-1-B
Størrelse
3/4 "
Temperatur maks.
+125 °C
Temperatur min.
-25 °C
Tryk maks.
250 bar
Y
34 mm
Förpackningsstorlek
0 pcs
Streckkod
5704334230595
Bruttovikt
0,12 Kg
Nettovikt
0,12 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
