Swivel 1/2 BSP 300 bar Hydraulics
Swivels are mainly used when hoses need to be rotated under pressure. By fitting swivels, rotation of the hoses can be avoided. Keep in mind that 7 ° rotation of a hose can shorten the life of the line by 90%._x000D_ Swivels can be used for slow rotation or oscillating movement. To avoid unnecessary wear of the swivels, radial loads must be avoided._x000D_ The 9000/9100 series is a cost-effective choice when you want to avoid downtime_x000D_ and reliability is paramount.
Artikelnummer:
46BP08-E51
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs

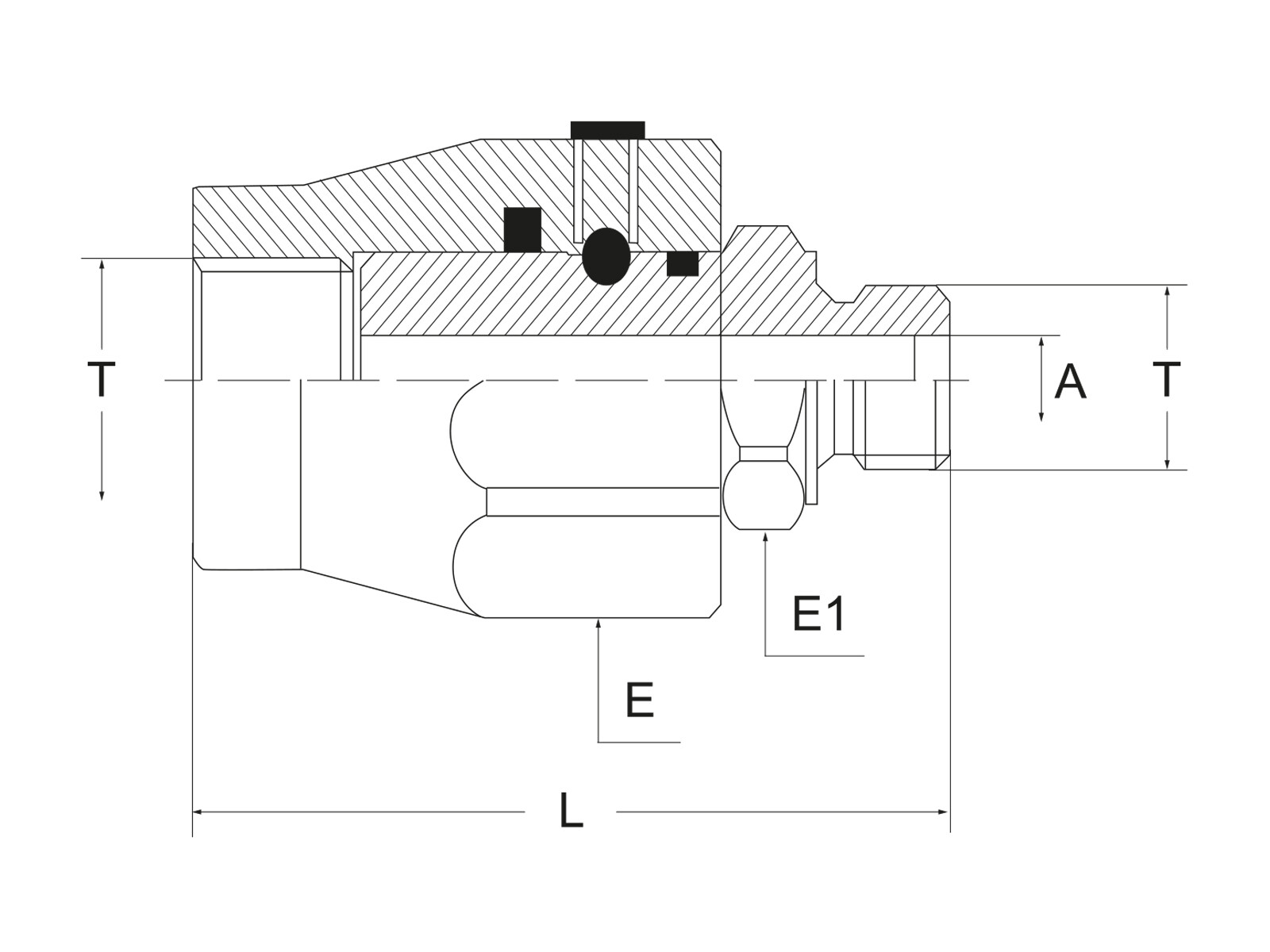

Dimension A
11.5 mm
Dimension E
36 mm
Dimension E1
27 mm
Dimension L
71.5 mm
Gevind indvendig
G 1/2 BSP
Gevind udvendig
G 1/2 BSP
Længde
71.5 mm
Materiale
Steel
Model kode
9000-08
Mærke navn
I.M.M Hydraulics
Overfladebehandling
Electro-galvanized / White chromatized
Rotationshastighed maks.
6 rpm
Temperatur maks.
+100 °C
Temperatur min.
-20 °C
Tryk maks.
300 bar
Tryk maks. roterende
150 bar
Tryk statisk maks.
300 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295467092
Gross weight
0,34 Kg
Net weight
0,34 Kg
Country of origin
ITA
Intrastat code
73071110
Swivels are mainly used when hoses need to be rotated under pressure. By fitting swivels, rotation of the hoses can be avoided. Keep in mind that 7 ° rotation of a hose can shorten the life of the line by 90%._x000D_ Swivels can be used for slow rotation or oscillating movement. To avoid unnecessary wear of the swivels, radial loads must be avoided._x000D_ The 9000/9100 series is a cost-effective choice when you want to avoid downtime_x000D_ and reliability is paramount.
