Svivel straight Male x female BSPP 1/2'' WP 430 BAR
\ufeff
- Taim's patented ball-bearing-free rotary connectors dampen torsional movements
- Protect hoses from premature wear and extend their service life.
- Improve the reliability of your hydraulic system with Taimi's Rotary connectors.
Partnumber:
SZ-P08M-P08F
Package size:
1 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Faster
Corrosion resistance
350 hours salt spray ASTM B-117

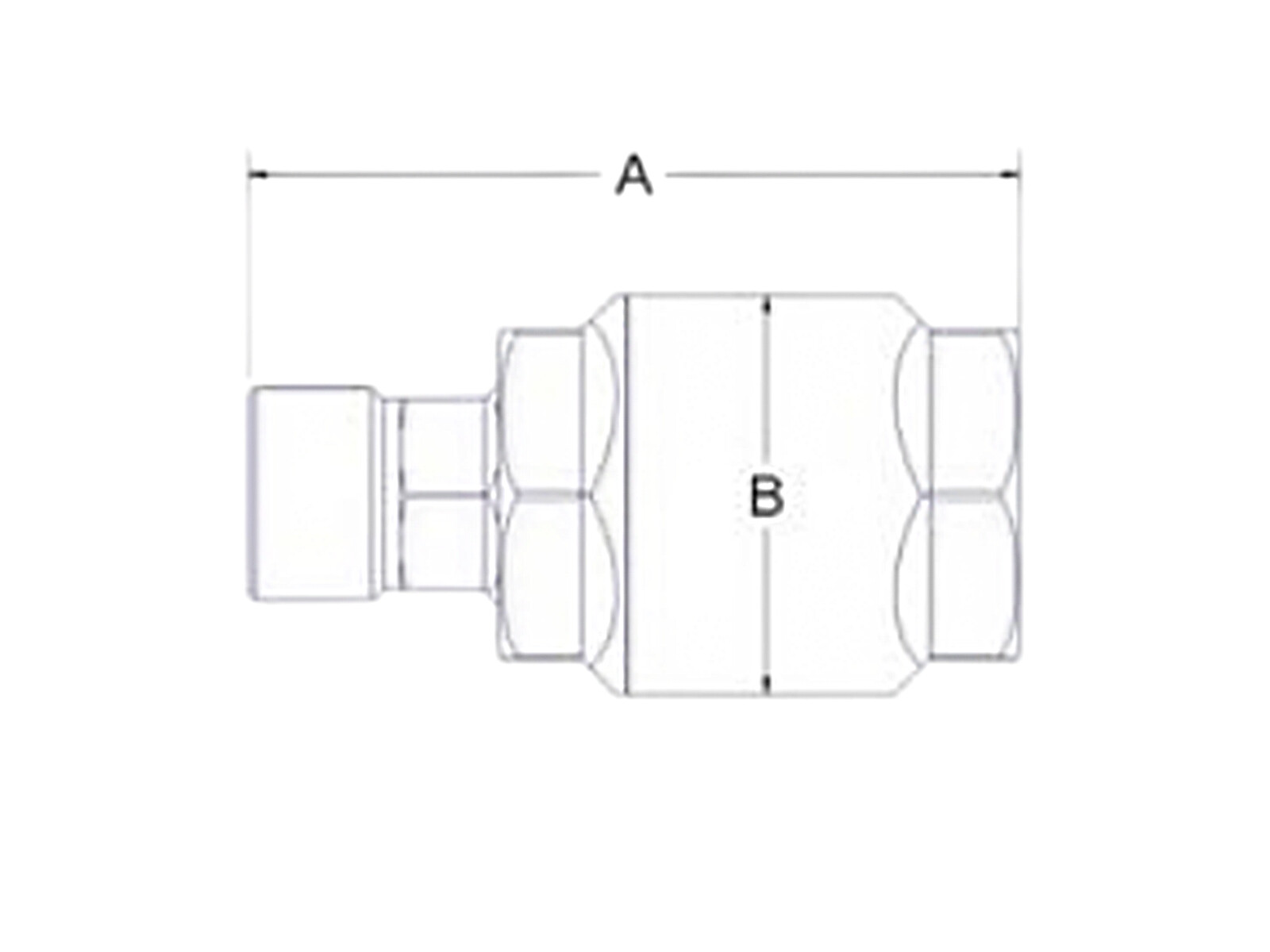

D
38,86 mm
E1
3/4
E2
1.5/16"
L
74,68 mm
Material
Steel
Pressure max.
430 bar
Sealing material
FKM/FPM (Viton®)
Surface treatment
White zinc plated
Temperature max.
+180 °C
Temperature min.
-40 °C
Thread inner
G 1/2 BSP
Thread outer
G 1/2 BSP
Package size
1 pcs
Barcode
5704334987123
Gross weight
Kg
Net weight
Kg
Country of origin
can
\ufeff
- Taim's patented ball-bearing-free rotary connectors dampen torsional movements
- Protect hoses from premature wear and extend their service life.
- Improve the reliability of your hydraulic system with Taimi's Rotary connectors.
