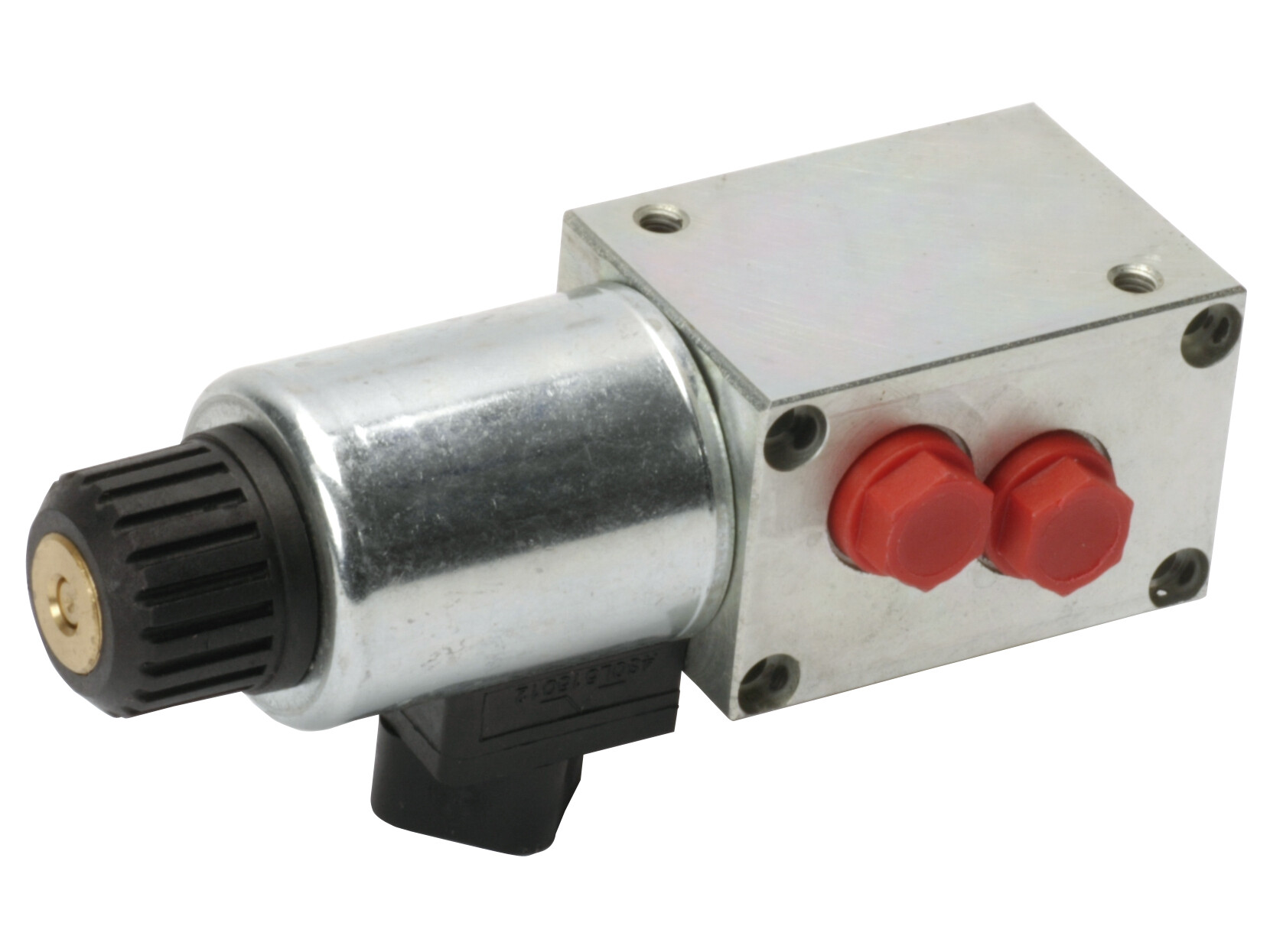

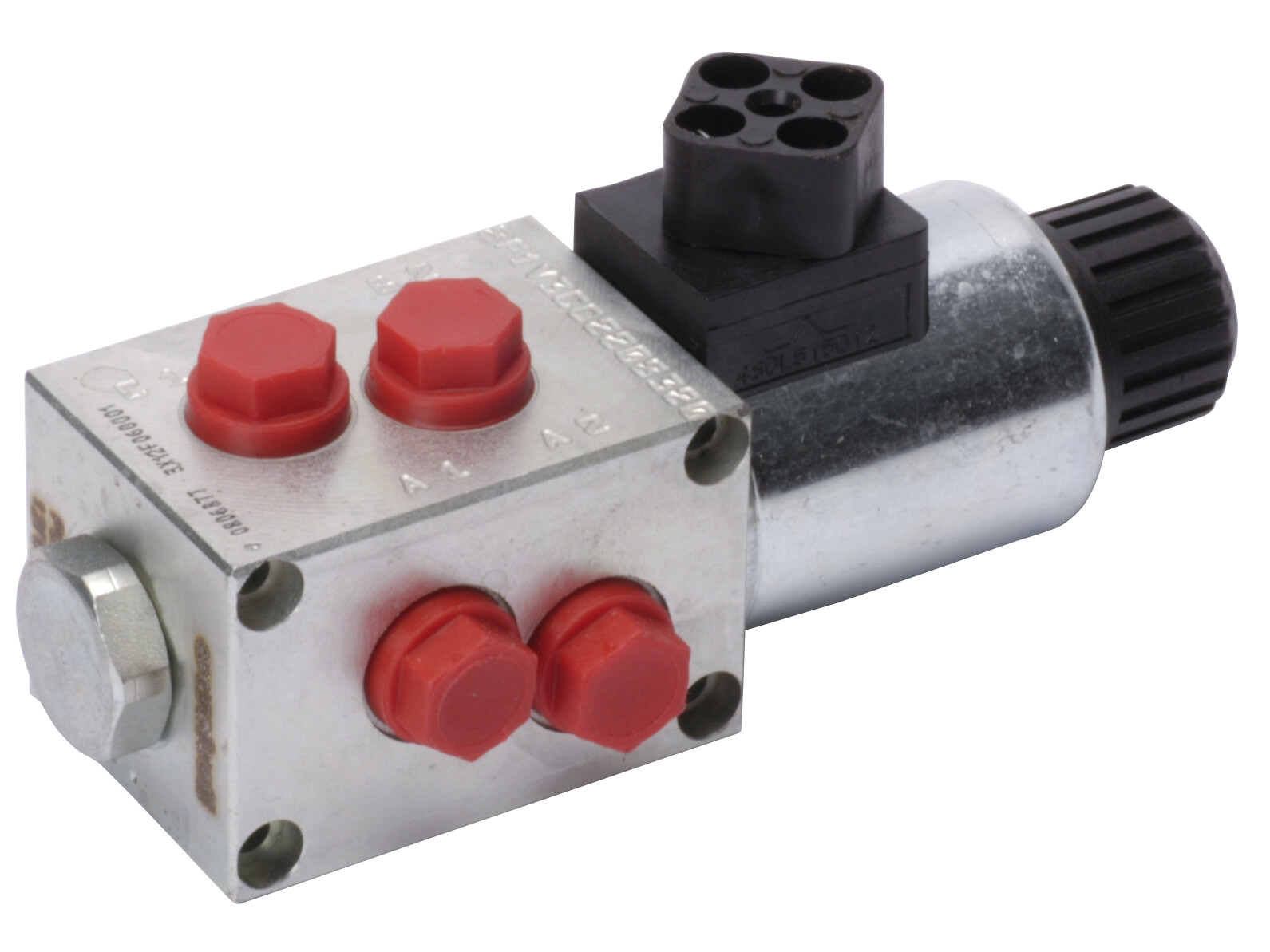

DFE080/6A18ES-W-201-12VDC Walvoil 6/2-way valve 1/4

Walvoil solenoid operated selector valve "Spool-type". With a 6-way selector valve it is possible to operate 2 hydraulic motors or 2 double acting cylinders with one 4-way directional valve.

Modification to external drain requires mounting kit, type5GIU*** (Must be ordered separately).

Hydraulic fluid: Mineral base oil.

Viscosity: 15 to 75 cSt (Min. 12 cSt and max. 75 cSt).

Temperature range: with NBR-seals: -20°C to +80°C. with FPM-seals: -20°C to +100°C.

Ambient temperature for working conditions: -20°C to +50°C.

Partnumber:
12F060001

Package size:
0 pcs

Min. order quantity is:
1 pcs
Solenoid D15 12VDC f/DFE052/DFE080
Varenummer: 4SOL515012
Ankarrör D15-2005 för DFE052
Varenummer: 5SOL515000
Brand Name
Walvoil

Contamination level max.
20/18/15 - ISO 4406

Current type
DC

Flow rate nominal LMin
25 lpm

Model
DFE80

Model code
DFE080/6A18ES-W-201-12VDC

Number of ways/positions
6/2

Pressure max.
200 bar

Pressure without drain max.
200 bar

Temperature ambient max.
+50 °C

Temperature max.
+80 °C

Temperature min.
-20 °C

Temperature working fluid max.
+80 °C

Thread
G 1/4 BSP

Voltage
12 V
Pakke str.
0 pcs

Stregkode
5704295888545

Brutto vægt
1,62 Kg

Netto vægt
1,62 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

Walvoil solenoid operated selector valve "Spool-type". With a 6-way selector valve it is possible to operate 2 hydraulic motors or 2 double acting cylinders with one 4-way directional valve.

Modification to external drain requires mounting kit, type5GIU*** (Must be ordered separately).

Hydraulic fluid: Mineral base oil.

Viscosity: 15 to 75 cSt (Min. 12 cSt and max. 75 cSt).

Temperature range: with NBR-seals: -20°C to +80°C. with FPM-seals: -20°C to +100°C.

Ambient temperature for working conditions: -20°C to +50°C.
