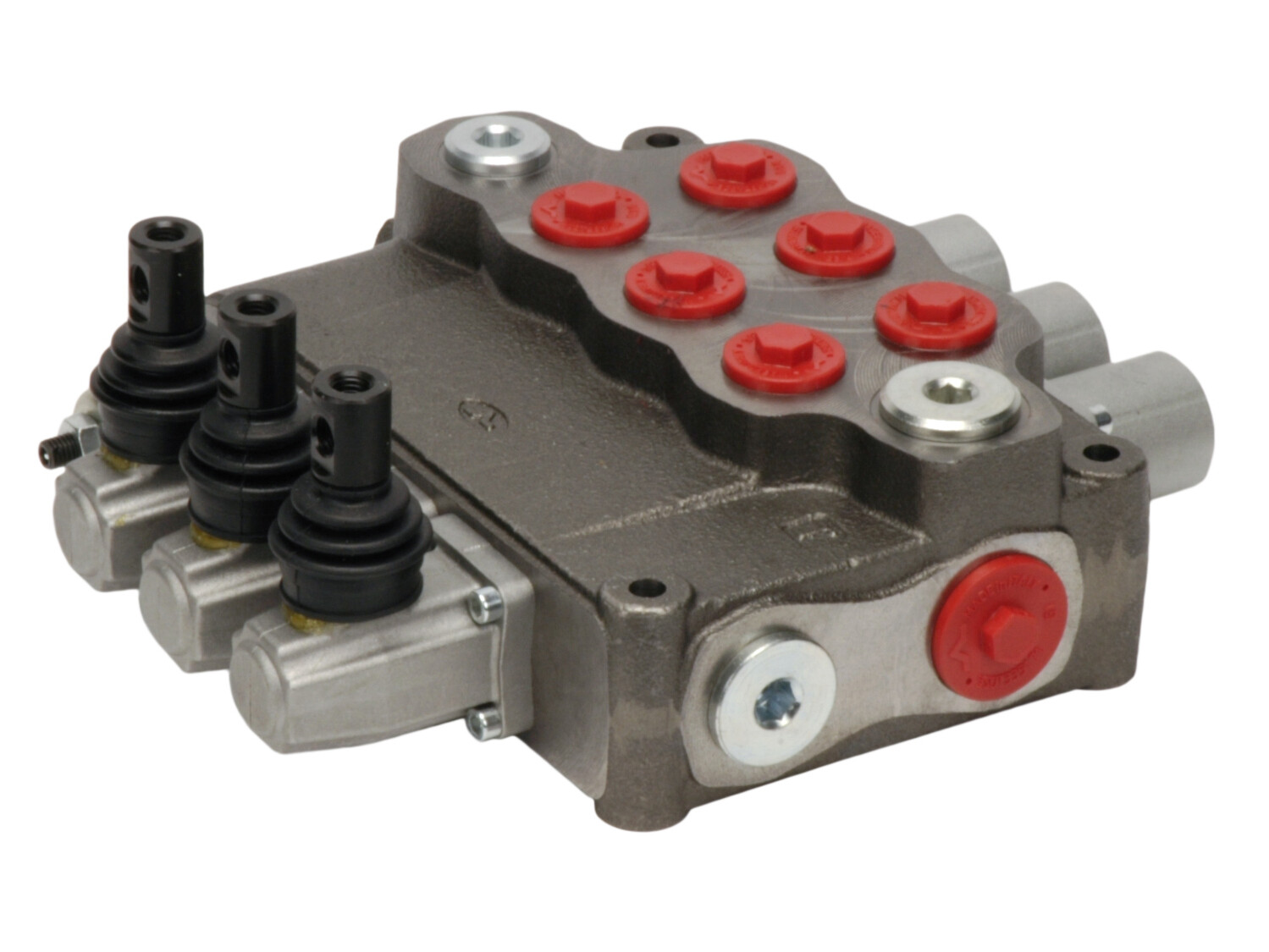

SD18/3-P(KG3-120)/18L/18L/18L/ AET directional valve
3-section SD18 monoblock directional valve with built-in pressure relief valve and 3 spools. Manually activated with handlevers.
Spool function: 3 x doubleacting with port A and B closed in neutral position. Spring centered.
Open center P to T in neutral position.
AET = Prepared for pressure carry-over (port plugged).
Partnumber:
106311001
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Flow rate nominal LMin
160 lpm
Lever
Exclusive
Material
Cast iron
Model code
SD18/3-P(KG3-120)/18L/18L/18L/AET
Number of sections
3
Oil viscocity recommended
12 - 400 cSt
Port P1
G 3/4 BSP
Port P2
G 3/4 BSP
Port T1
G 1 BSP
Port T2
G 1 BSP
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
250 bar
Pressure relief valve
Yes
Pressure setting max.
200 bar
Pressure setting min.
63 bar
Working ports
G 3/4 BSP
Package size
0 pcs
Barcode
5704334153023
Gross weight
23,40 Kg
Net weight
23,40 Kg
Country of origin
ITA
Intrastat code
84812010
3-section SD18 monoblock directional valve with built-in pressure relief valve and 3 spools. Manually activated with handlevers.
Spool function: 3 x doubleacting with port A and B closed in neutral position. Spring centered.
Open center P to T in neutral position.
AET = Prepared for pressure carry-over (port plugged).
