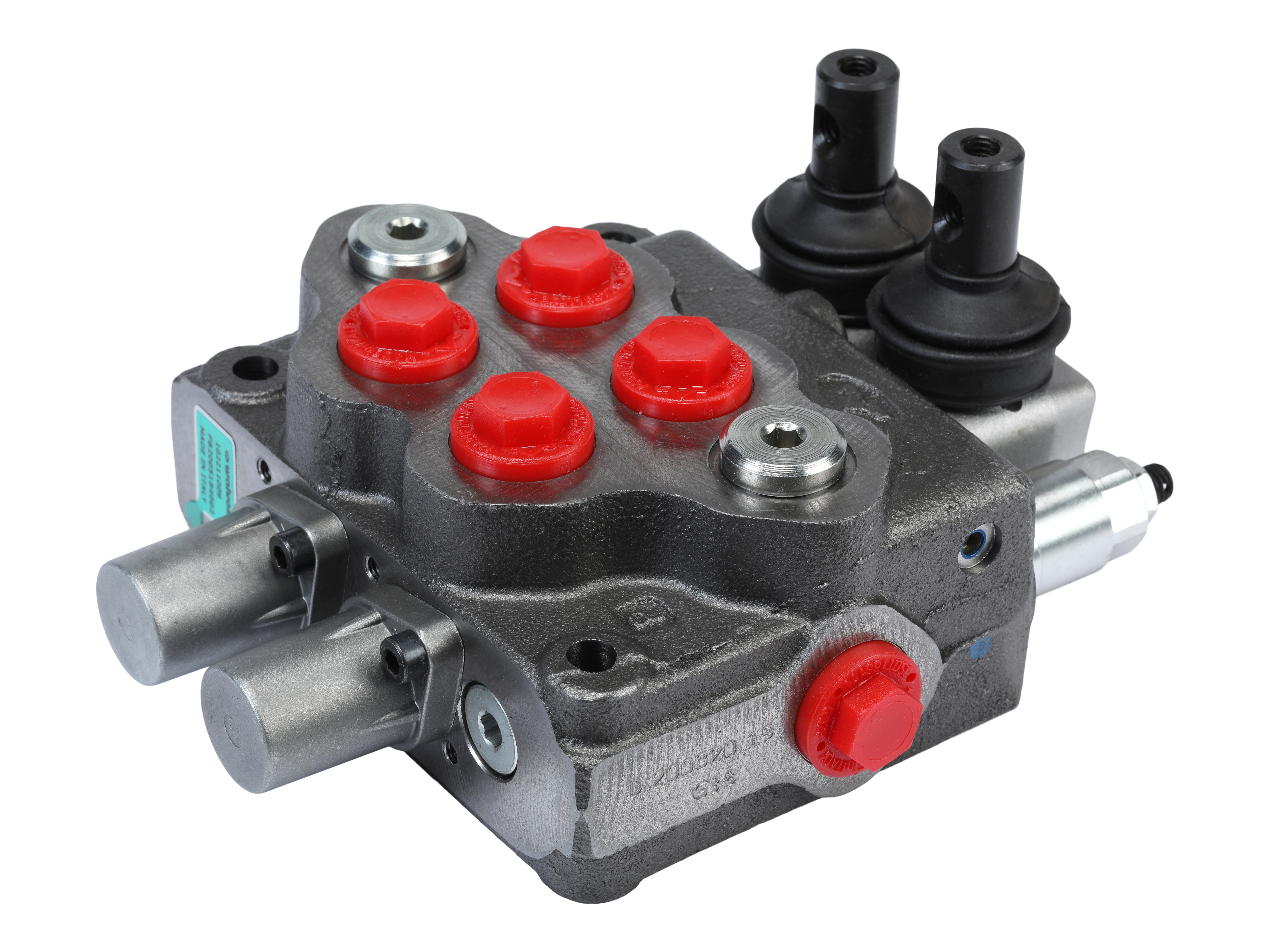

SD5/2-P(KG3-120)/28L/28L/AET Walvoil

2-section SD5 monoblock valve with built-in pressure relief valve and 2 spools in parallel. Manually activated

Spool function: 2 x double acting with port A and B open to T in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure carry-over (port plugged.

Partnumber:
102211009

Package size:
0 pcs

Min. order quantity is:
1 pcs
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Flow rate nominal LMin
45 lpm

Lever
Exclusive

Material
Cast iron

Model code
SD5/2-P(KG3-120)/28L/28L/AET

Number of sections
2

Oil viscocity recommended
12 - 400 cSt

Port P
G 3/8 BSP

Port T
G 3/8 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
315 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
63 bar

Working ports
G 3/8 BSP
Package size
0 pcs

Barcode
5704334536208

Gross weight
5,17 Kg

Net weight
5,17 Kg

Country of origin
ITA

Intrastat code
84812010

2-section SD5 monoblock valve with built-in pressure relief valve and 2 spools in parallel. Manually activated

Spool function: 2 x double acting with port A and B open to T in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure carry-over (port plugged.
