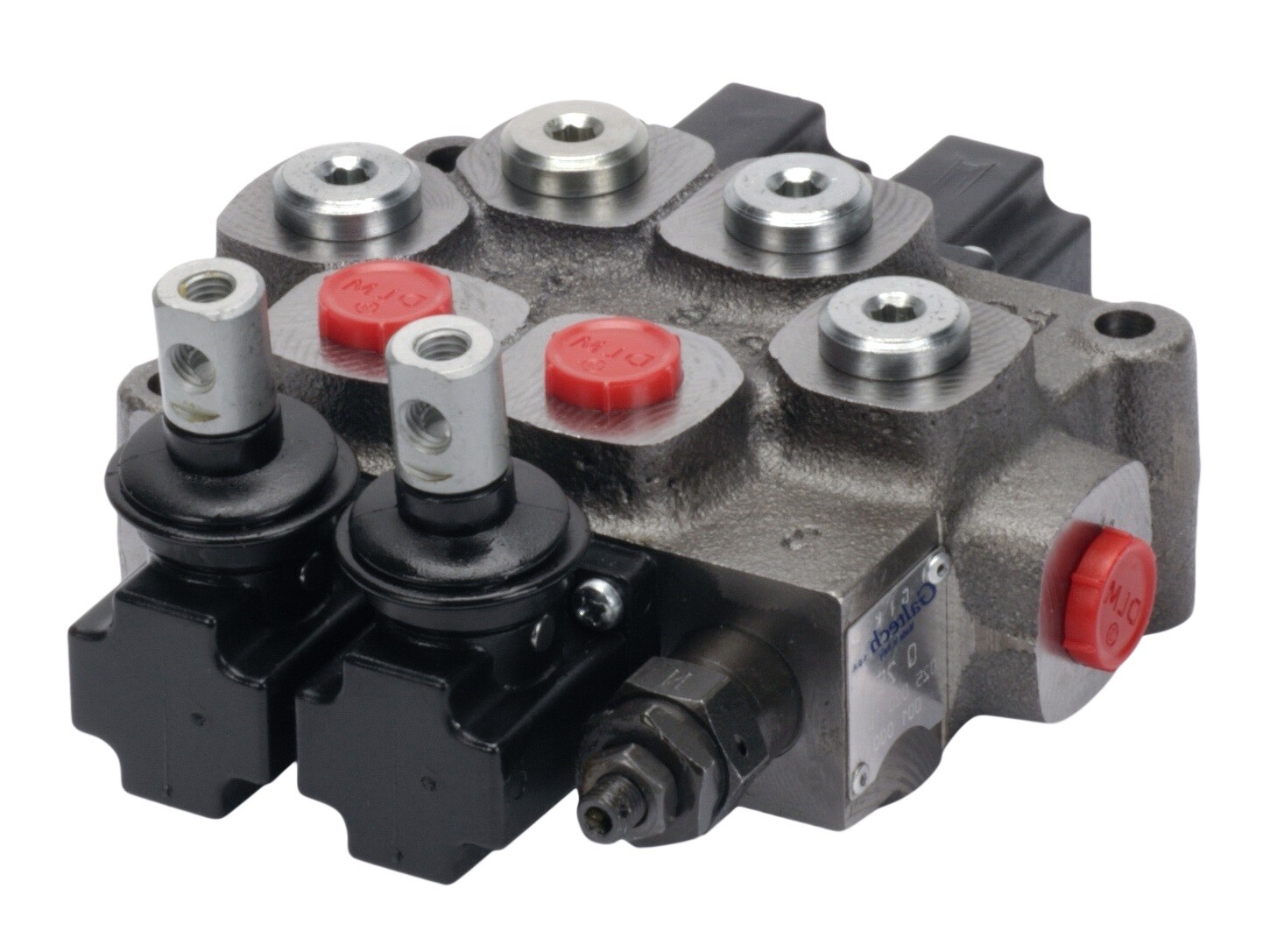

Q25M/2-F1S-2x101/A1/M1-F3D

2-section Q25 monoblock directional valve with built-in pressure relief valve. Manually activated

Spool function: 2 x single acting with port A and B closed in neutral position. Spring centered.

Open center port P to T in neutral position.

Partnumber:
025-2002

Package size:
0 pcs

Min. order quantity is:
1 pcs
Brand Name
Walvoil

Contamination level max.
16/14/12 - ISO 4406

Flow rate nominal LMin
30 lpm

Lever
Exclusive

Material
Cast iron

Model code
Q25M/2-F1S-2x101/A1/M1-F3D

Number of sections
2

Oil viscocity recommended
10 - 400 cSt

Port P1
G 3/8 BSP

Port P2
G 3/8 BSP

Port T1
G 1/2 BSP

Port T2
G 3/8 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
300 bar

Pressure relief valve
Yes

Pressure setting max.
280 bar

Pressure setting min.
30 bar

Temperature max.
+80 °C

Temperature min.
-30 °C

Working ports
G 3/8 BSP
Package size
0 pcs

Barcode
5704295201368

Gross weight
4,40 Kg

Net weight
4,40 Kg

Country of origin
ITA

Intrastat code
84812010

2-section Q25 monoblock directional valve with built-in pressure relief valve. Manually activated

Spool function: 2 x single acting with port A and B closed in neutral position. Spring centered.

Open center port P to T in neutral position.
