Q25M/4-F2S-4x111/A2/M1-F6D

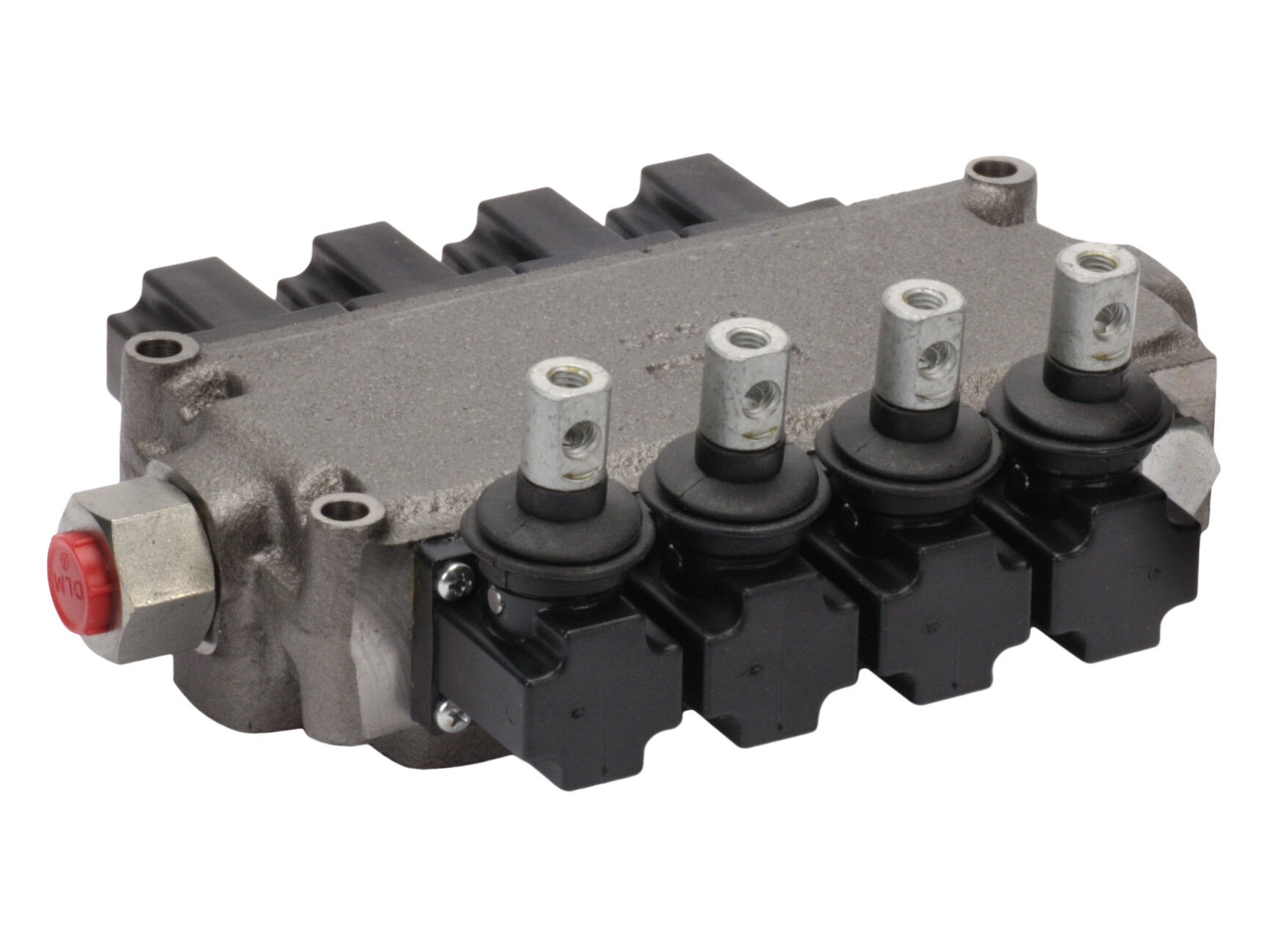

4-section Q25 monoblock directional valve without. Manually activated
Spool function: 4 x double acting with port A and B open to T in neutral position. Spring centered.
Handlever mounted rotated 180°.
Open center port P to T in neutral position.
With pressure carry-over
Varenummer:
025-4014
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Walvoil
Contamination level max.
16/14/12 - ISO 4406
Flow rate nominal LMin
35 lpm
Lever
Exclusive
Material
Cast iron
Model code
Q25M/4-F2S-4x111/A2/M1-F6D
Number of sections
4
Oil viscocity recommended
10 - 400 cSt
Port P1
G 3/8 BSP
Port P2
G 3/8 BSP
Port T1
G 3/8 BSP
Port T2
G 3/8 BSP
Pressure T max.
25 bar
Pressure carry-over
Yes
Pressure max.
300 bar
Pressure relief valve
No
Pressure setting max.
280 bar
Pressure setting min.
30 bar
Working ports
G 3/8 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295879444
Bruttovikt
7,07 Kg
Nettovikt
7,07 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
4-section Q25 monoblock directional valve without. Manually activated
Spool function: 4 x double acting with port A and B open to T in neutral position. Spring centered.
Handlever mounted rotated 180°.
Open center port P to T in neutral position.
With pressure carry-over
