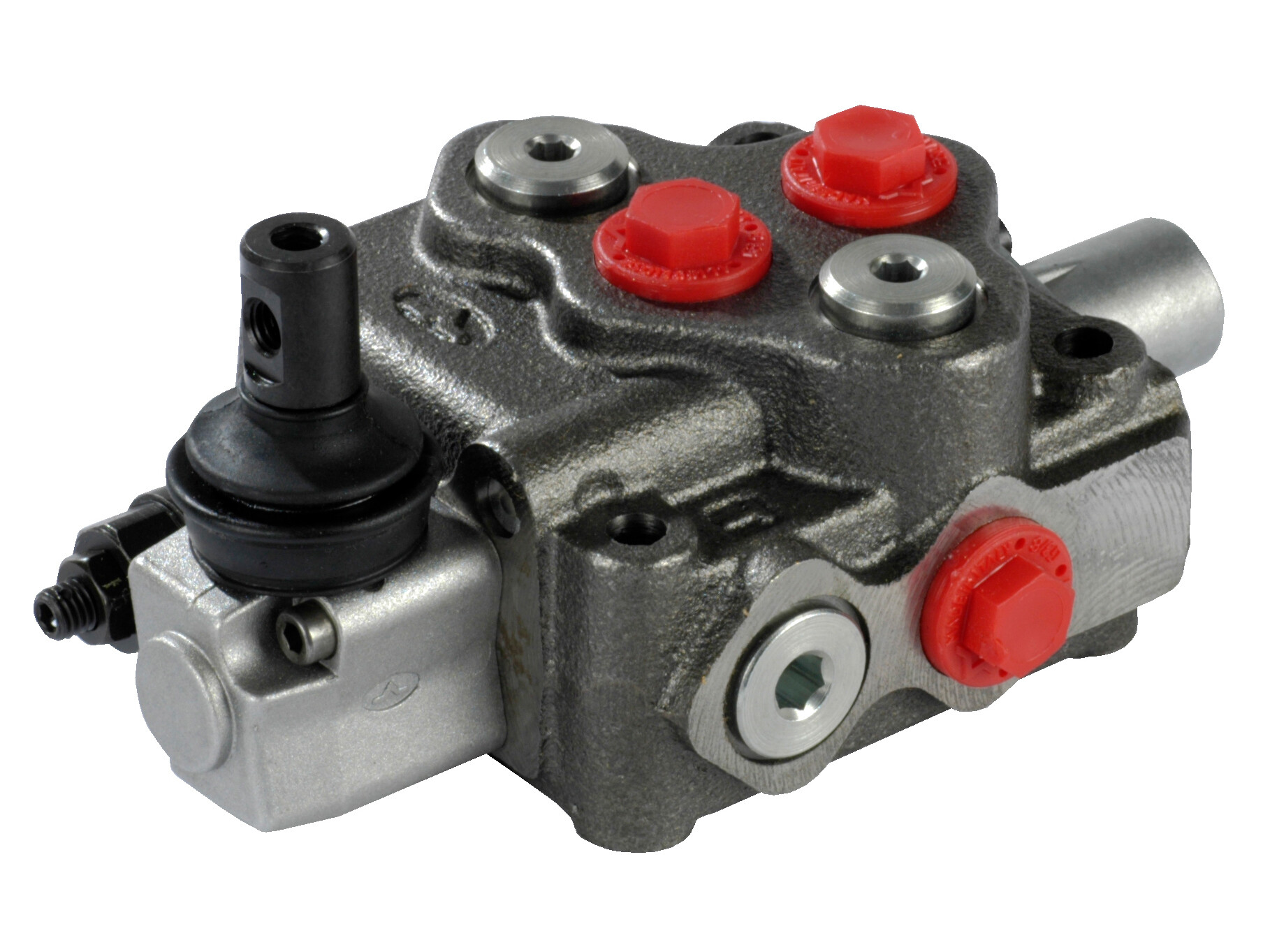

SD5/1-P(KG3-120)/28L/AET Walvoil
1-section SD5 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated
Spool function: Double acting with port A and B to T in neutral position. Spring centered.
Open center P to T in neutral position.
AET = Prepared for pressure carry-over (port plugged).
Artikelnummer:
102131003
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Flow rate nominal LMin
45 lpm
Lever
Exclusive
Material
Cast iron
Model code
SD5/1-P(KG3-120)/28L/AET
Number of sections
1
Oil viscocity recommended
12 - 400 cSt
Port P
G 3/8 BSP
Port T
G 3/8 BSP
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
315 bar
Pressure relief valve
Yes
Pressure setting max.
200 bar
Pressure setting min.
63 bar
Working ports
G 3/8 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334290865
Bruttovikt
3,63 Kg
Nettovikt
3,63 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
1-section SD5 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated
Spool function: Double acting with port A and B to T in neutral position. Spring centered.
Open center P to T in neutral position.
AET = Prepared for pressure carry-over (port plugged).
