Q75M/3-F1S-2x103/A1/M1- 101/A1/M1-F3D

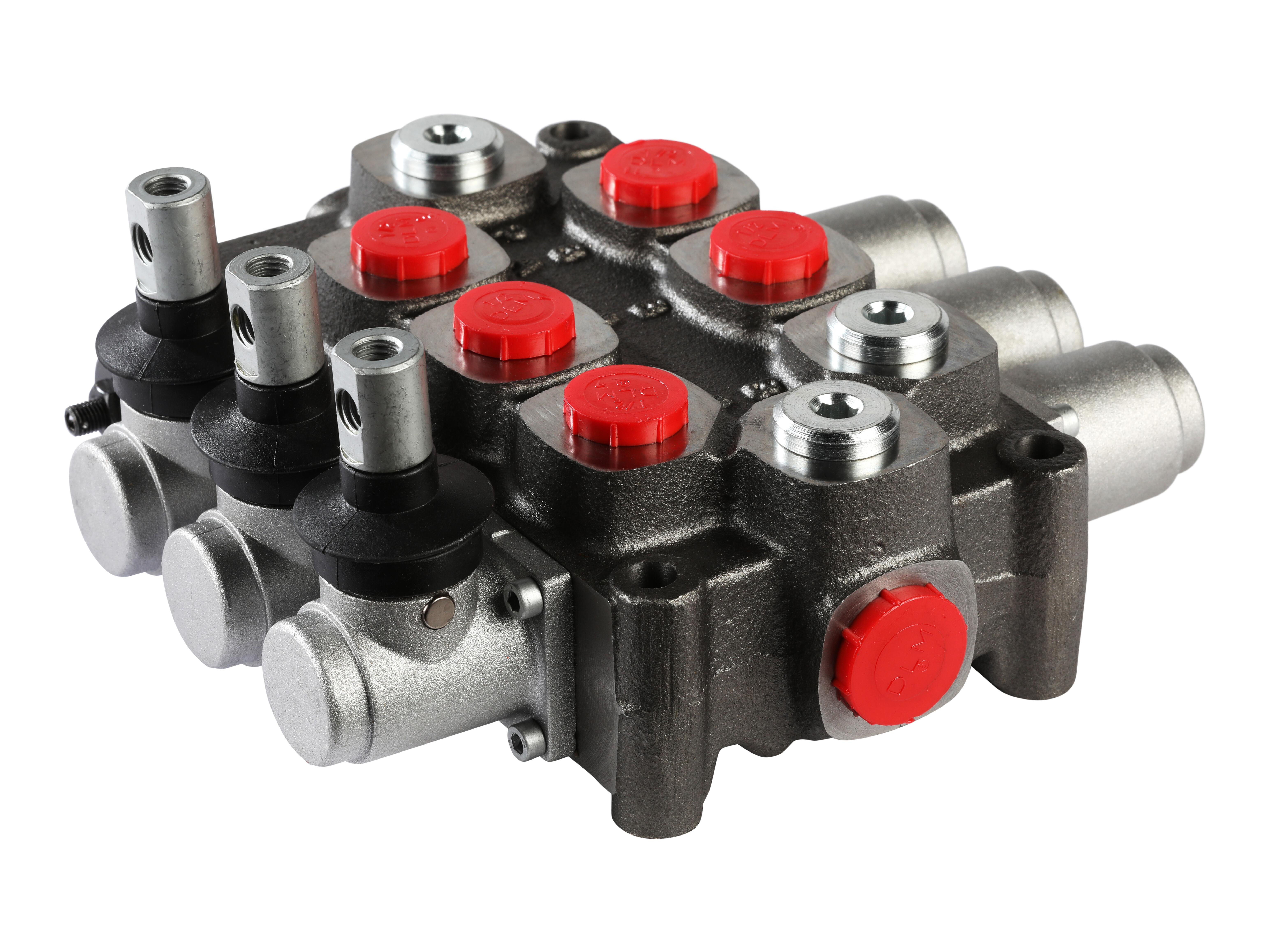

3-section Q75 monoblock directional valve with built-in pressure relief valve. Manually activated
Spool function: 2 x double acting with port A and B closed in neutral position. 1 x single acting closed in neutral position. Spring centered.
Open center port P to T in neutral position.
Varenummer:
075-3004
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Antal sektioner
3
Arbejdsporte
G 1/2 BSP
Flow Nominel
75 lpm
Forureningsgrad maks.
16/14/12 - ISO 4406
Håndtag
Exclusive
Materiale
Cast iron
Model kode
Q75M/3-F1S-2x103/A1/M1-101/A1/M1-F3D
Mærke navn
Walvoil
Olieviskositet anbefalet
10 - 400 cSt
Port P1
G 1/2 BSP
Port P2
G 1/2 BSP
Port T1
G 3/4 BSP
Port T2
G 1/2 BSP
Tryk T maks.
25 bar
Tryk maks.
300 bar
Trykbegrænsningsventil
Yes
Trykindstilling maks.
280 bar
Trykindstilling min.
30 bar
Trykvidereføring
No
Package size
0 pcs
Barcode
5704295204147
Gross weight
10,93 Kg
Net weight
10,93 Kg
Country of origin
ITA
Intrastat code
84812010
3-section Q75 monoblock directional valve with built-in pressure relief valve. Manually activated
Spool function: 2 x double acting with port A and B closed in neutral position. 1 x single acting closed in neutral position. Spring centered.
Open center port P to T in neutral position.
