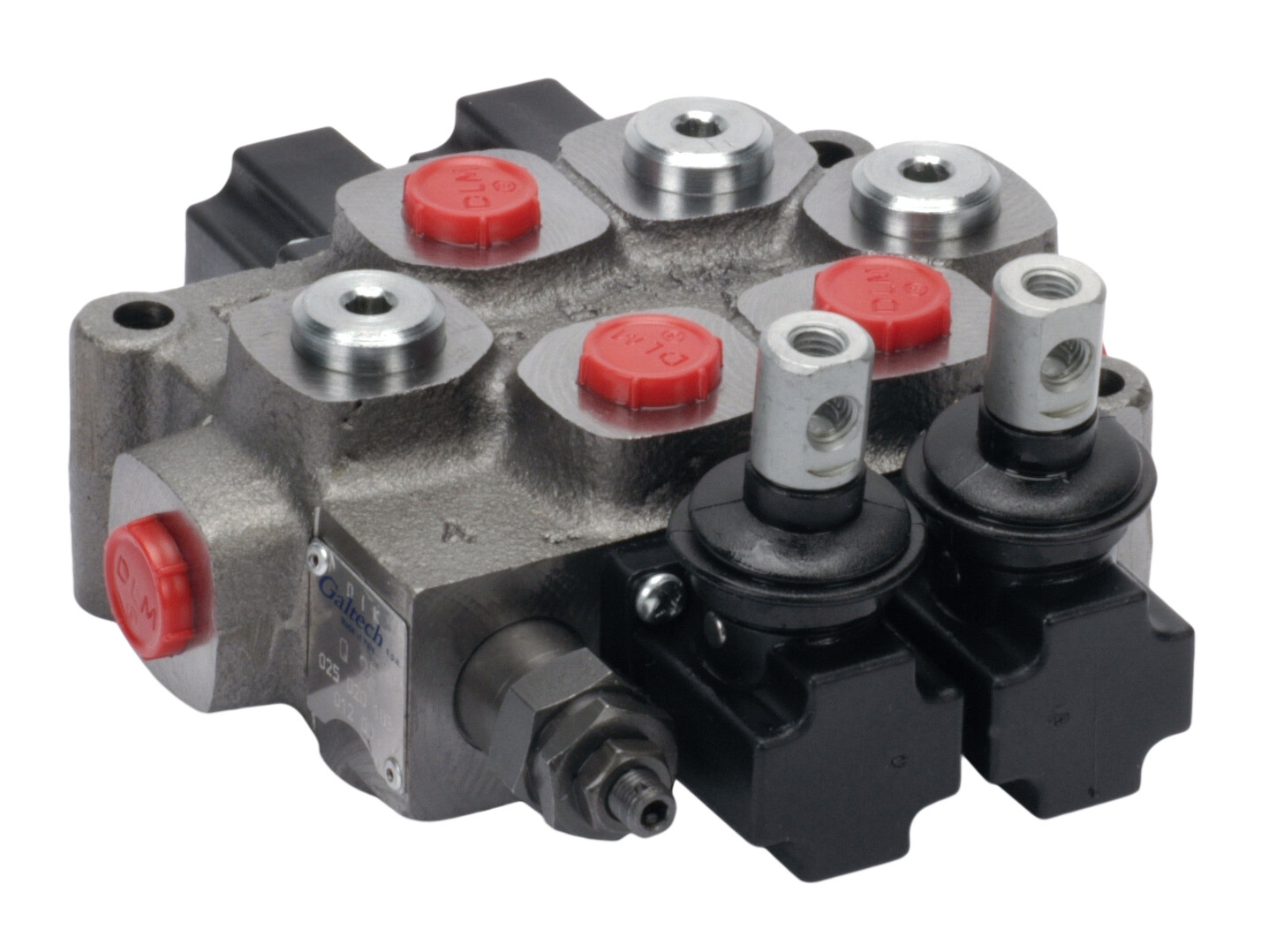

Q25M/2-F1S-103/A1/M1- 101/A1/M1-F3D

2-section Q25 monoblock directional valve with built-in pressure relief valve. Manually activated

Spool function: 1 x double acting with port A and B closed in neutral position. 1 x single acting closed in neutral position. Spring centered.

Open center port P to T in neutral position.

Artikelnummer:

025-2004

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Accessories (1)

Lever Q30

Varenummer: 030-A

Specifikationer
Dimensioner og forsendelse

Brand Name

Walvoil

Contamination level max.

16/14/12 - ISO 4406

Flow rate nominal LMin

35 lpm

Lever

Exclusive

Material

Cast iron

Model code

Q25M/2-F1S-103/A1/M1-101/A1/M1-F3D

Number of sections

Oil viscocity recommended

10 - 400 cSt

Port P1

G 3/8 BSP

Port P2

G 3/8 BSP

Port T1

G 1/2 BSP

Port T2

G 3/8 BSP

Pressure T max.

25 bar

Pressure carry-over

Pressure max.

350 bar

Pressure relief valve

Yes

Pressure setting max.

280 bar

Pressure setting min.

30 bar

Working ports

G 3/8 BSP

Pakke str.

0 pcs

Stregkode

5704295201375

Brutto vægt

4,35 Kg

Netto vægt

4,35 Kg

Oprindelsesland

ITA

Intrastat varekode

84812010

Produkt information

2-section Q25 monoblock directional valve with built-in pressure relief valve. Manually activated

Spool function: 1 x double acting with port A and B closed in neutral position. 1 x single acting closed in neutral position. Spring centered.

Open center port P to T in neutral position.
