XLH 315 Ø25mm SAE-A HPS
Danfoss XLH Series – Robust Orbital Motors for Medium-Duty Applications
The Danfoss XLH series is designed for medium-duty mobile and industrial applications requiring reliable torque output at low speeds.
Based on the proven orbital motor principle with spool-valve distribution and hydrodynamic journal bearings, the XLH delivers efficient, stable, and durable performance in a compact and cost-effective design.
Each motor in the XLH range features a high-pressure shaft seal and rugged steel construction optimized for reliability and ease of installation. With SAE A 2-bolt flange mounting, multiple shaft options, and straightforward port configurations, the XLH provides flexibility across a wide range of hydraulic systems.
Key Advantages
- High efficiency and consistent torque at low speeds
- Compact and durable design for medium-duty operation
- Equal torque in both rotational directions
- Hydrodynamic journal bearings ensure long service life
- High-pressure shaft seal as standard on all models
- Wide displacement range: 50 – 485 cm³/rev
- Continuous pressure: up to 124 bar
- Intermittent pressure: up to 138 bar
- Continuous torque: up to 426 Nm
- Intermittent torque: up to 547 Nm
- Speed capability: up to 800 rpm (depending on model)
Typical Applications
- Aerial work platforms and lifts
- Augers, mixers, and sweepers
- Conveyors and material-handling systems
- Agricultural and forestry equipment
- Turf care and landscaping machinery
- Winches, drives, and auxiliary mechanisms
Technical Highlights
- Inlet pressure: up to 150 bar
- Recommended oil viscosity: 20–32 cSt
- Operating temperature: –30 °C to +82 °C
- Filtration: ISO 4406: 20/18/13
- Port threads: G ½ (pressure) / G ¼ (drain)
- Mounting flange: SAE A 2-bolt (A2) – Ø 82.5 mm pilot / Ø 106.4 mm bolt circle
- Shaft options: Ø 25 mm straight (code 10) or SAE 6B 1" spline (code 07)
- Shaft seal: High-pressure type (standard)
Note
For continuous high-pressure or high-temperature operation, connecting an external case drain line is recommended to maintain low case pressure and extend seal life.
Artikelnummer:
016-0551-003
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Danfoss
Contamination level max.
20/18/13 - ISO 4406
Continuous Flow Max.
57
Continuous rotation max.
174 rpm

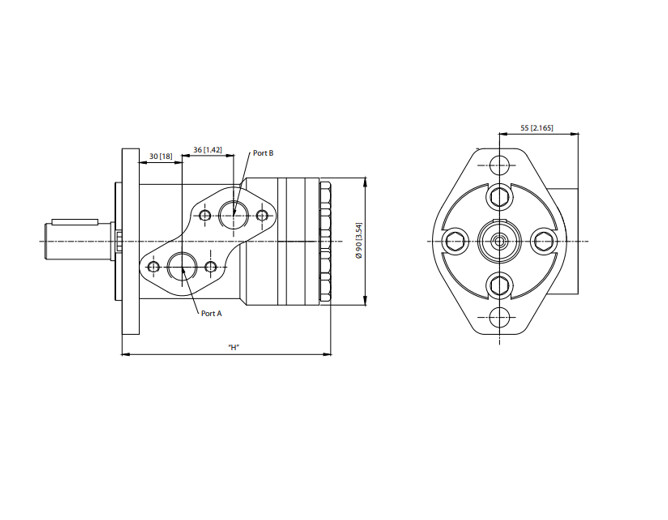

Dimension H
179 mm
Displacement
315 cm3
Drain line requirements
Recommended (Required under high case pressure)
Drainport
G 1/4 BSP
Filtration Requirement
ISO cleanliness code 4406:20/18/13
Flange style diameter
82.5 mm
Holes circle
106.4 mm
Inlet Pressure Max.
150
Integrated check valve
No
Intermittent Flow Maks.
68
Intermittent Rotation speed Max.
209
Intermittent Torque Max.
508 Nm
Length
179 mm
Max. operating temperature
82 °C
Model code
XLH
Mounting flange
SAE-A2
Number of mounting holes
2
Oil viscocity recommended
20 - 32 cSt
Paint
Black
Port Drawing Code
AA
Port position
Side
Pressure continous max.
90 bar
Pressure intermittent max.
124 bar
Recess
82,55 mm
Shaft Seal Type
High pressure packing
Shaft diameter
25 mm
Shaft torque rating
340 Nm
Shaft type
Cyl. Ø 25 mm (10)
Temperature max.
+180 °C
Temperature min.
-30 °C
Torque continuous max.
377 Nm
Working ports
G 1/2 BSP
Pakke str.
0 pcs
Stregkode
5704334982722
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
CHN
Intrastat varekode
84122981
Danfoss XLH Series – Robust Orbital Motors for Medium-Duty Applications
The Danfoss XLH series is designed for medium-duty mobile and industrial applications requiring reliable torque output at low speeds.
Based on the proven orbital motor principle with spool-valve distribution and hydrodynamic journal bearings, the XLH delivers efficient, stable, and durable performance in a compact and cost-effective design.
Each motor in the XLH range features a high-pressure shaft seal and rugged steel construction optimized for reliability and ease of installation. With SAE A 2-bolt flange mounting, multiple shaft options, and straightforward port configurations, the XLH provides flexibility across a wide range of hydraulic systems.
Key Advantages
- High efficiency and consistent torque at low speeds
- Compact and durable design for medium-duty operation
- Equal torque in both rotational directions
- Hydrodynamic journal bearings ensure long service life
- High-pressure shaft seal as standard on all models
- Wide displacement range: 50 – 485 cm³/rev
- Continuous pressure: up to 124 bar
- Intermittent pressure: up to 138 bar
- Continuous torque: up to 426 Nm
- Intermittent torque: up to 547 Nm
- Speed capability: up to 800 rpm (depending on model)
Typical Applications
- Aerial work platforms and lifts
- Augers, mixers, and sweepers
- Conveyors and material-handling systems
- Agricultural and forestry equipment
- Turf care and landscaping machinery
- Winches, drives, and auxiliary mechanisms
Technical Highlights
- Inlet pressure: up to 150 bar
- Recommended oil viscosity: 20–32 cSt
- Operating temperature: –30 °C to +82 °C
- Filtration: ISO 4406: 20/18/13
- Port threads: G ½ (pressure) / G ¼ (drain)
- Mounting flange: SAE A 2-bolt (A2) – Ø 82.5 mm pilot / Ø 106.4 mm bolt circle
- Shaft options: Ø 25 mm straight (code 10) or SAE 6B 1" spline (code 07)
- Shaft seal: High-pressure type (standard)
Note
For continuous high-pressure or high-temperature operation, connecting an external case drain line is recommended to maintain low case pressure and extend seal life.
