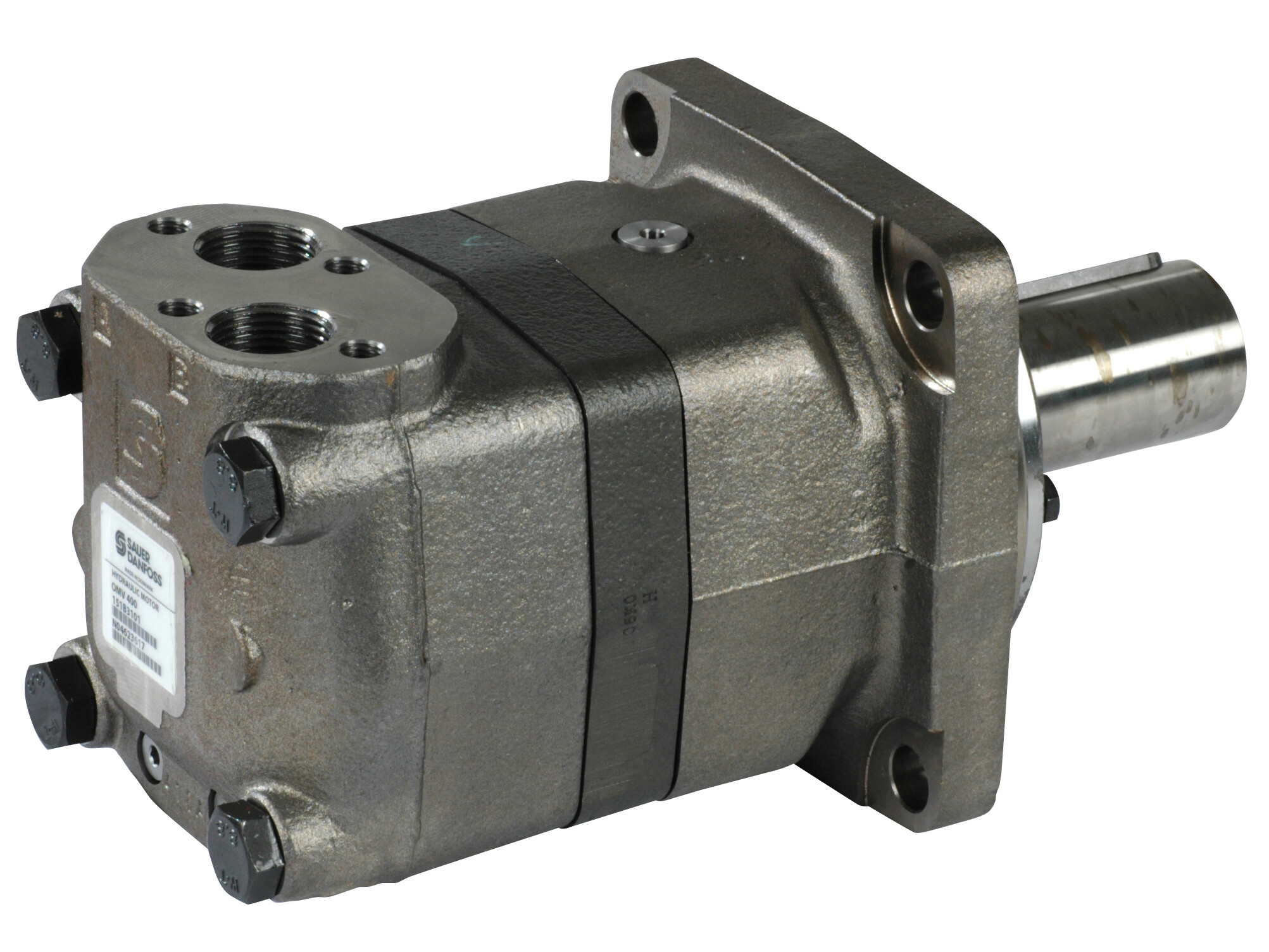

OMV 630 HYDRAULIC MOTOR
Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers - separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure.
Artikelnummer:
151B3103
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Danfoss
Contamination level max.
22/20/16 - ISO 4406
Continuous power max.
48 kW
Continuous rotation max.
315 rpm

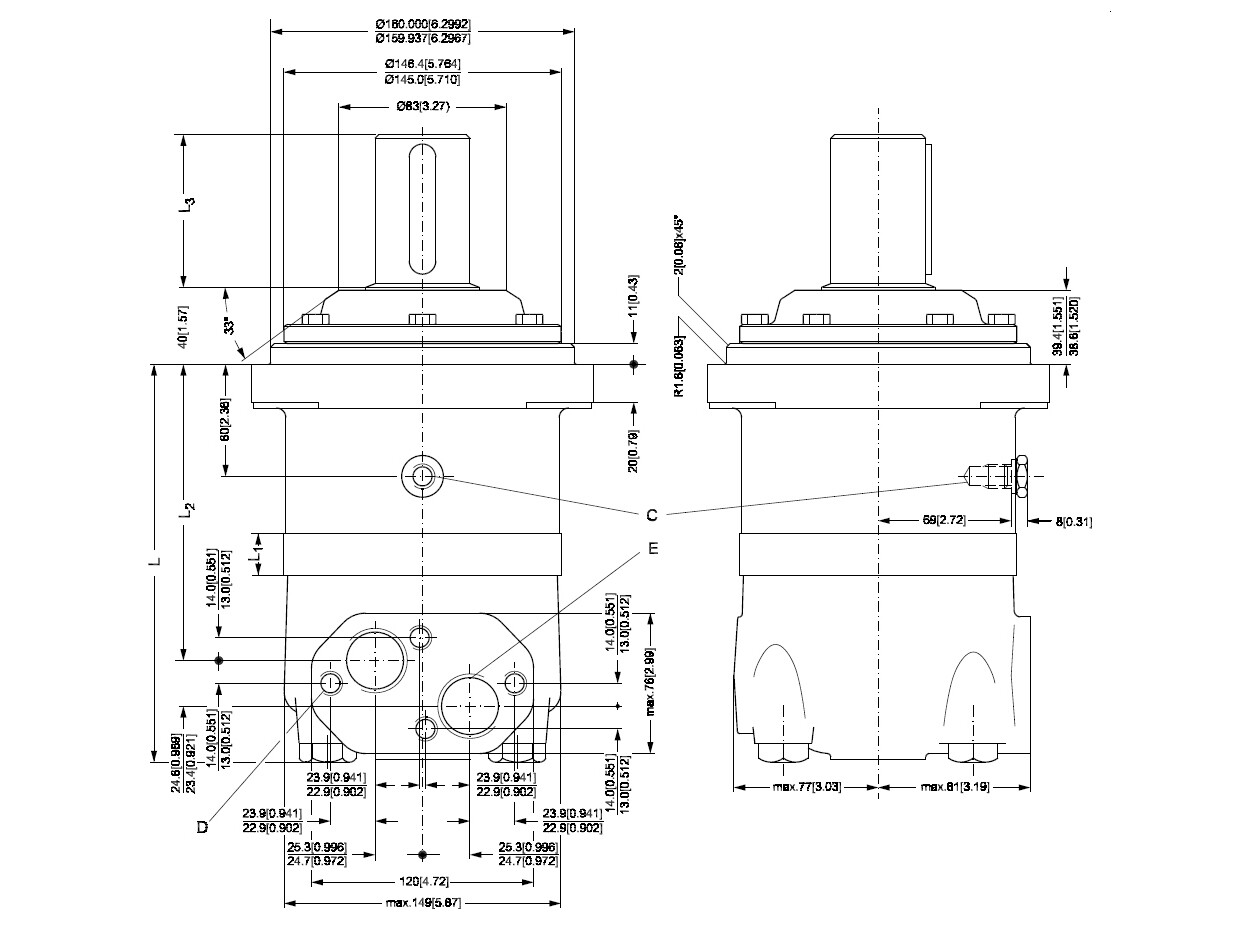

Dimension L
240 mm
Dimension L1
47.5 mm
Dimension L2
186 mm
Displacement
629.1 cm3
Drainport
G 1/4 BSP
Holes circle
200 mm

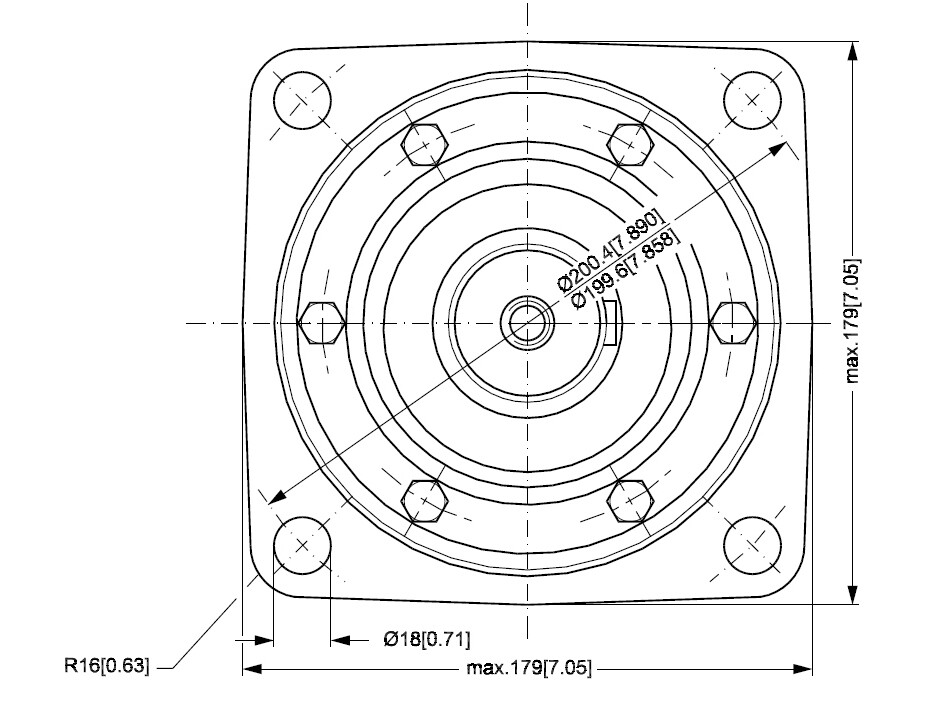

Mounting flange
Square 160
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
180 bar
Recess
160,0 mm

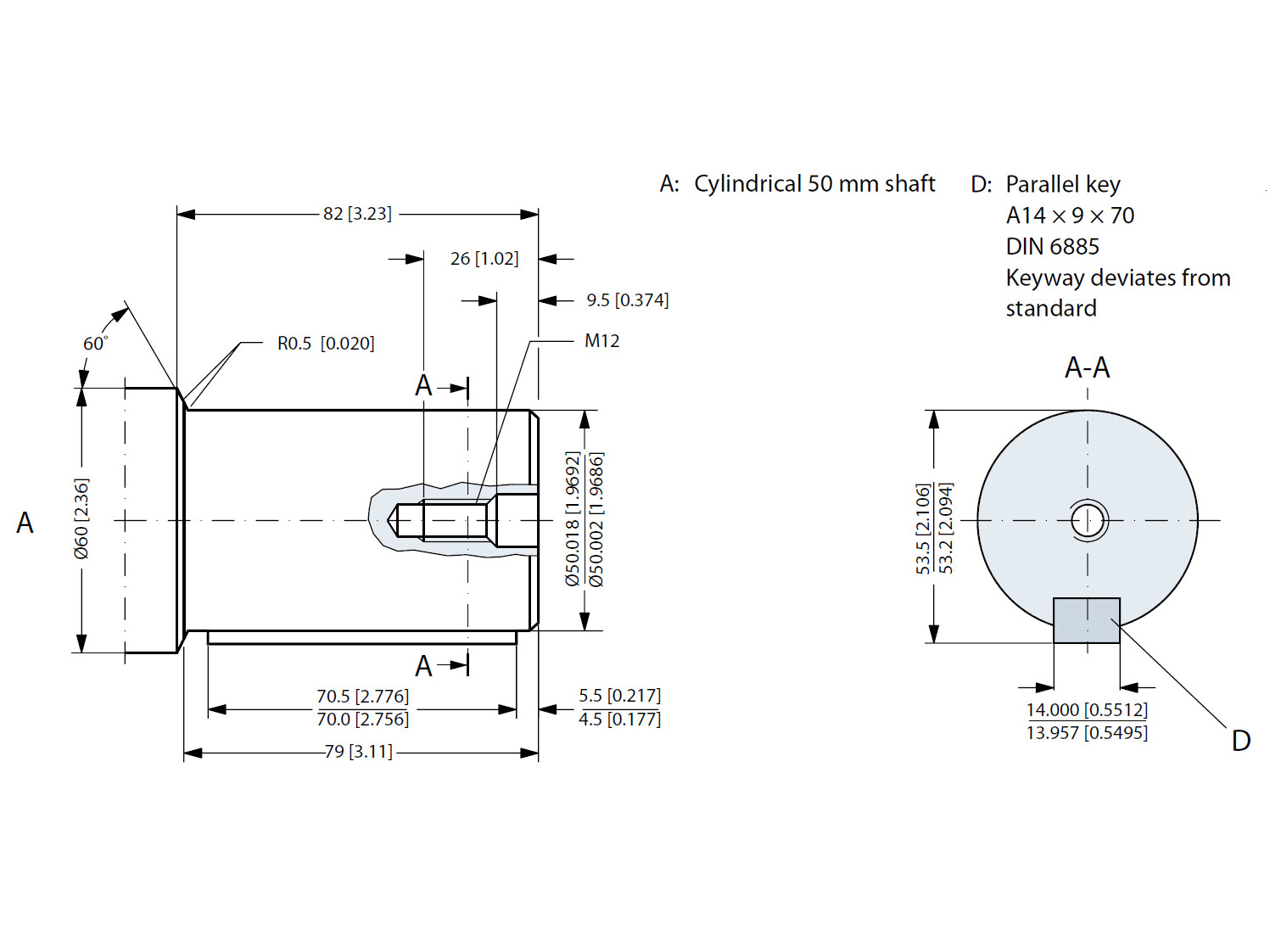

Shaft diameter
50 mm
Shaft keyway
14,0 mm
Shaft type
Cylindrical
Temperature ambient max.
+90 °C
Temperature ambient min.
-30 °C
Torque continuous max.
1660 Nm
Working ports
G 1 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295162966
Bruttovikt
36,50 Kg
Nettovikt
36,50 Kg
Ursprungsland
Intrastat artikelkod
84122981
Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers - separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure.
