Manometer påskruning - ø12L x 1/4" BSP indv-oring-AISI 316TI
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
VO12LDKO/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rør
12 mm

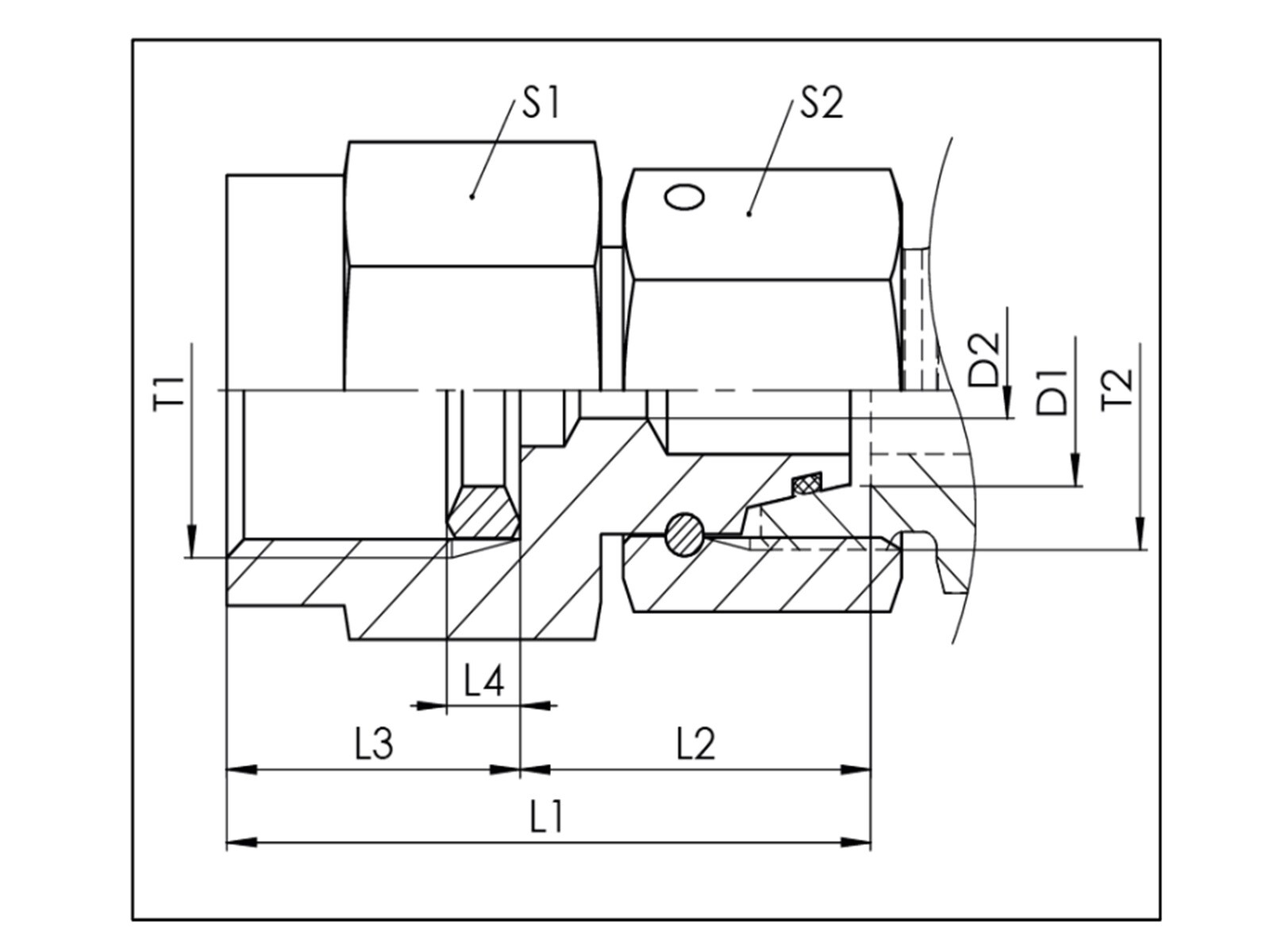

Dimension D1
12 mm
Dimension D2
3.5 mm
Dimension L1
36.5 mm
Dimension L2
21.9 mm
Dimension L3
14.5 mm
Dimension L4
4.5 mm
Dimension S1
19 mm
Dimension S2
22 mm
Gevind T2
M18x1,5 mm
Gevind indvendig
G 1/4 BSP
Gevind indvendig metrisk
M18x1,5
Materiale
Syrefast Stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
MAVD 12 LR 1/4
Mærke navn
Volz
Pakningsmateriale
FKM/FPM (Viton®)
Serie
L
Sikkerhedsfaktor
4
Temperatur maks.
+200 °C
Temperatur min.
-20 °C
Thread T1
G 1/4 BSP
Tryk maks.
315 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295347721
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
