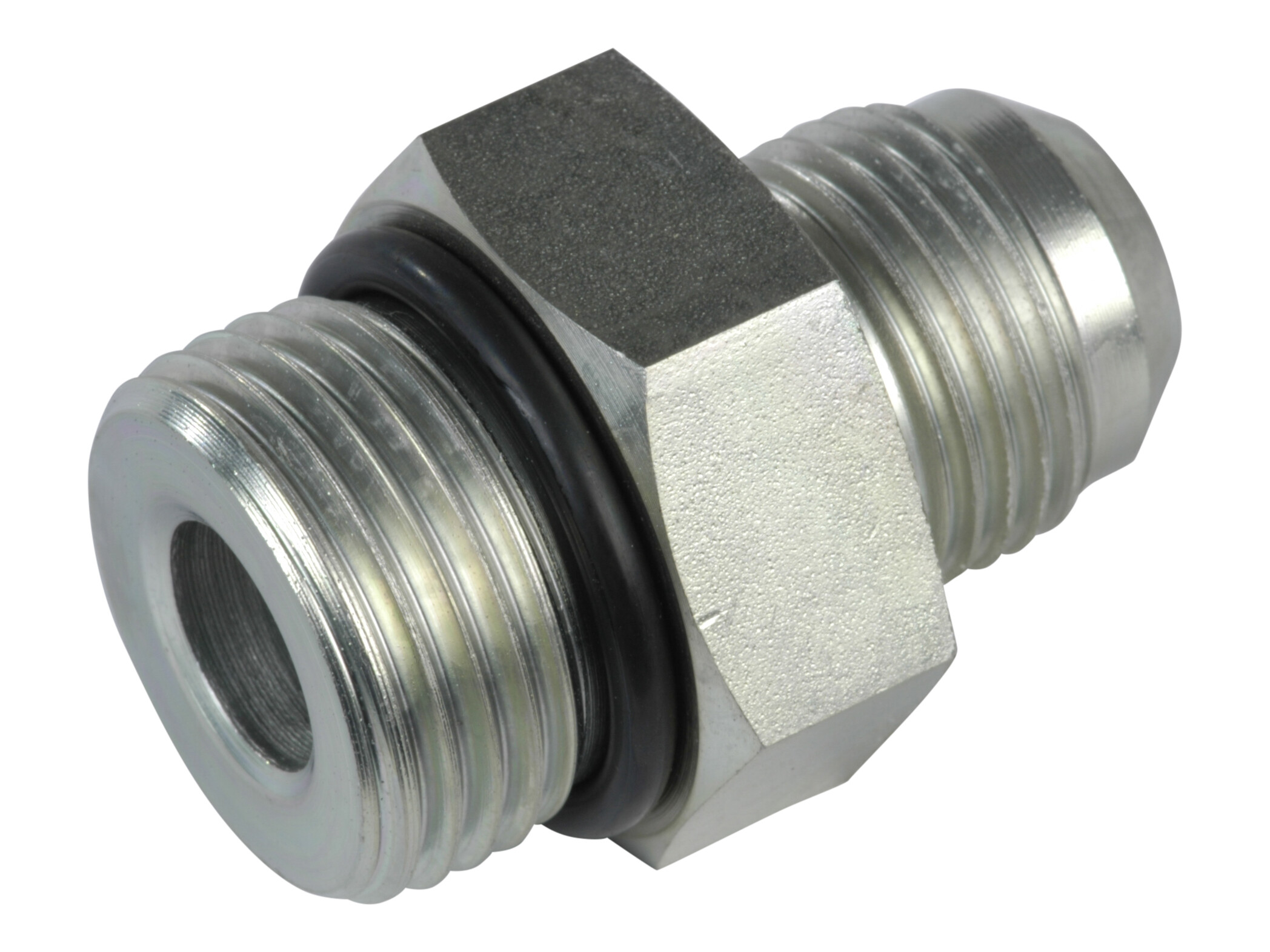

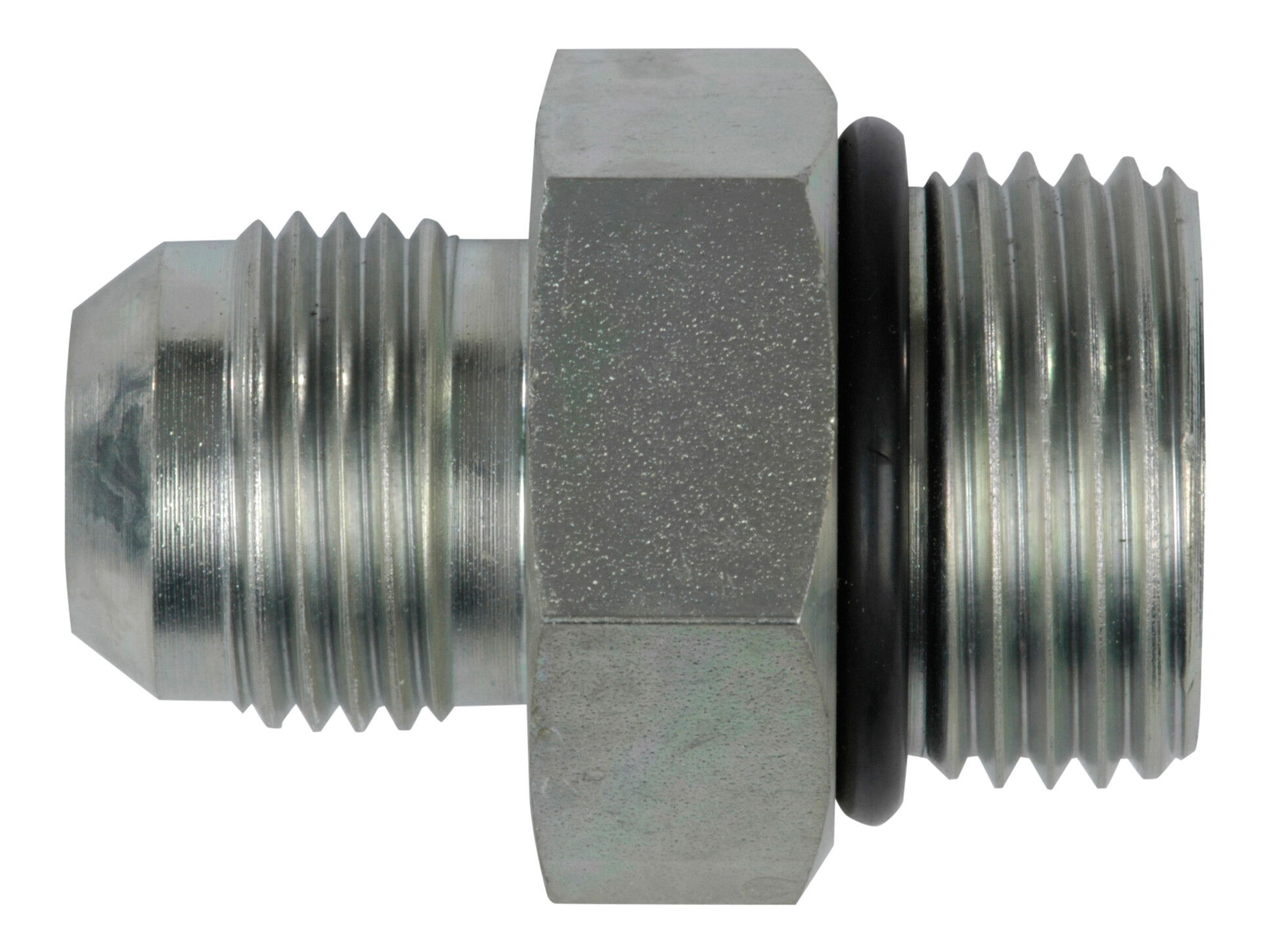

S220-16-27U adaptor UNF
S220-16-27U adaptor UNF
Partnumber:
M-16-1.1/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
14-15-16 mm
Dimension A
47 mm
Dimension B
19.5 mm
Dimension CH
32 mm
Dimension D
15 mm
Dimension F
1.1/16-12 UNF
Dimension J
7/8-14 JIC
Dimension T
14-15-16 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
7/8-14 JIC
Thread outer
1.1/16-12 UNF
Package size
0 pcs
Barcode
5704334155829
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
ITA
Intrastat code
73071110
S220-16-27U adaptor UNF
