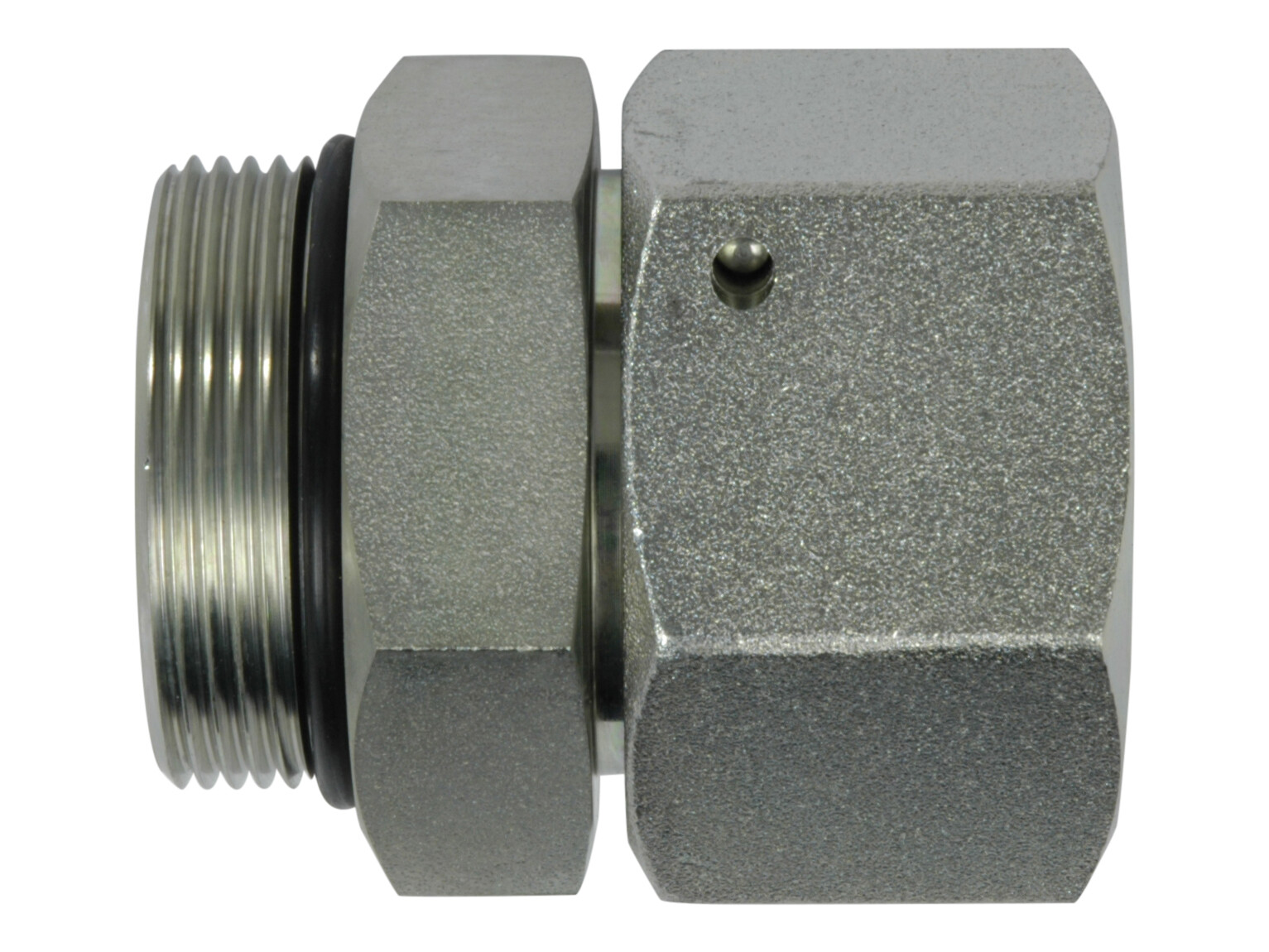

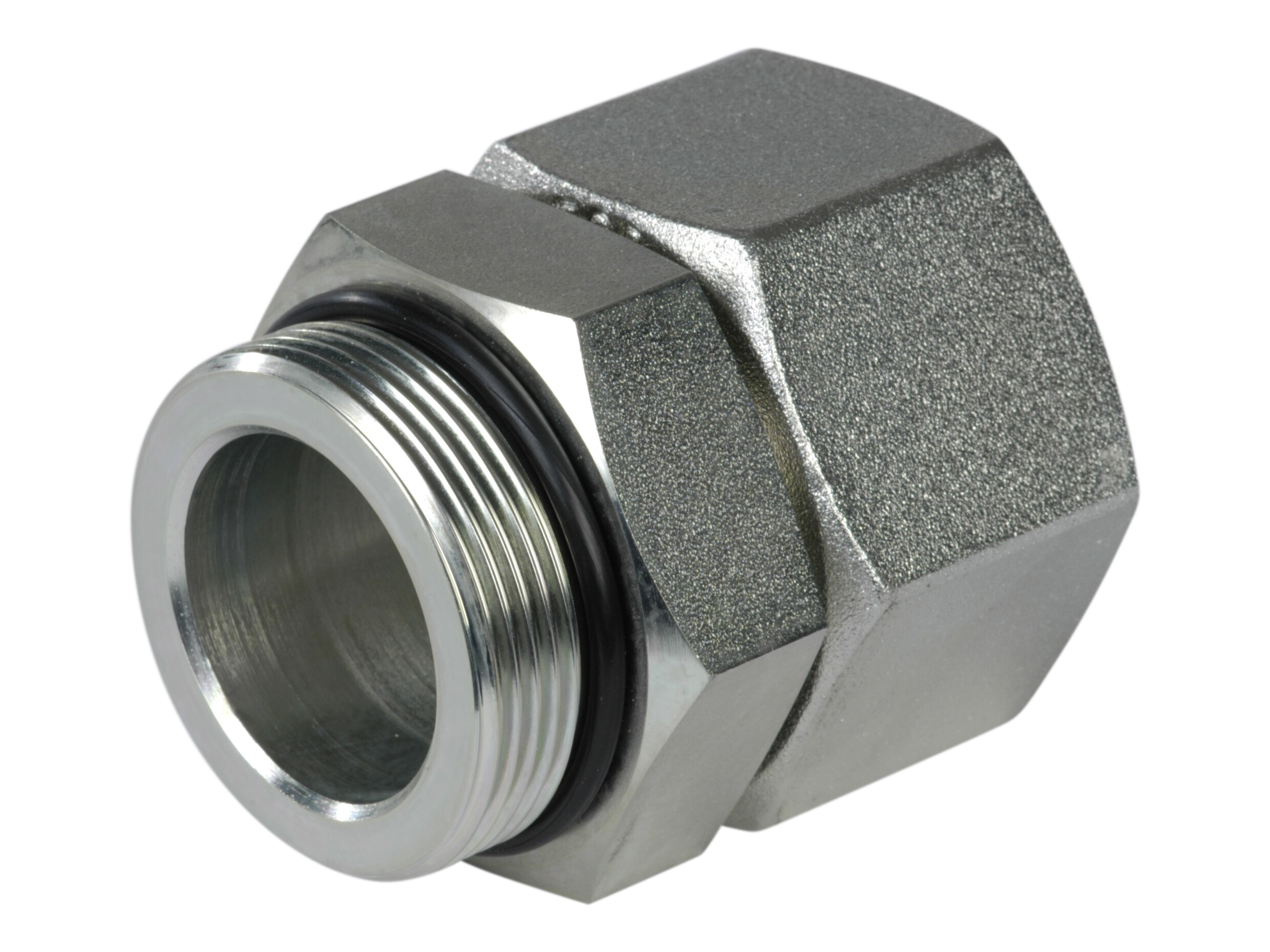

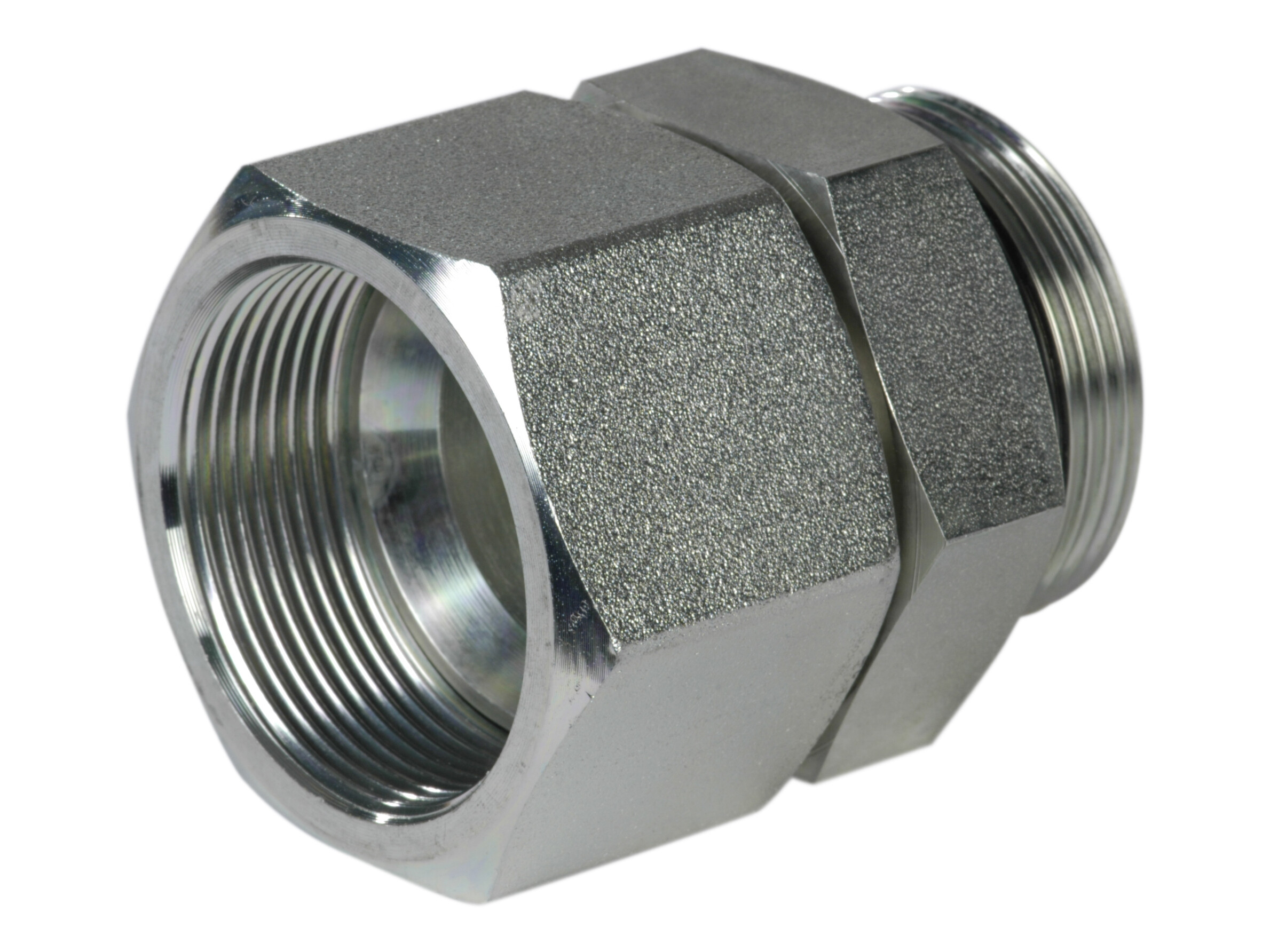

Indskruning 1.7/8-12 JIC omløber x1.7/8-12 UNF udv
Indskruning 1.7/8-12 JIC omløber x1.7/8-12 UNF udv
Partnumber:
FG-38-1.7/8
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Dimension A
70.5 mm
Dimension B
38 mm
Dimension CH
55 mm
Dimension CH1
57 mm
Dimension D
15 mm
Dimension F
1.7/8-12 UNF
Dimension J
1.7/8-12 JIC
Material
Stål
Pressure max.
250 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread inner
1.7/8-12 JIC
Thread outer
1.7/16-12 UNF
Package size
0 pcs
Barcode
5704334026884
Gross weight
0,74 Kg
Net weight
0,74 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 1.7/8-12 JIC omløber x1.7/8-12 UNF udv
