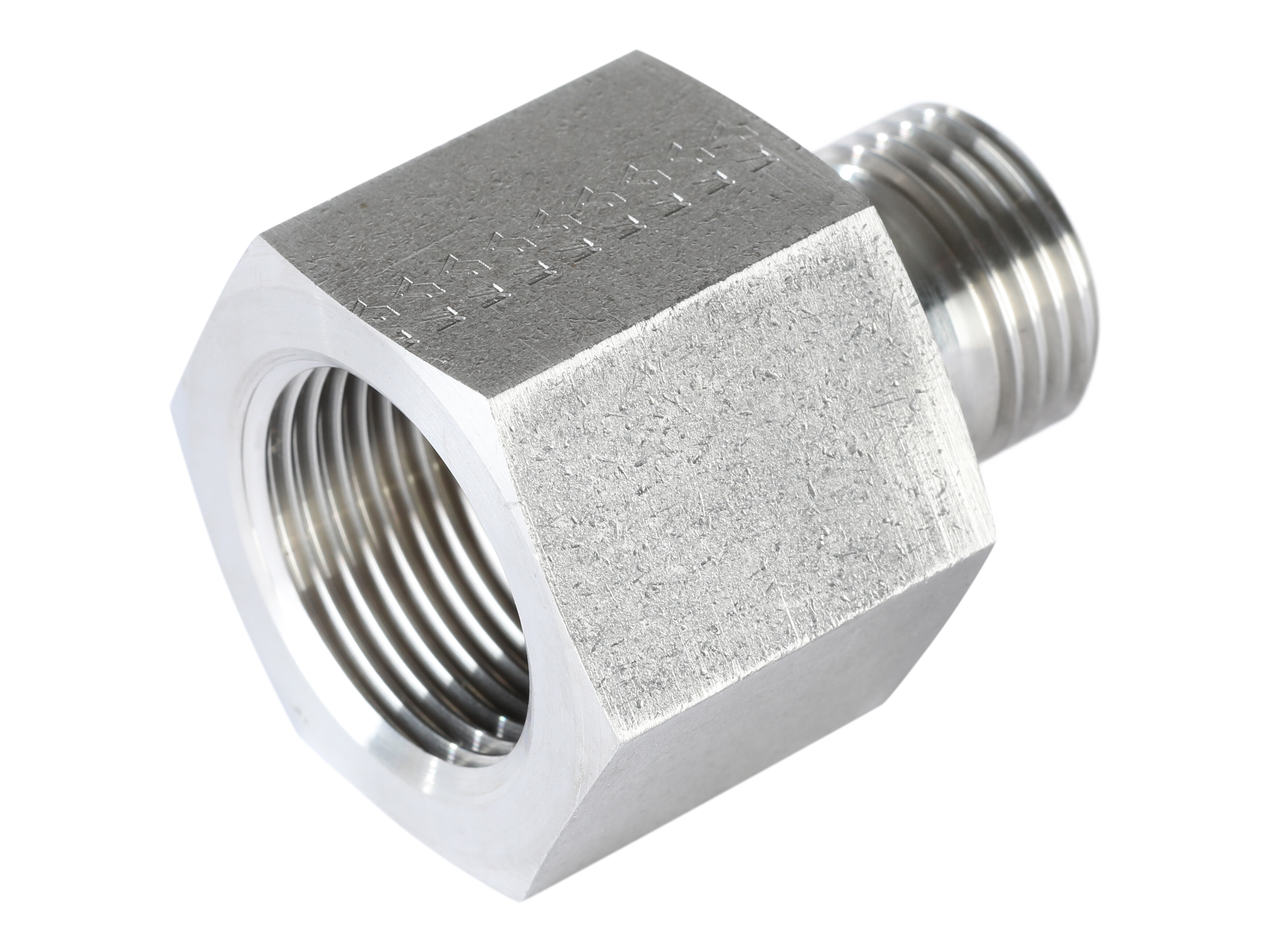

Reduktion - 1/2" BSP x 3/8" BSP indv - AISI 316Ti

Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.

Varenummer:
RI1/2-3/8/71

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Lubricant for mounting OF 1.4571 fittings
Partnumber: SMV4A250G/71
Dimension L1
36 mm

Dimension L2
17 mm

Dimension S1
27 mm

Dimension i
14 mm

Gänga inv.
G 3/8 BSP

Gänga utv.
G 1/2 BSP

Materialkvalitet
1.4571 / AISI316Ti

Modell kod
RI 1/2 x 3/8

Märke namn
Volz

Temperatur max.
+400 °C

Temperatur min.
-60 °C

Thread T1
G 1/2 BSP

Thread T2
G 3/8 BSP

Tillverkningsmaterial
Rustfrit stål

Tryck max.
400 bar

Vinkel
0 °
Package size
0 pcs

Barcode
5704295301808

Gross weight
0,94 Kg

Net weight
0,94 Kg

Country of origin
DEU

Intrastat code
73072910

Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
