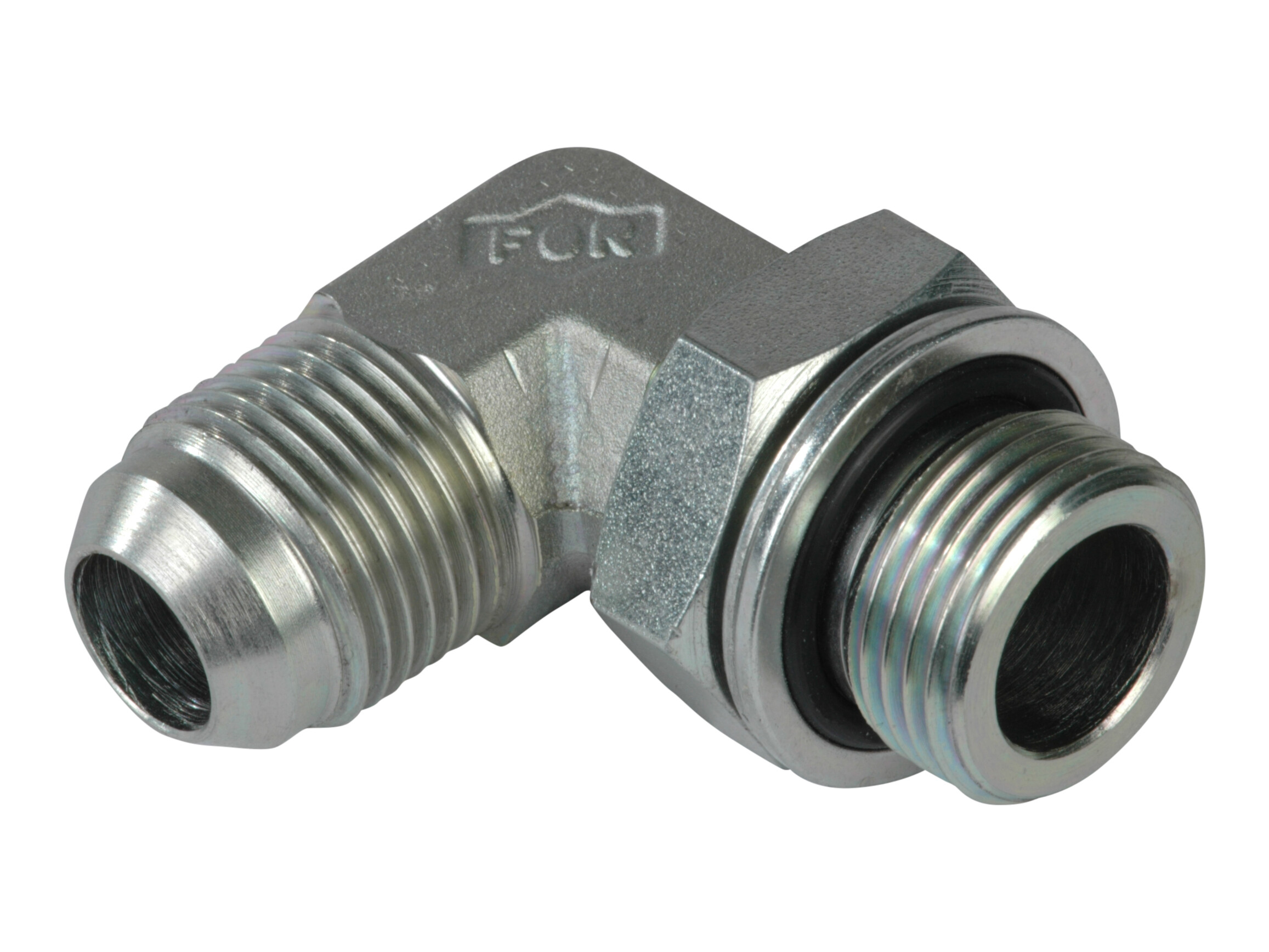

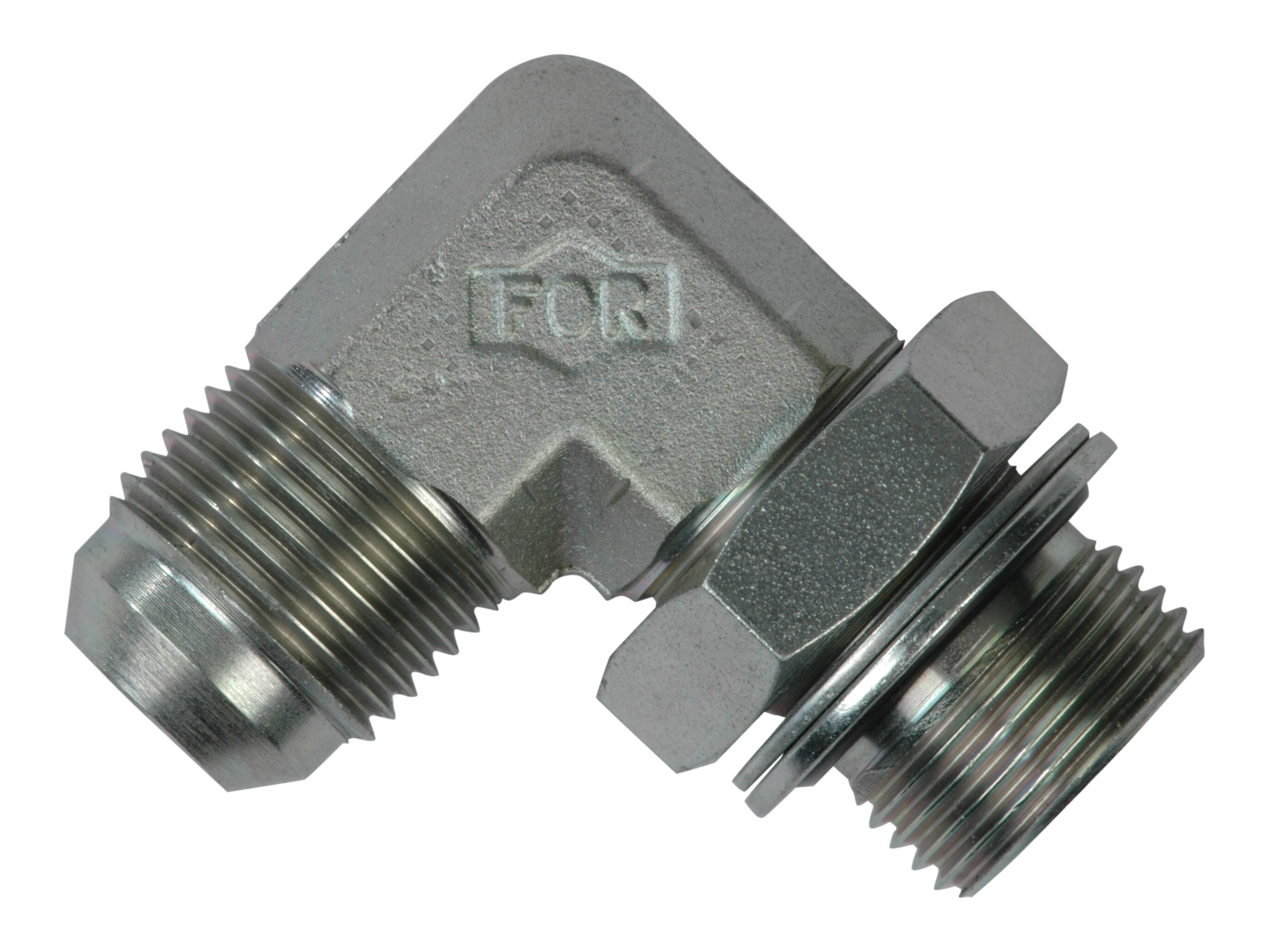

Vinkelindskruning 90 gr 7/8-14 JIC udv x 5/8" BSP udv
Vinkelindskruning 90 gr 7/8-14 JIC udv x 5/8" BSP udv
Partnumber:
CO-16-5/8
Package size:
0 stk
Min. order quantity is:
1 stk
Angle
90 °

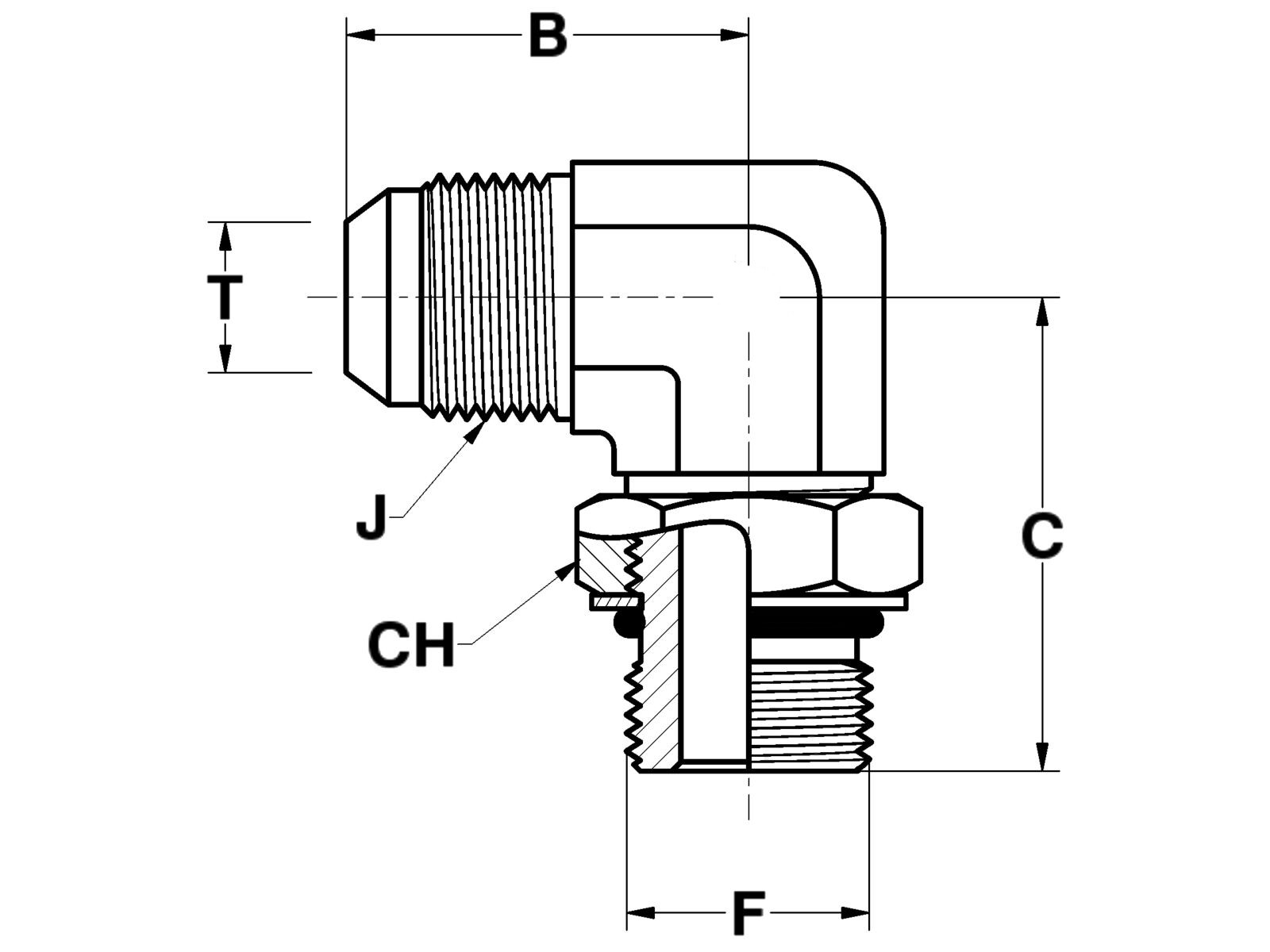

B
36,5 mm
Brand Name
FOR
C
43 mm
CH
30 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
16 mm
F
G 5/8 BSP
J
7/8-14 JIC
Material
Stål
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
El-forzinket
T
16 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
7/8-14 JIC
Thread outer
G 5/8 BSP
Package size
0 stk
Barcode
5704334332169
Gross weight
0,23 Kg
Net weight
0,23 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 90 gr 7/8-14 JIC udv x 5/8" BSP udv
Note: Opening 3D files requires a program that supports the file format
