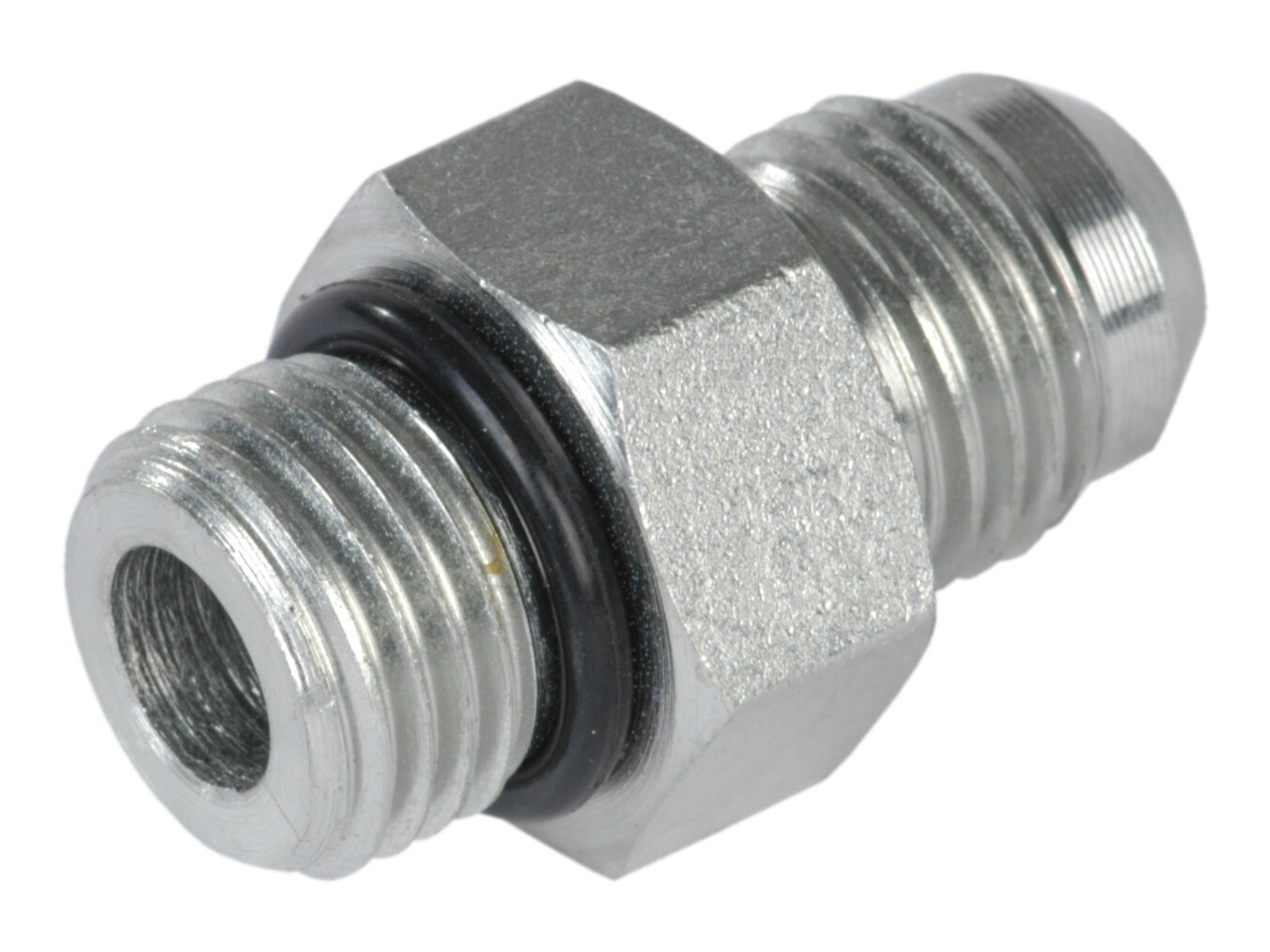

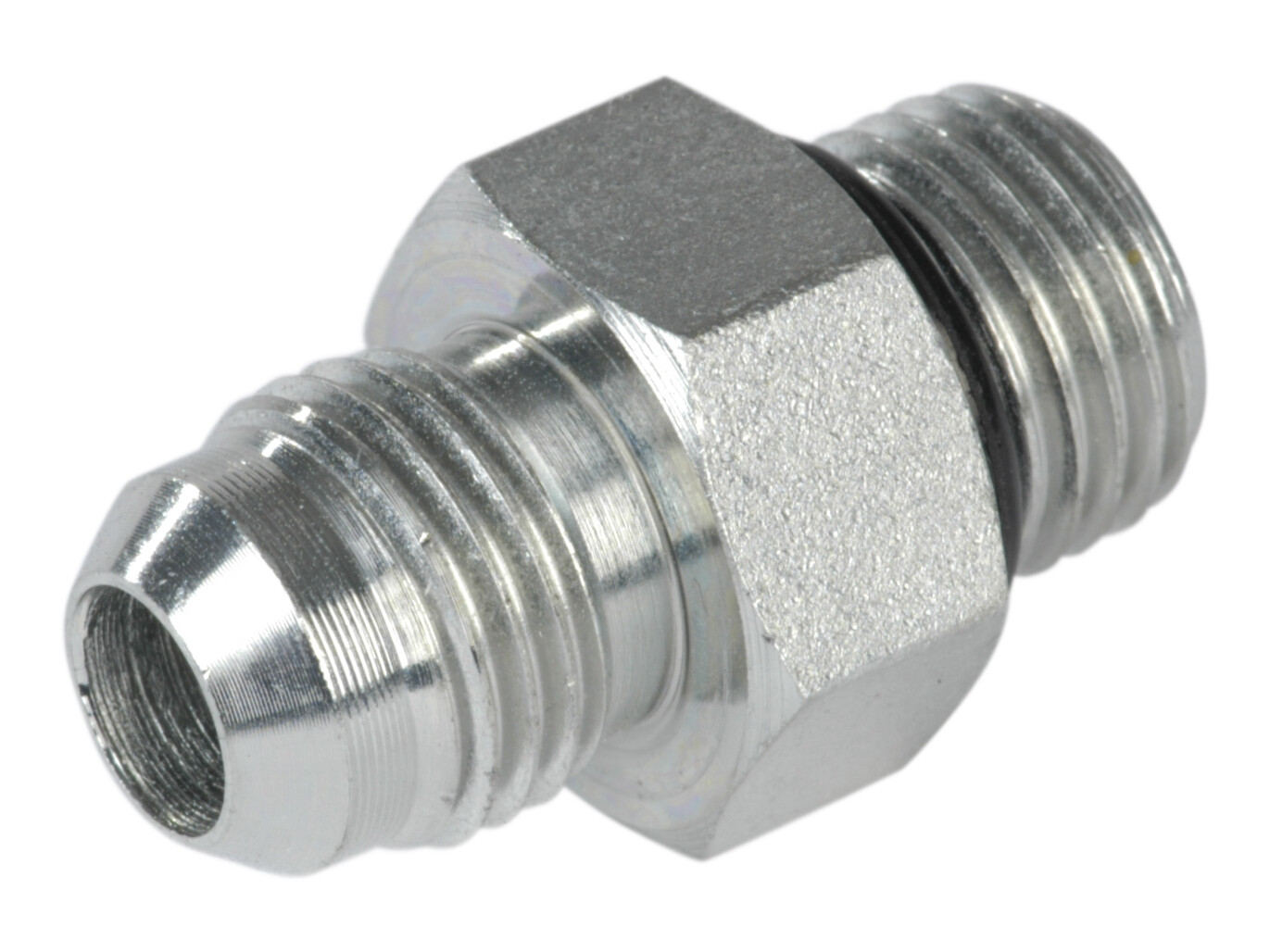

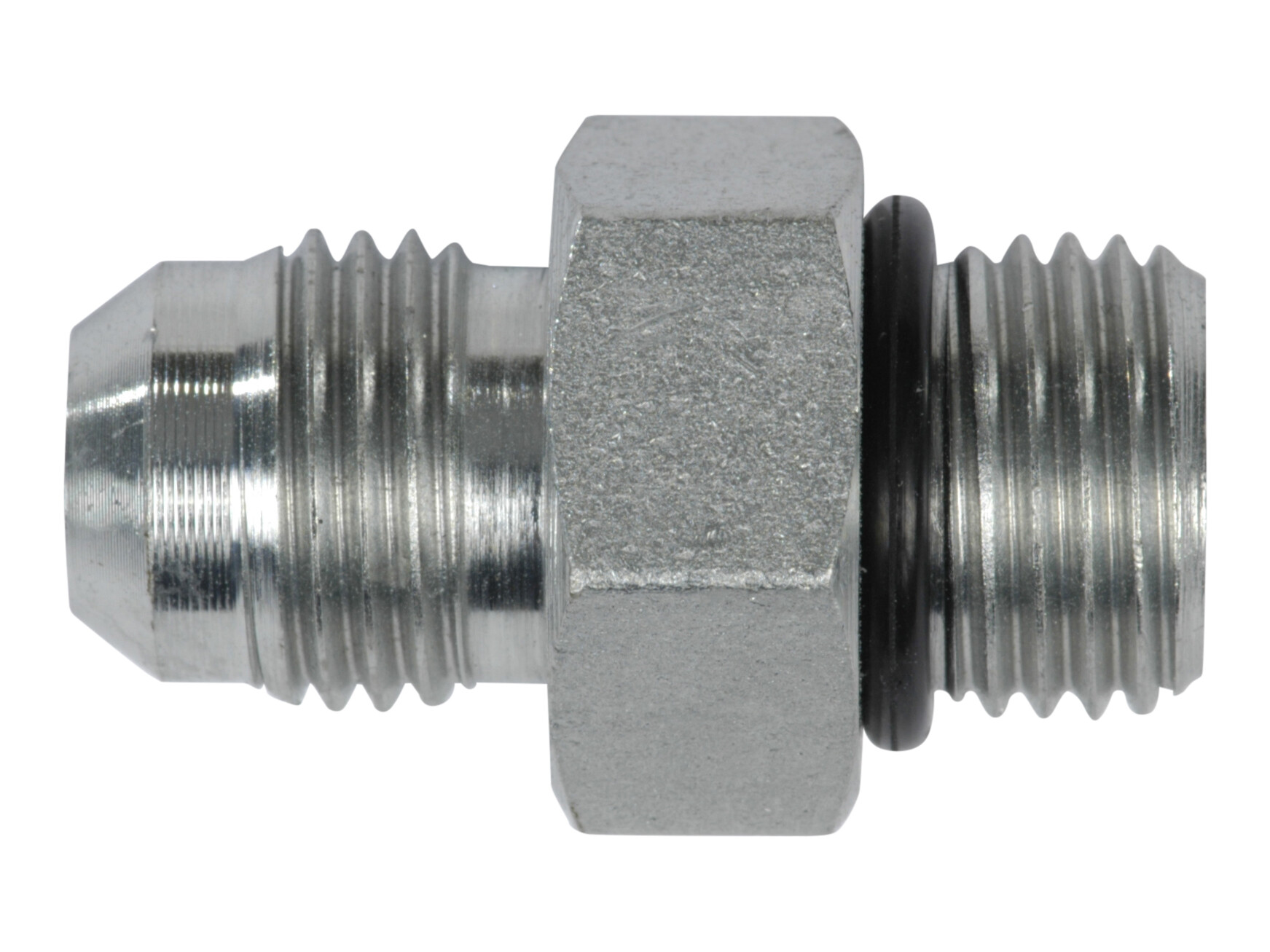

Indskruning 9/16-18 JIC udv x 9/16-18 UNF udv NW19
Indskruning 9/16-18 JIC udv x 9/16-18 UNF udv NW19
Partnumber:
M-10-9/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
33 mm
Angle
0 °
B
14 mm
Brand Name
FOR
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
10 mm
Diameter pipe
10 mm
Dimension F
9/16-18 UNF
F
9/16-18 UNF
J
9/16-18 JIC
Material
Stål
Model code
A102012/1014
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket / hvidkromatiseret
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer
9/16-18 UNF
Package size
0 pcs
Barcode
5704334308829
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 9/16-18 JIC udv x 9/16-18 UNF udv NW19
