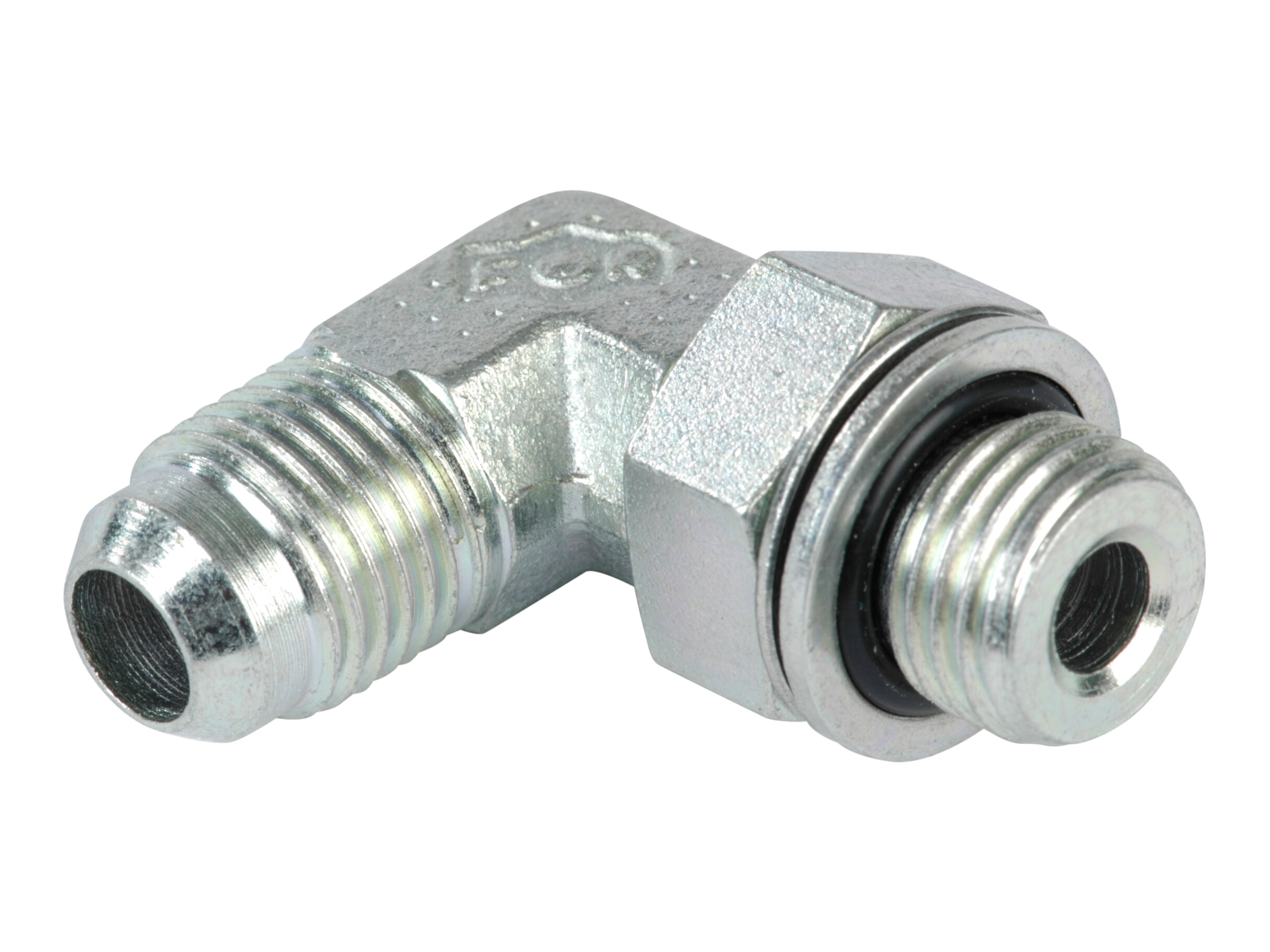

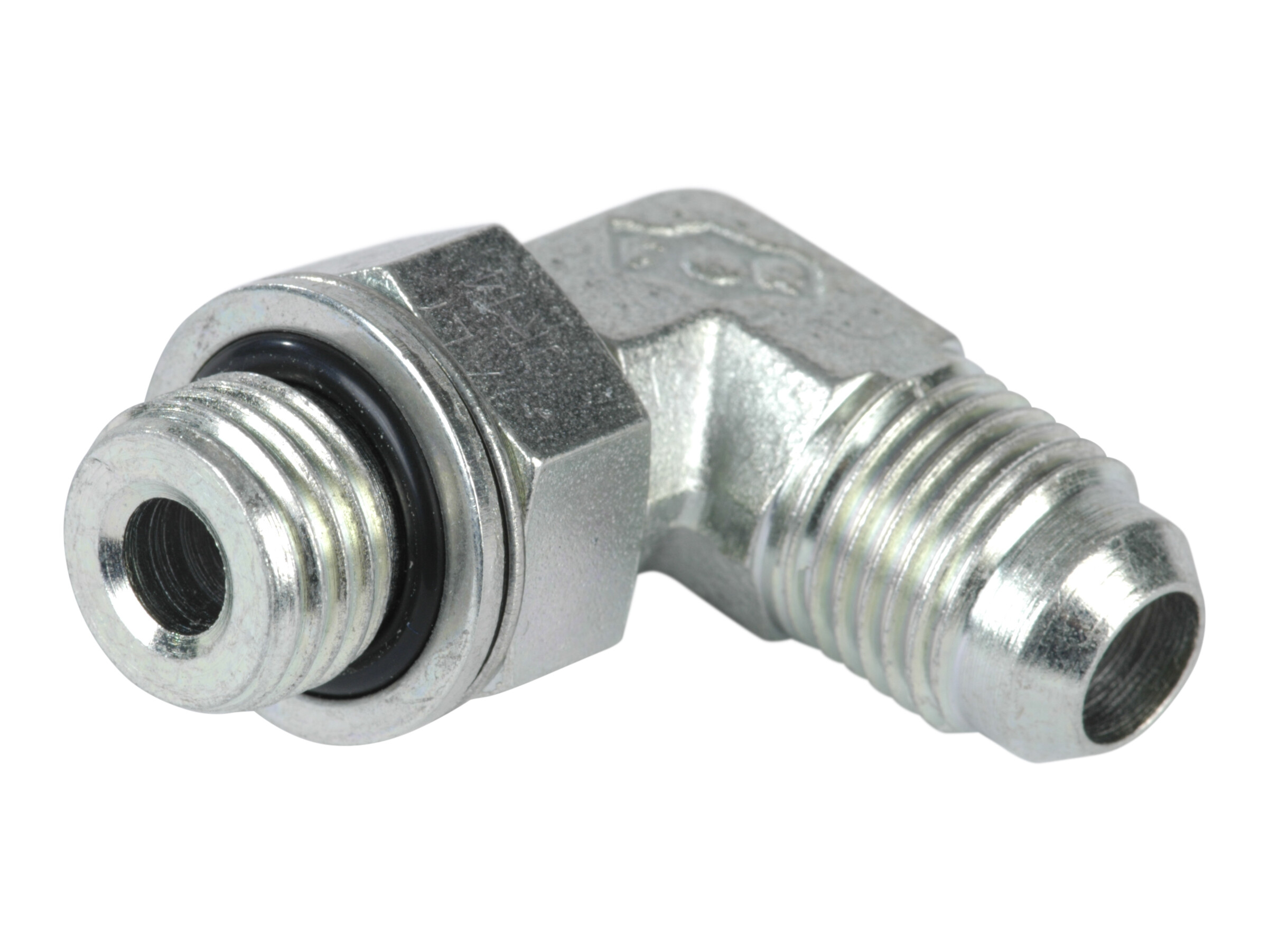

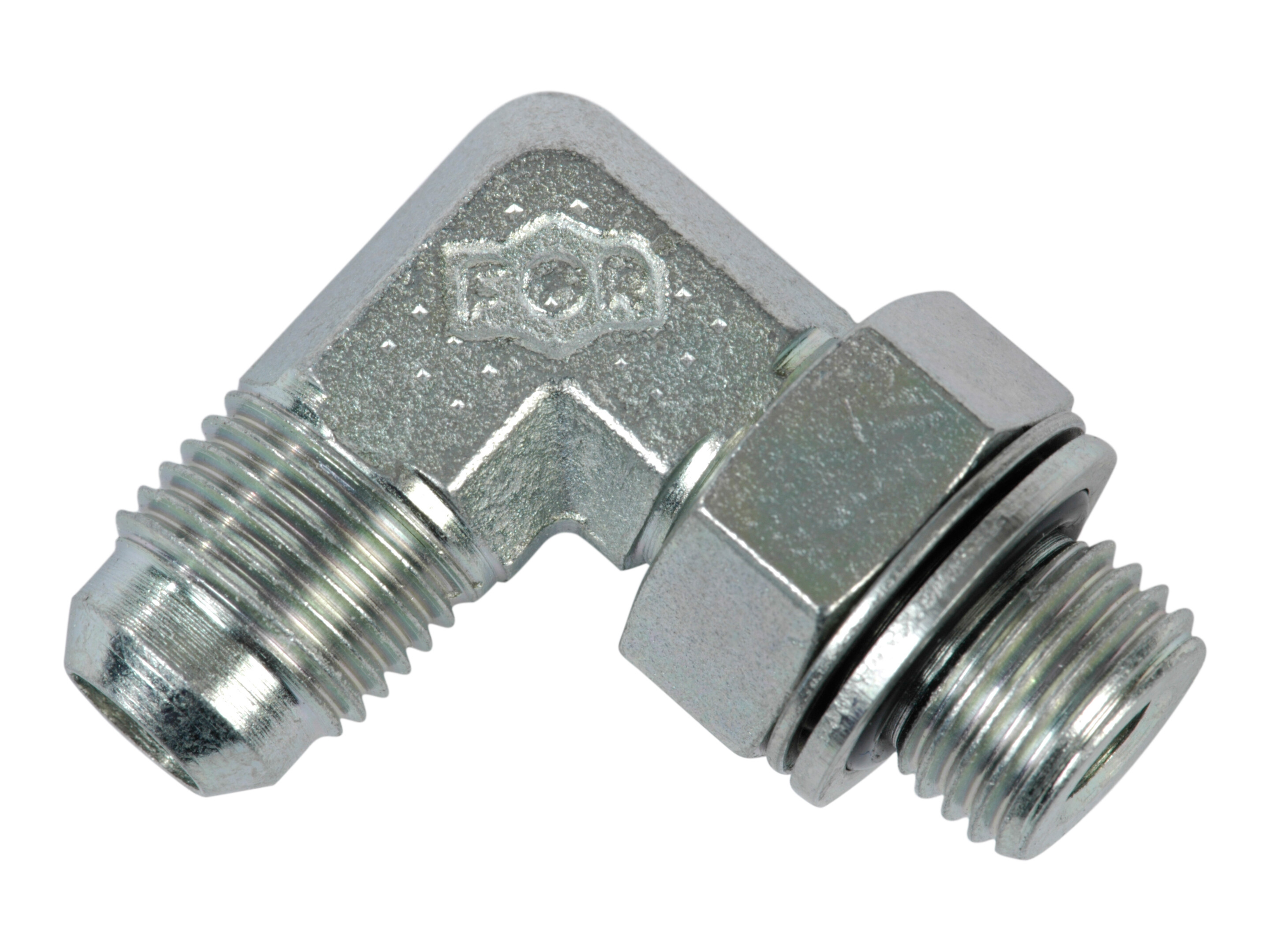

Vinkelindskruning 90 gr 9/16-18 JIC udv x M14x1.5 udv
Vinkelindskruning 90 gr 9/16-18 JIC udv x M14x1.5 udv
Partnumber:
CO-10-14
Package size:
0 stk
Min. order quantity is:
1 stk
Angle
90 °
B
27 mm
Brand Name
FOR
C
32,5 mm
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
F
M14x1,5
J
9/16-18 JIC
Material
Stål
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 9974
Surface treatment
El-forzinket
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer metric
M14x1,5
Package size
0 stk
Barcode
5704334273899
Gross weight
0,058 Kg
Net weight
0,058 Kg
Country of origin
IT
Vinkelindskruning 90 gr 9/16-18 JIC udv x M14x1.5 udv
