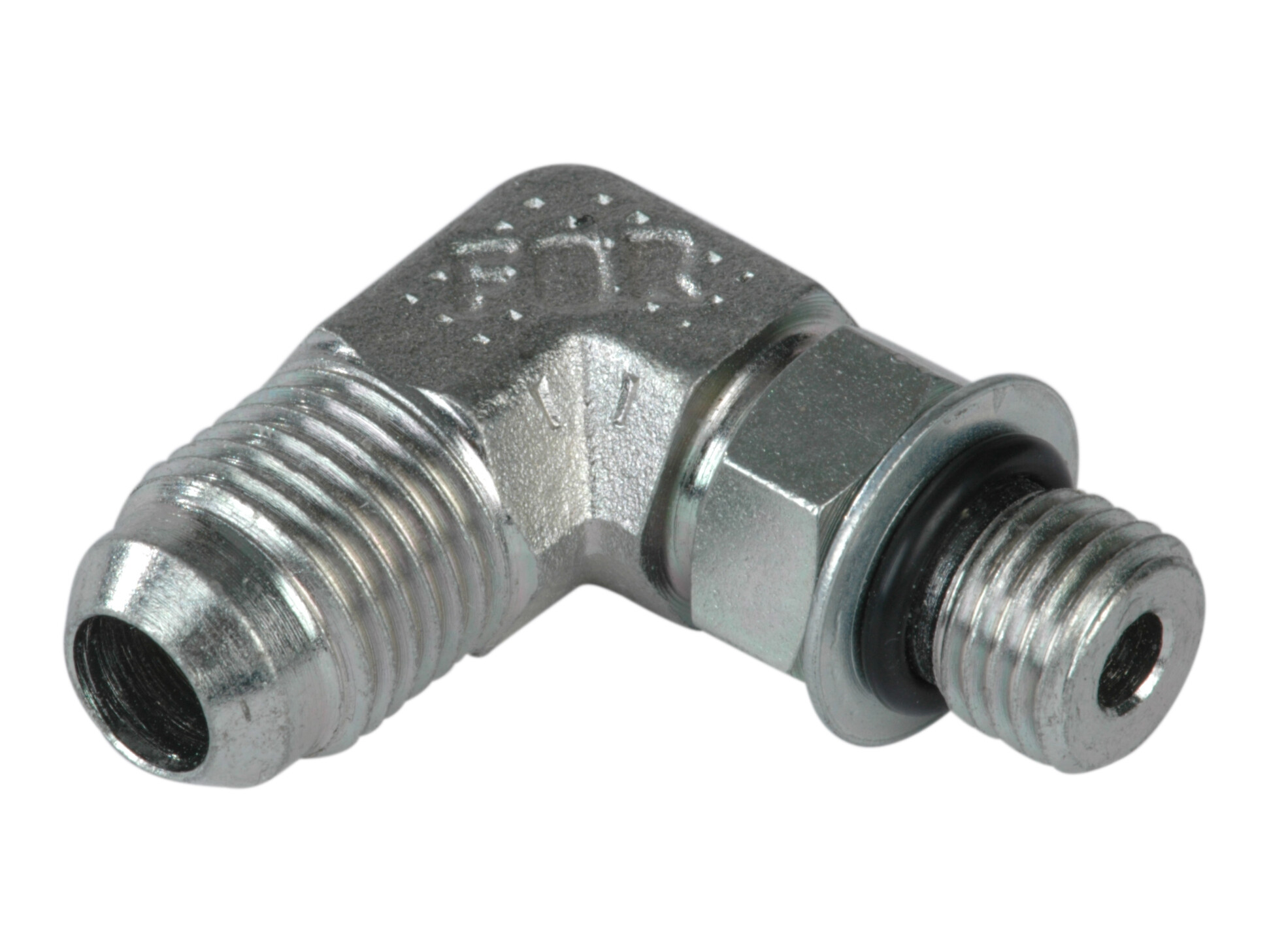

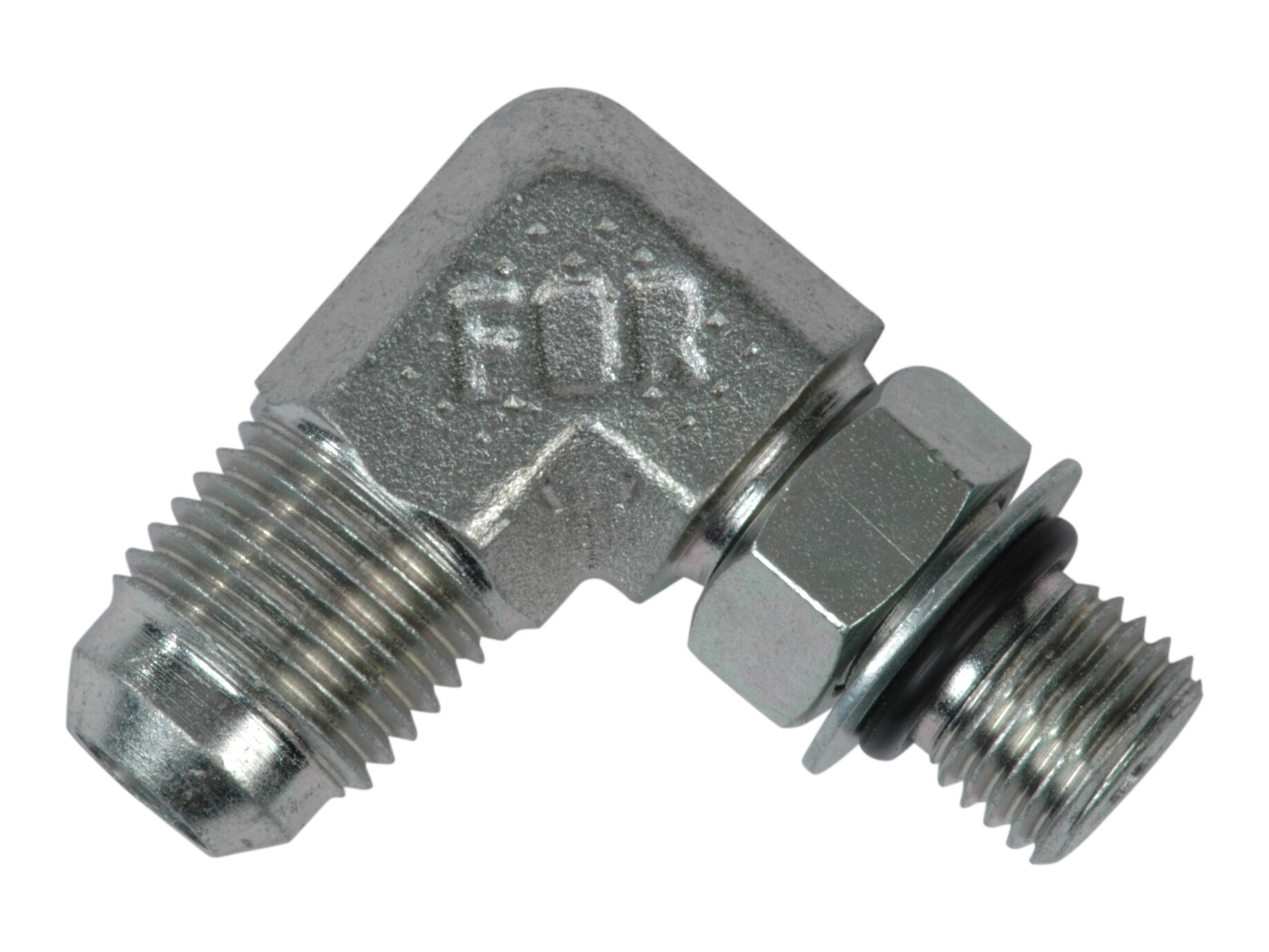

Vinkelindskruning 90 gr 9/16-18 JIC udv x 7/16-20 UNF udv

Vinkelindskruning 90 gr 9/16-18 JIC udv x 7/16-20 UNF udv

Partnumber:

CO-10-7/16

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (2)

Støttering Ø10

Partnumber: B-10

Omløber 9/16-18 JIC Nøglevidde 17mm

Partnumber: J-10

Specifications
Dimensions and shipping

Diameter rør

10 mm

Dimension B

27 mm

Dimension C

30 mm

Dimension CH

14 mm

Dimension F

7/16-20 UNF

Dimension J

9/16-18 JIC

Dimension T

10 mm

Gevind udvendig

9/16-18 JIC

Gevind udvendig

7/16-20 UNF

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Mærke navn

FOR

Overfladebehandling

El-forzinket / hvidkromatiseret

Tryk maks.

420 bar

Vinkel

90 °

Package size

0 pcs

Barcode

5704334273912

Gross weight

0,05 Kg

Net weight

0,05 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Vinkelindskruning 90 gr 9/16-18 JIC udv x 7/16-20 UNF udv

Note: Opening 3D files requires a program that supports the file format
