S220-10-11U adaptor UNF
\ufeff
-

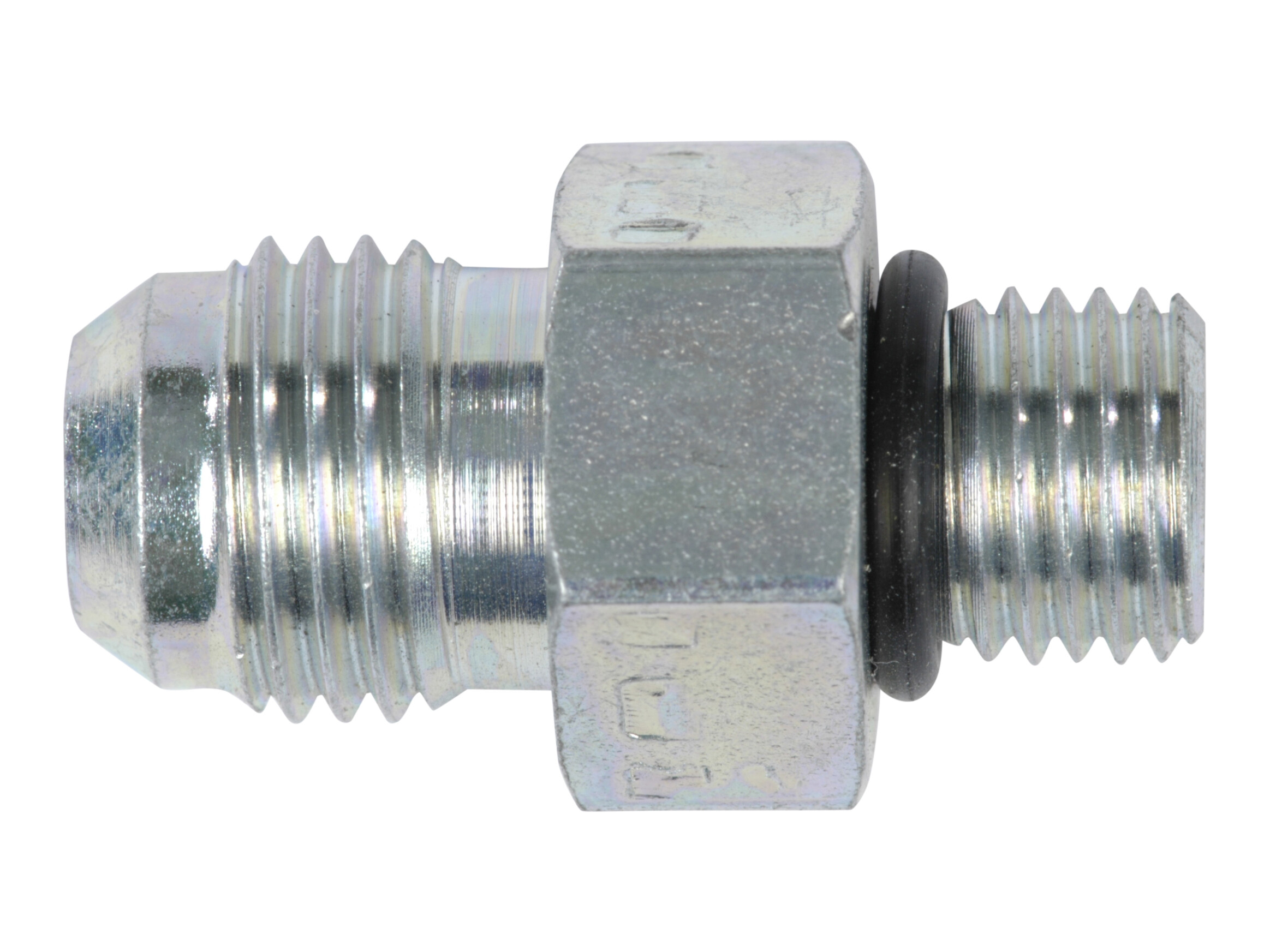

JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
M-10-7/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
32,5 mm
Angle
0 °
B
14 mm
Brand Name
FOR
CH
16 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
9 mm
Diameter pipe
10 mm
Dimension F
7/16-20 UNF
J
9/16-18 JIC
Material
Steel
Model code
SA102012/1011
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
Electro-galvanized / White chromatized
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer
7/16-20 UNF
Förpackningsstorlek
0 pcs
Streckkod
5704295845364
Bruttovikt
0,03 Kg
Nettovikt
0,03 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
\ufeff
-
JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
