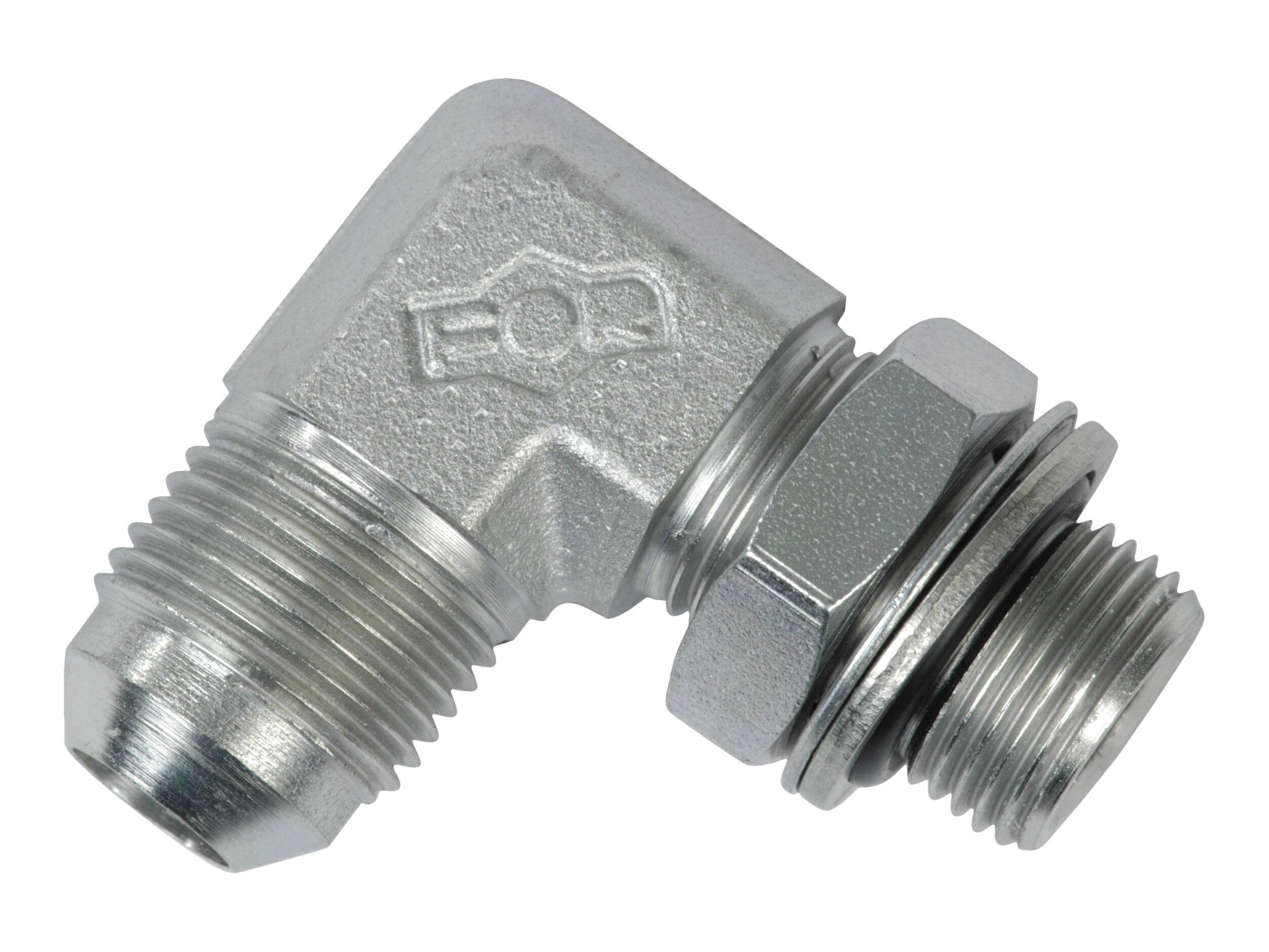

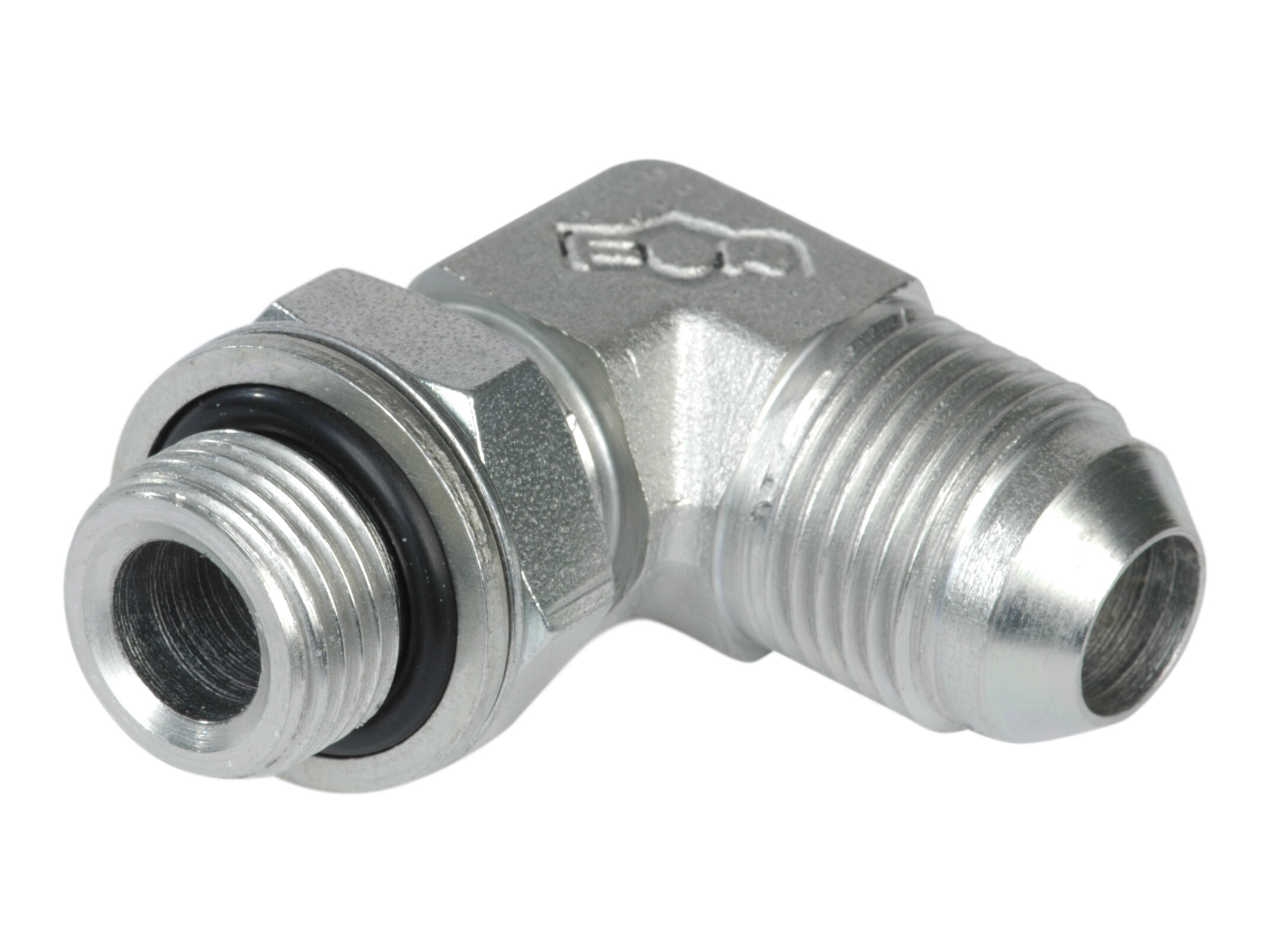

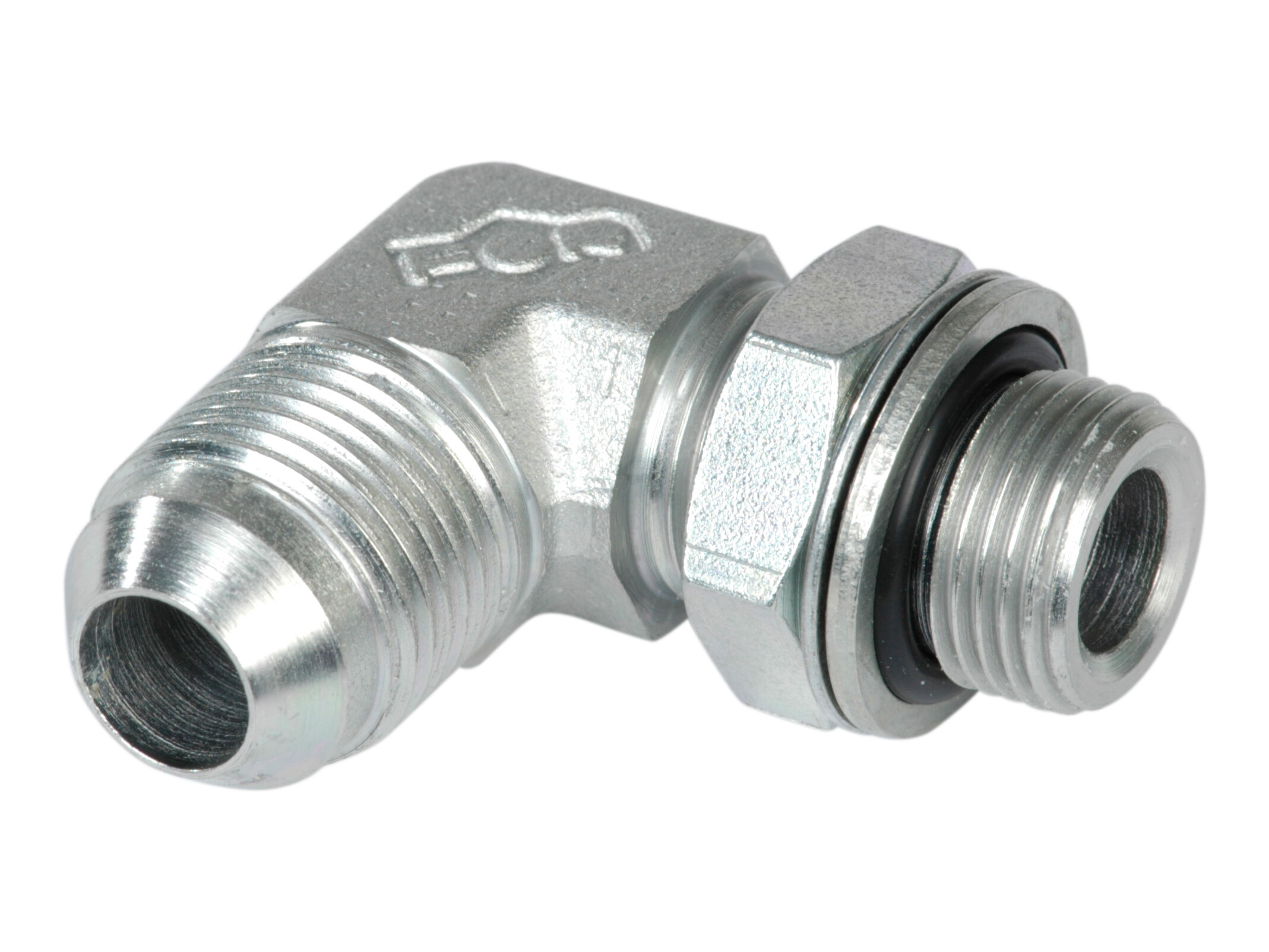

CO-12-3/8 - Vinkelindskruning 90 gr 3/4-16 JIC udv x 3/8 BSP udv
Vinkelindskruning 90 gr 3/4-16 JIC udv x 3/8 BSP udv
Partnumber:
CO-12-3/8
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
Dimension B
31.5 mm
Dimension C
36.5 mm
Dimension CH
22 mm
Dimension F
G 3/8 BSP
Dimension J
3/4-16 JIC
Dimension T
12 mm
Material
Stål
Model code
A107039/1217
Pressure max.
250 bar
Standard ISO
ISO 1179
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
3/4-16 JIC
Thread outer
G 3/8 BSP
Package size
0 pcs
Barcode
5704334273981
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 90 gr 3/4-16 JIC udv x 3/8 BSP udv
Note: Opening 3D files requires a program that supports the file format
