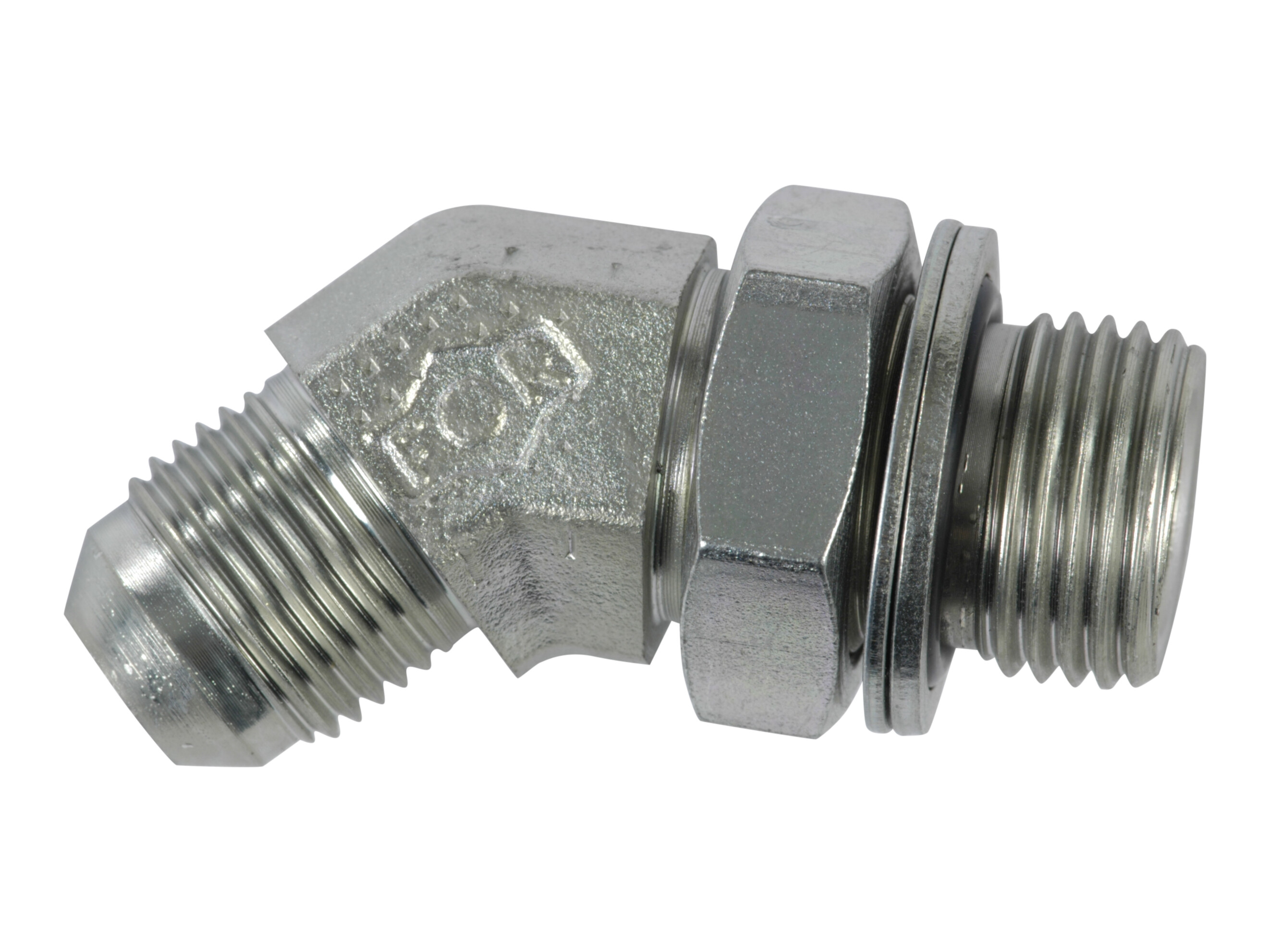

Vinkelindskruning 45 gr 3/4-16 JIC udv x 1/2 BSP udv
Vinkelindskruning 45 gr 3/4-16 JIC udv x 1/2 BSP udv
Partnumber:
VO-12-1/2
Package size:
0 stk
Min. order quantity is:
1 stk
Angle
45 °
B
25,5 mm
Brand Name
FOR
C
38,5 mm
CH
27 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
F
G 1/2 BSP
J
3/4-16 JIC
Material
Stål
Model code
A105026/1221
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
El-forzinket / hvidkromatiseret
T
12 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
3/4-16 JIC
Thread outer
G 1/2 BSP
Package size
0 stk
Barcode
5704334033301
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 45 gr 3/4-16 JIC udv x 1/2 BSP udv
Note: Opening 3D files requires a program that supports the file format
