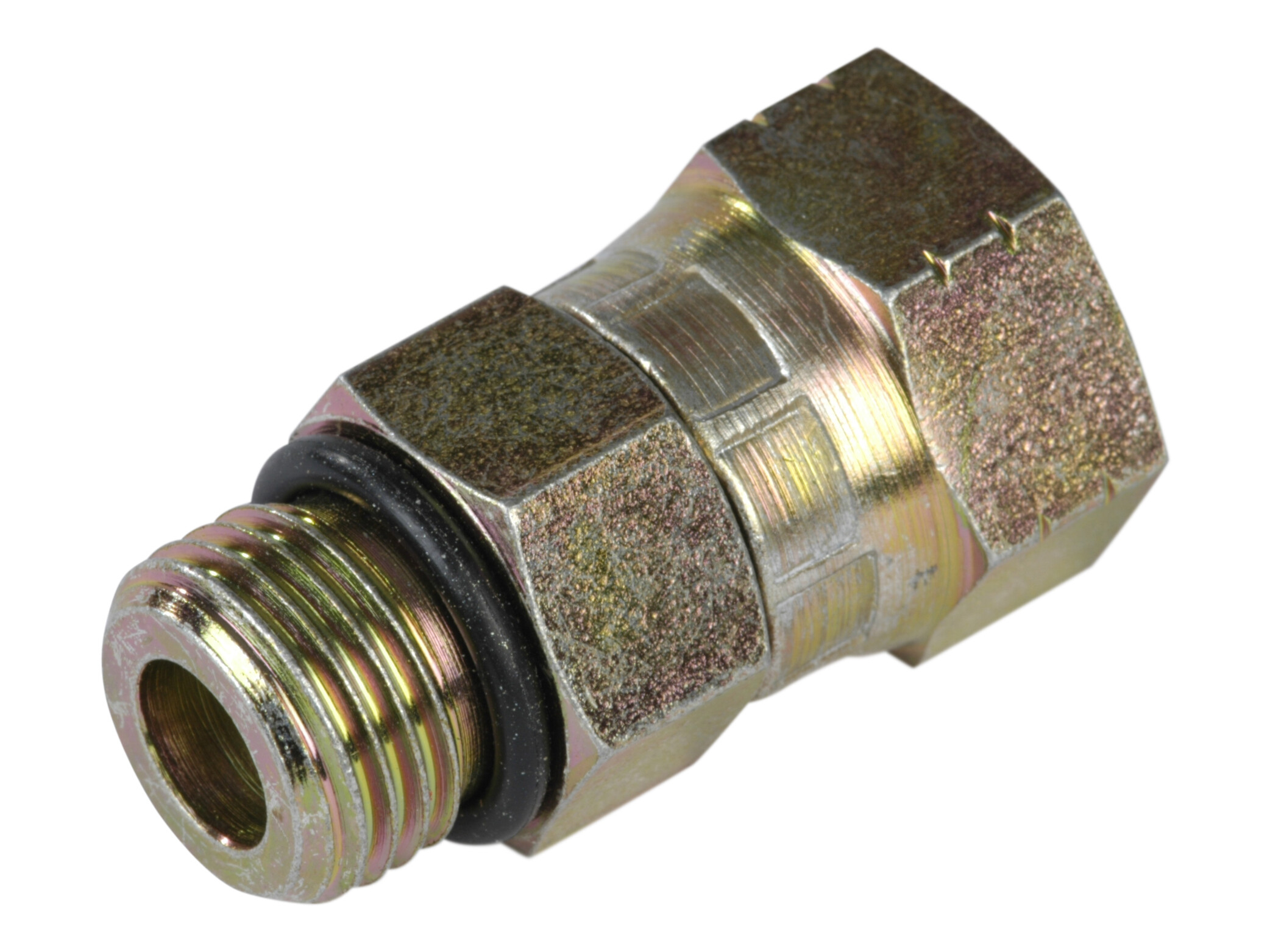

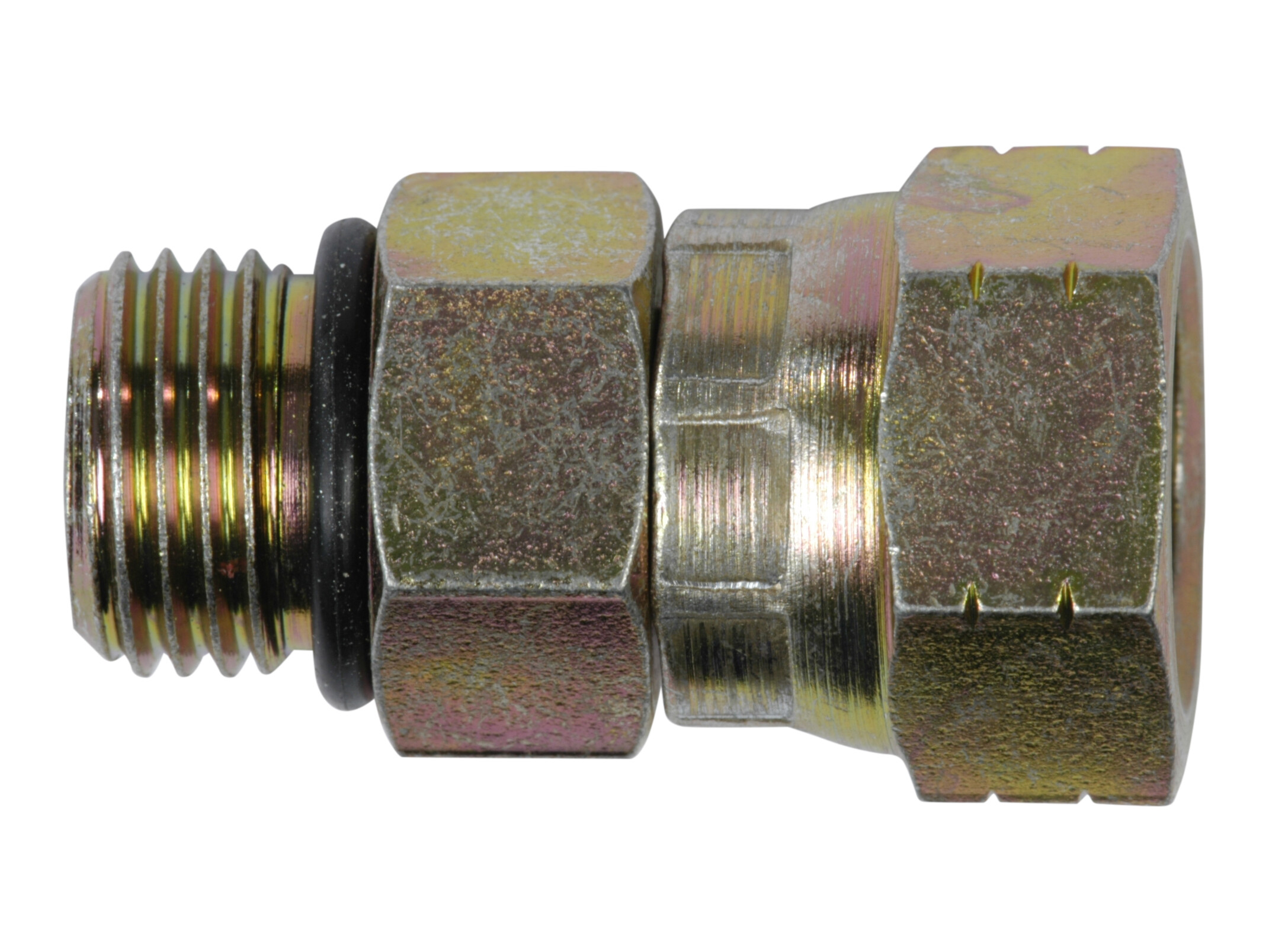

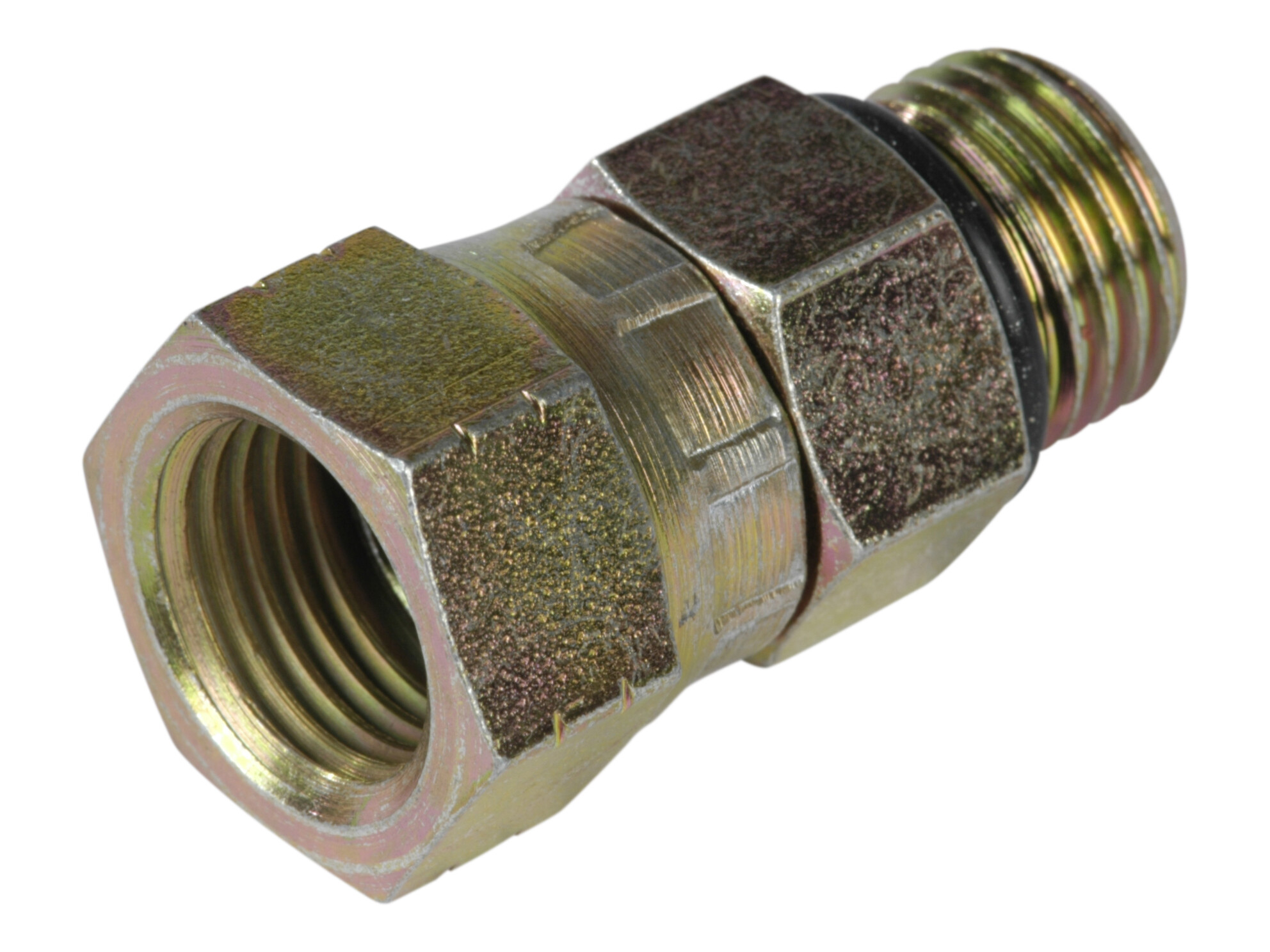

Indskruning 9/16-18 JIC omløber x 9/16-18 UNF udv

Indskruning 9/16-18 JIC omløber x 9/16-18 UNF udv

Varenummer:

FG-10-9/16

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Dimension A

40.5 mm

Dimension B

21.5 mm

Dimension CH

19 mm

Dimension CH1

17 mm

Dimension D

10 mm

Dimension F

9/16-18 UNF

Dimension J

9/16-18 JIC

Gevind indvendig

9/16-18 JIC

Gevind udvendig

9/16-18 UNF

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Mærke navn

FOR

Overfladebehandling

El-forzinket / hvidkromatiseret

Tryk maks.

350 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334274285

Gross weight

0,04 Kg

Net weight

0,04 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Indskruning 9/16-18 JIC omløber x 9/16-18 UNF udv

Note: Opening 3D files requires a program that supports the file format
