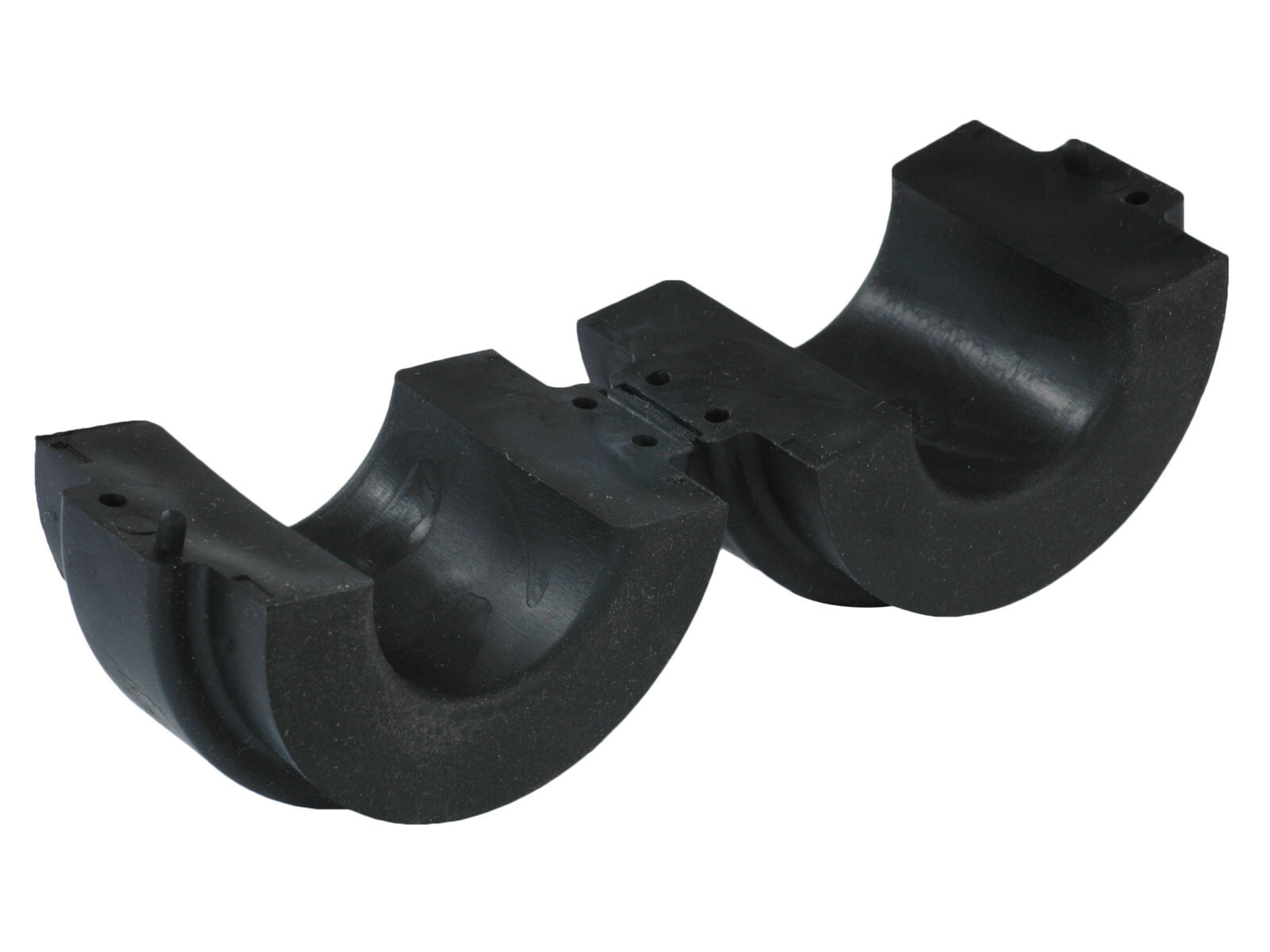

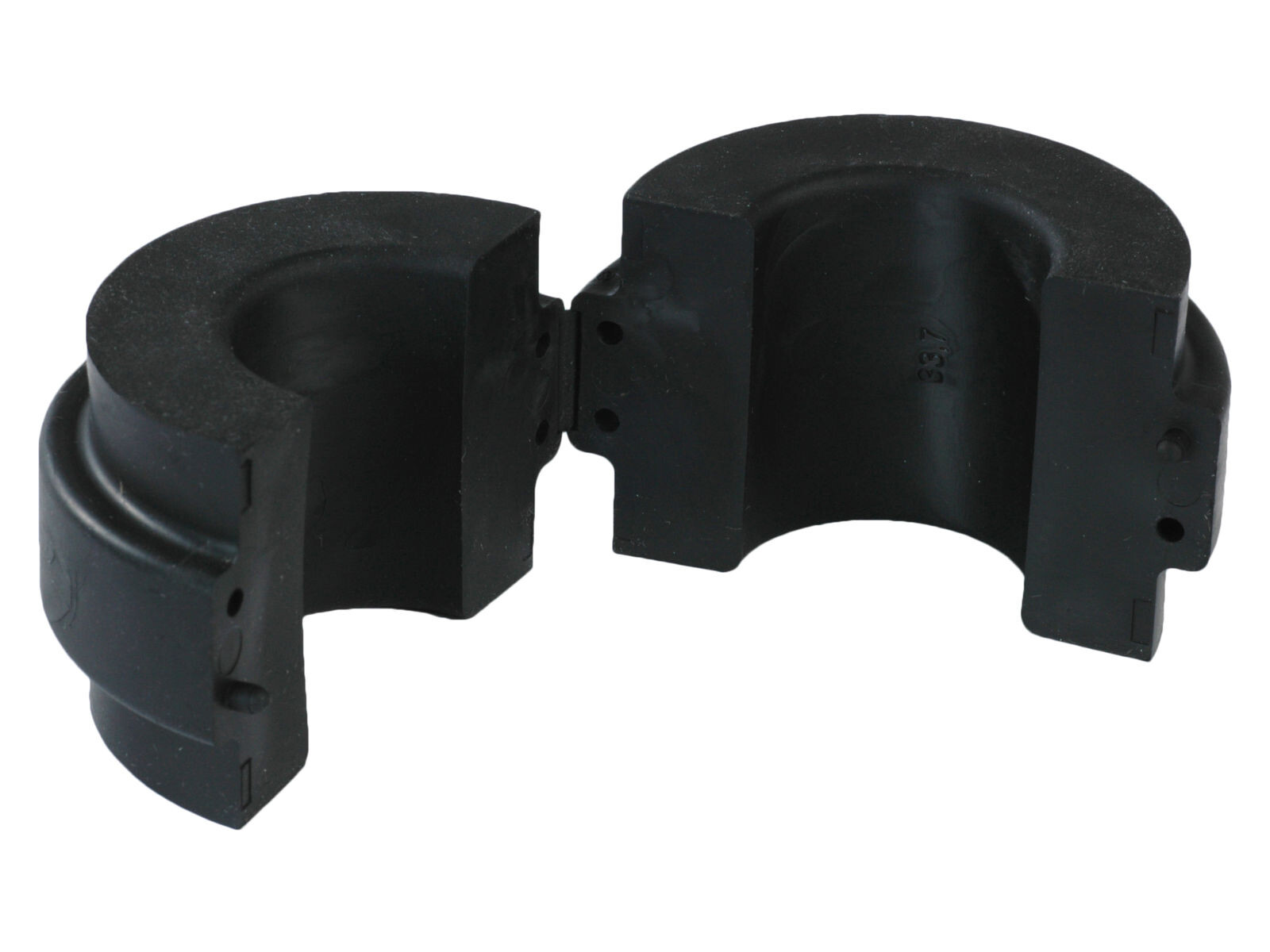

Clamp rubber insert ø50 - 6S
Rubber insert for a pipe clamp, designed to support and cushion a pipe with 50 mm outside diameter inside a heavy series clamp body (group 6S) according to DIN 3015 Part 2.
The insert is black thermoplastic elastomer with hardness 73 Shore A and is used between the clamp body and the pipe to provide a fitted contact surface. The 45 mm width supports stable positioning in the clamp assembly. Temperature range: -40 °C to +125 °C.
Typical Applications
- Clamped mounting and routing of hydraulic pipes in heavy-duty pipe clamp assemblies
- Replacement insert for existing DIN 3015 Part 2 clamp installations
Partnumber:
RI6050
Package size:
1 pcs
Min. order quantity is:
1 pcs
Brand Name
Stauff
Color
Black
DIN size
4
Diameter pipe
50 mm
Group Stauff
6S
Material
TPE
Shore
73
Standard DIN
DIN 3015 part 2
Temperature max.
+125 °C
Temperature min.
-40 °C
Width
45 mm
Package size
1 pcs
Barcode
242408
Gross weight
0,07 Kg
Net weight
0,07 Kg
Country of origin
DEU
Intrastat code
39259010
Rubber insert for a pipe clamp, designed to support and cushion a pipe with 50 mm outside diameter inside a heavy series clamp body (group 6S) according to DIN 3015 Part 2.
The insert is black thermoplastic elastomer with hardness 73 Shore A and is used between the clamp body and the pipe to provide a fitted contact surface. The 45 mm width supports stable positioning in the clamp assembly. Temperature range: -40 °C to +125 °C.
Typical Applications
- Clamped mounting and routing of hydraulic pipes in heavy-duty pipe clamp assemblies
- Replacement insert for existing DIN 3015 Part 2 clamp installations
