Clamp rubber insert ø48 - 6S

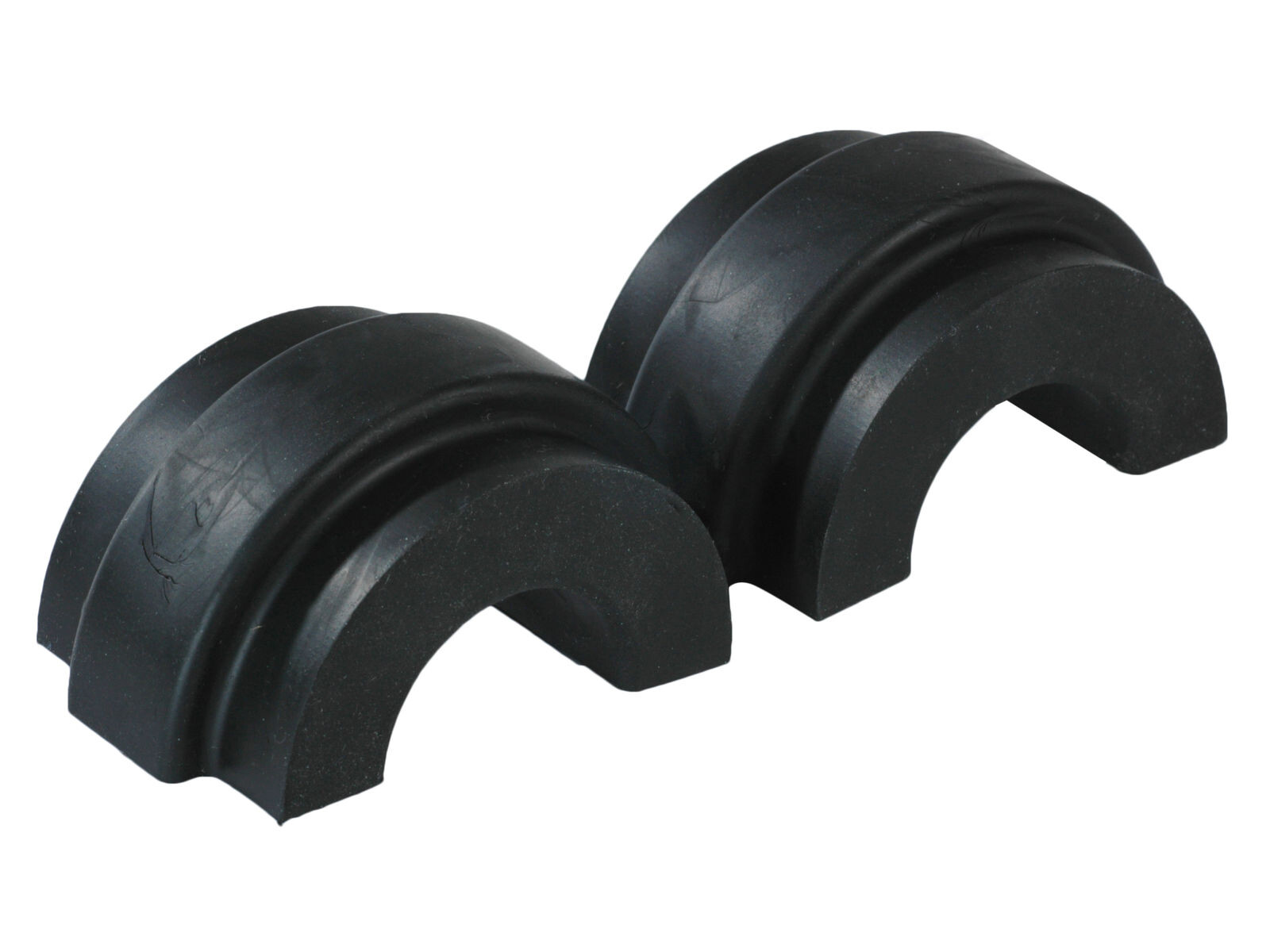

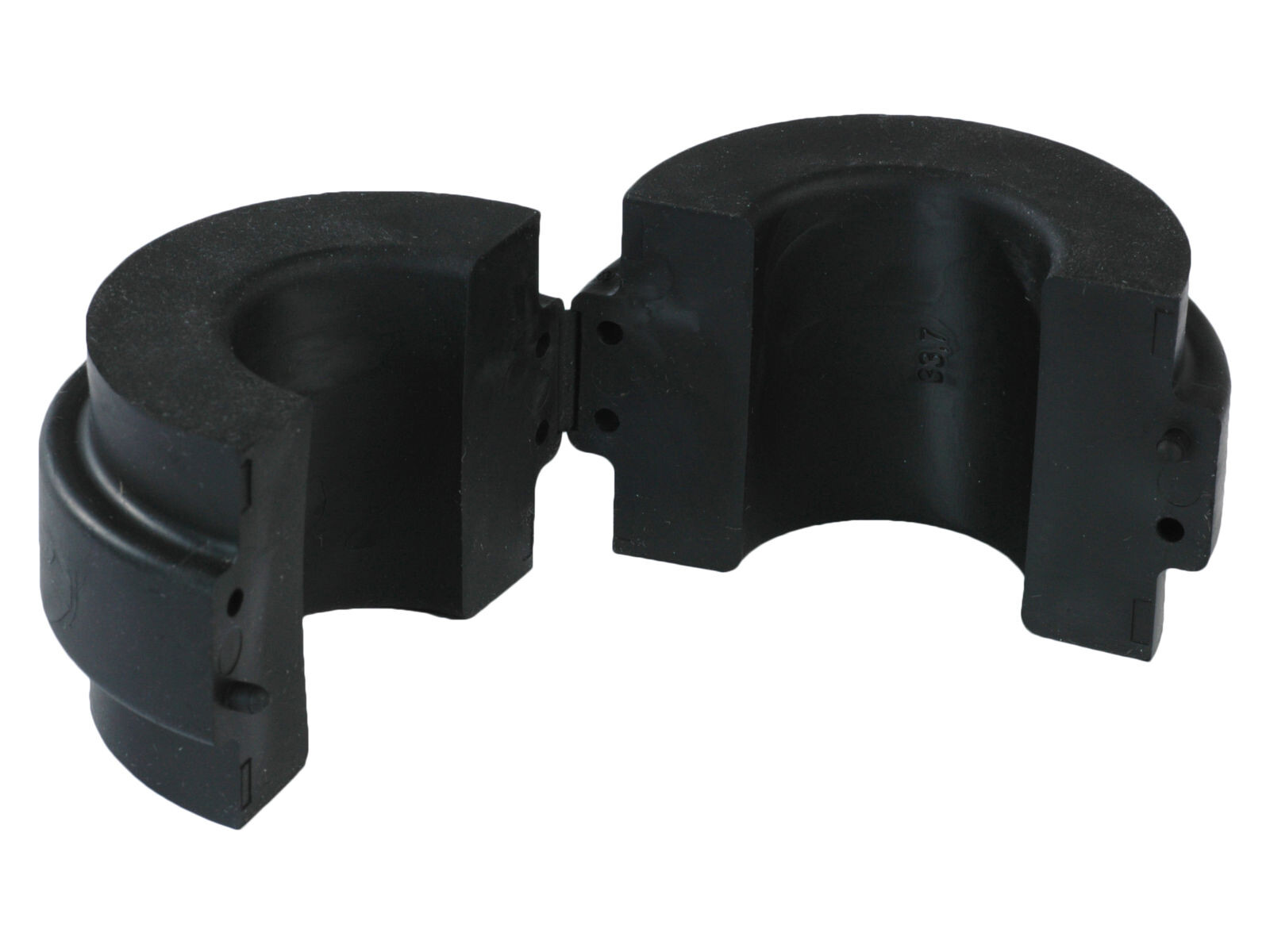

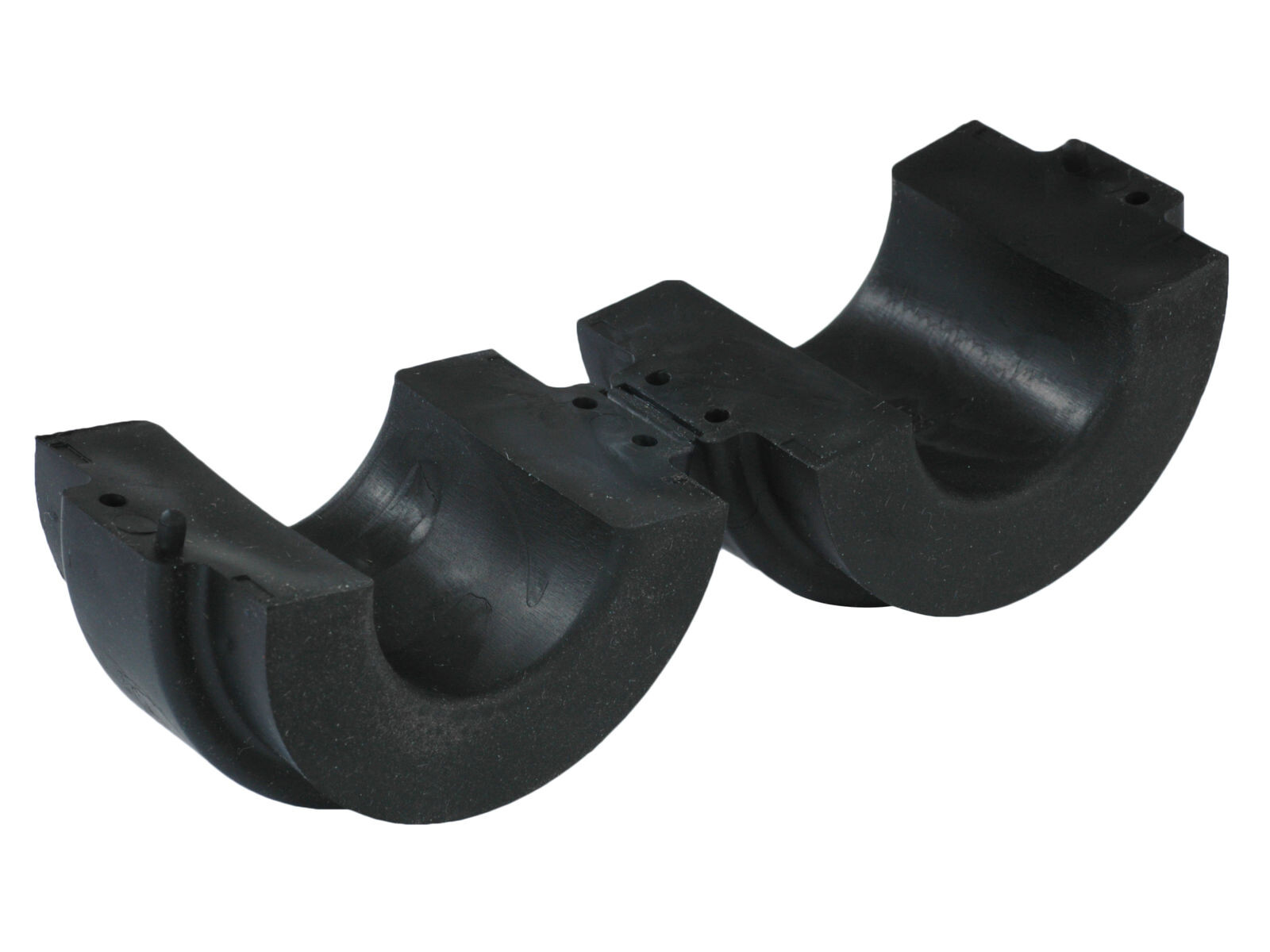

Elastomer insert for a pipe clamp assembly, designed to locate and cushion a pipe or tube with 48 mm outside diameter. The insert fits heavy series group 6S clamp bodies and is intended for use in DIN 3015 part 2 clamp systems.
The insert is black and has a hardness of 73 Shore A. With an insert width of 45 mm and an operating temperature range from -40 to +125 °C, it is selected primarily by matching the pipe outside diameter, clamp series group, and the applicable DIN size.
Typical Applications
- Pipe and tube clamping in hydraulic installations using DIN 3015 part 2 clamp systems
- Line routing and support where a 48 mm outside diameter pipe must be held in a heavy series clamp body
Varenummer:
RI6048
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Stauff
Color
Black
DIN size
4
Diameter pipe
48 mm
Group Stauff
6S
Material
TPE
Shore
73
Standard DIN
DIN 3015 part 2
Temperature max.
+125 °C
Temperature min.
-40 °C
Width
45 mm
Pakke str.
1 pcs
Stregkode
252980
Brutto vægt
0,08 Kg
Netto vægt
0,08 Kg
Oprindelsesland
DEU
Intrastat varekode
39259010
Elastomer insert for a pipe clamp assembly, designed to locate and cushion a pipe or tube with 48 mm outside diameter. The insert fits heavy series group 6S clamp bodies and is intended for use in DIN 3015 part 2 clamp systems.
The insert is black and has a hardness of 73 Shore A. With an insert width of 45 mm and an operating temperature range from -40 to +125 °C, it is selected primarily by matching the pipe outside diameter, clamp series group, and the applicable DIN size.
Typical Applications
- Pipe and tube clamping in hydraulic installations using DIN 3015 part 2 clamp systems
- Line routing and support where a 48 mm outside diameter pipe must be held in a heavy series clamp body
