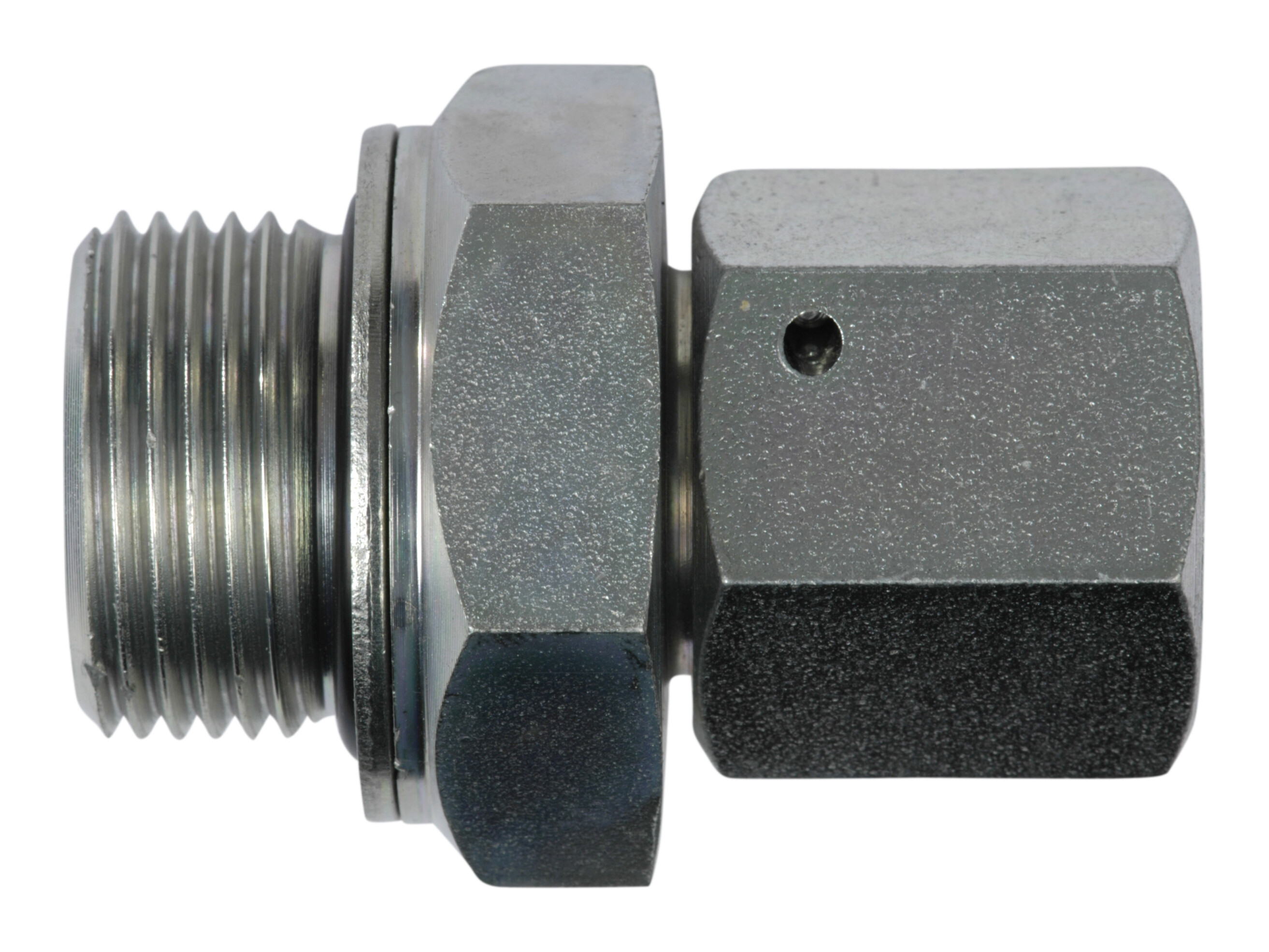

S180-16-26G adaptor with nut
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- O-ring NBR, Shore-A 85 +5/-0 and support ring
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
Artikelnummer:
JEVGE-10-12
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
A
55 mm
Angle
0 °
B
26 mm
Brand Name
FOR
CH
36 mm
CH1
27 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
14 mm
Diameter pipe
16 mm
F
G 3/4 BSP
J
7/8-14 JIC
Material
Steel
Model code
A102177/1626
Pressure max.
280 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
16 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread inner
7/8-14 JIC
Thread outer
G 3/4 BSP
Förpackningsstorlek
1 st
Streckkod
143788
Bruttovikt
0,22 Kg
Nettovikt
0,22 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- O-ring NBR, Shore-A 85 +5/-0 and support ring
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
