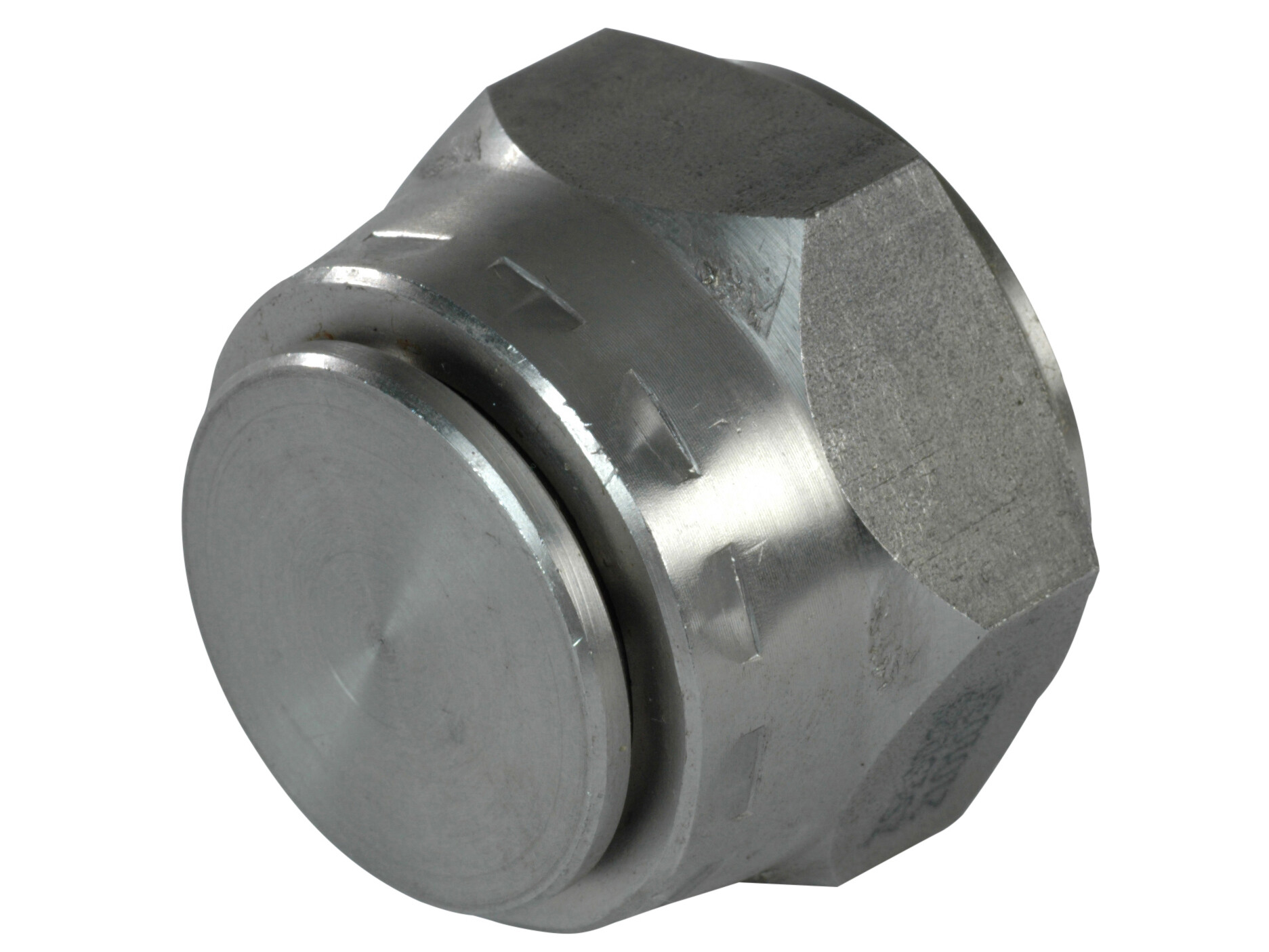

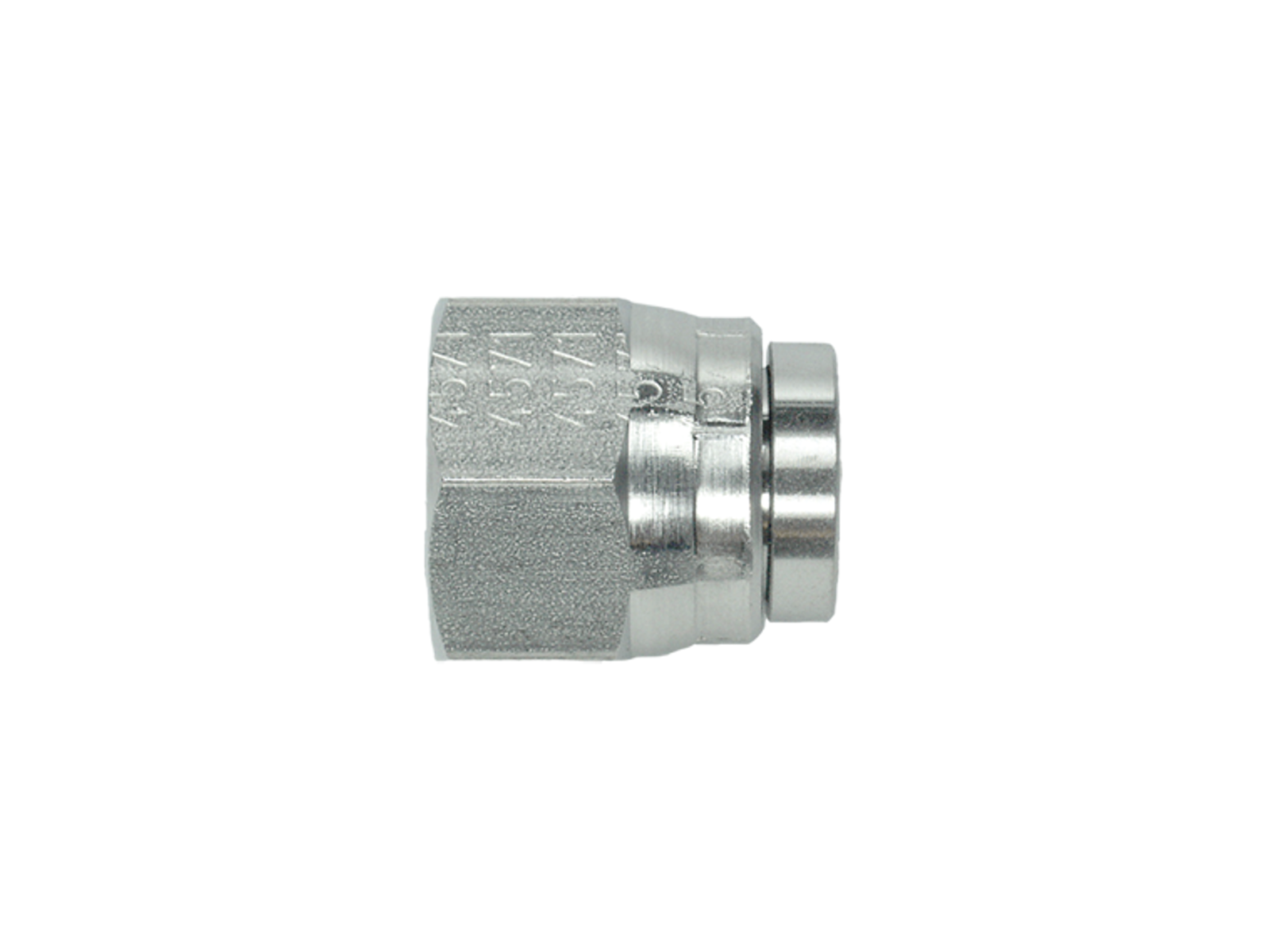

End cap adapter JIC female stainless

End cap adapter JIC female stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread inner Diameter pipe Pressure max.
HS130-04 JIC swivel cap 7/16-20 JIC 6 mm 350 bar
HS130-06 JIC swivel cap 9/16-18 JIC 10 mm 350 bar
HS130-08 JIC swivel cap 3/4-16 JIC 12 mm 350 bar
HS130-12 Swivel cap 1.1/16-12 JIC 18-20 mm 350 bar
HS130-16 Hattu FNTX 1.5/16-12 JIC 25 mm 280 bar
HS130-24 Hattu FNTX 1.7/8-12 JIC 35-28 mm 210 bar
Brand Name
PH Industrie-Hydraulik
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Temperature max.
+400
Temperature min.
-60
