    Oil-Air cooler TT 05 rail 24VDC

    Oil-Air cooler TT 05 rail 24VDC

    Partnumber:
    ASATT05RD02
    Package size:
    1 pcs
    Min. order quantity is:
    1 pcs
    Foot mounting TT 07-36 (heavy duty = mobile use)
    Partnumber: ILLEFUSSTTHDK
    Mounting feet set ASA-TT 07 - 25
    Partnumber: ILLEFUSSTTK
    TT Connectorset nominal size 25 Connector: G 1"
    Partnumber: ILLZSET5G25
    TT-rail Connector Kit Mixed BSP1"
    Partnumber: ILLZSET5G25B
    Temperature control 24VDC
    Partnumber: ILLZTC24-2K
    Temperature switch BSP1/2" DIN-3P Set point 50C
    Partnumber: ILLZTH4765K
    Tempvakt BSP1/2" AMP Superseal 1.5 50° IP69K
    Partnumber: ILLZTH5069K
    Brand Name
    ASA
    By-pass valve
    No

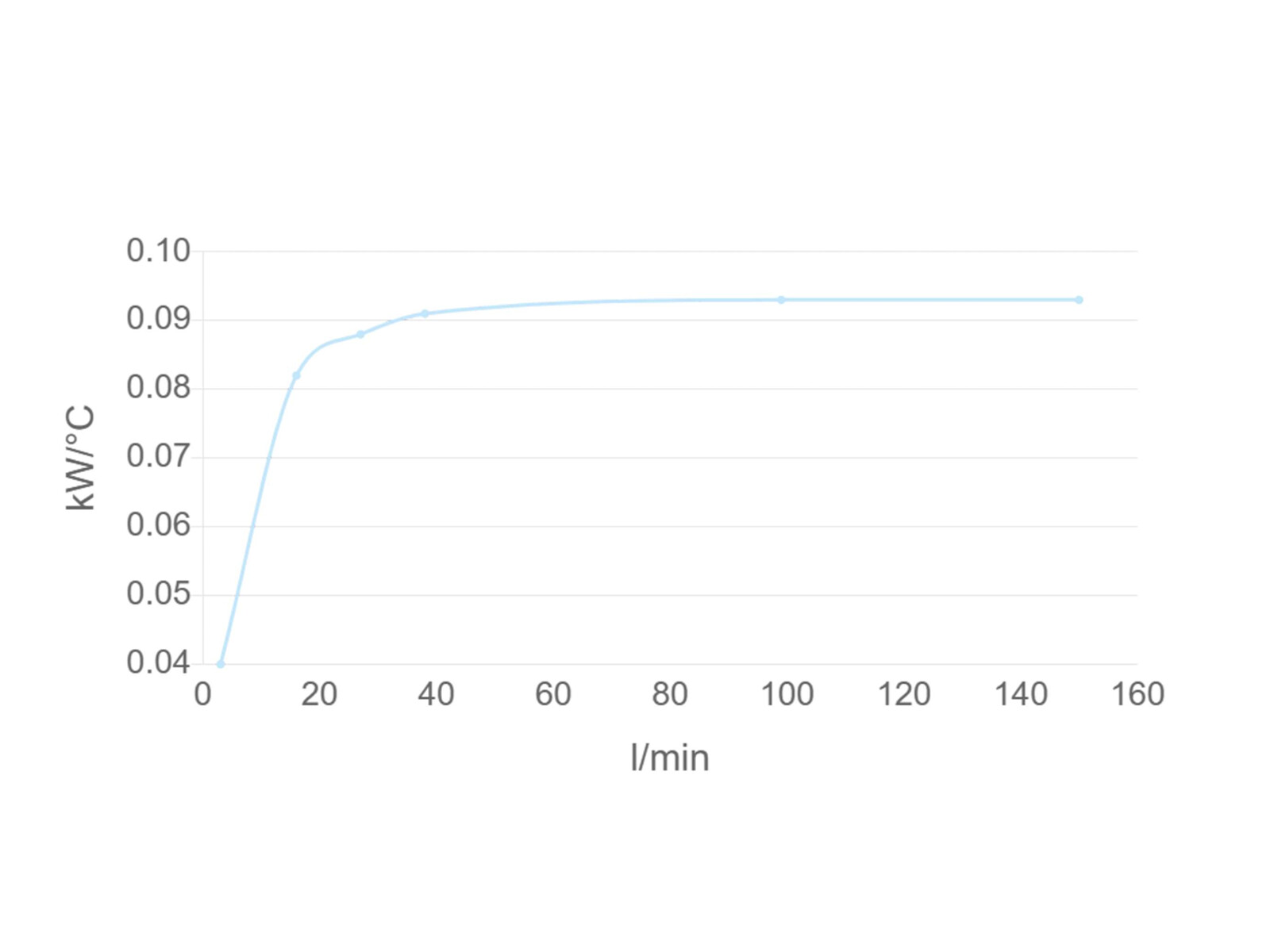

    Cooling efficiency
    0.09 kW/°C
    Current type
    DC
    Depth
    150 mm
    Flow rate nominal LMin
    90 lpm
    Height
    235 mm
    Material
    Aluminium
    Model code
    ASATT05RD02
    Noise level
    74 dB-A
    Pressure max.
    26 bar
    Temperature ambient max.
    +80 °C
    Temperature ambient min.
    -20 °C
    Temperature working fluid max.
    +80 °C
    Voltage
    24 V
    Width
    245 mm
    Package size
    1 pcs
    Barcode
    494763
    Gross weight
    4,30 Kg
    Net weight
    4,30 Kg
    Country of origin
    AT

    Oil-Air cooler TT 05 rail 24VDC

    Product datasheet
    Product overview
