    Artikelnummer Beskrivning Flange SAE/DIN Flange Diameter pipe Thread outer metric
    WFG3001L15 Flange clamp 2.1/2" SAE3000 - stainless AISI316L 3000 PSI 1/2 " 15 mm M22x1,5

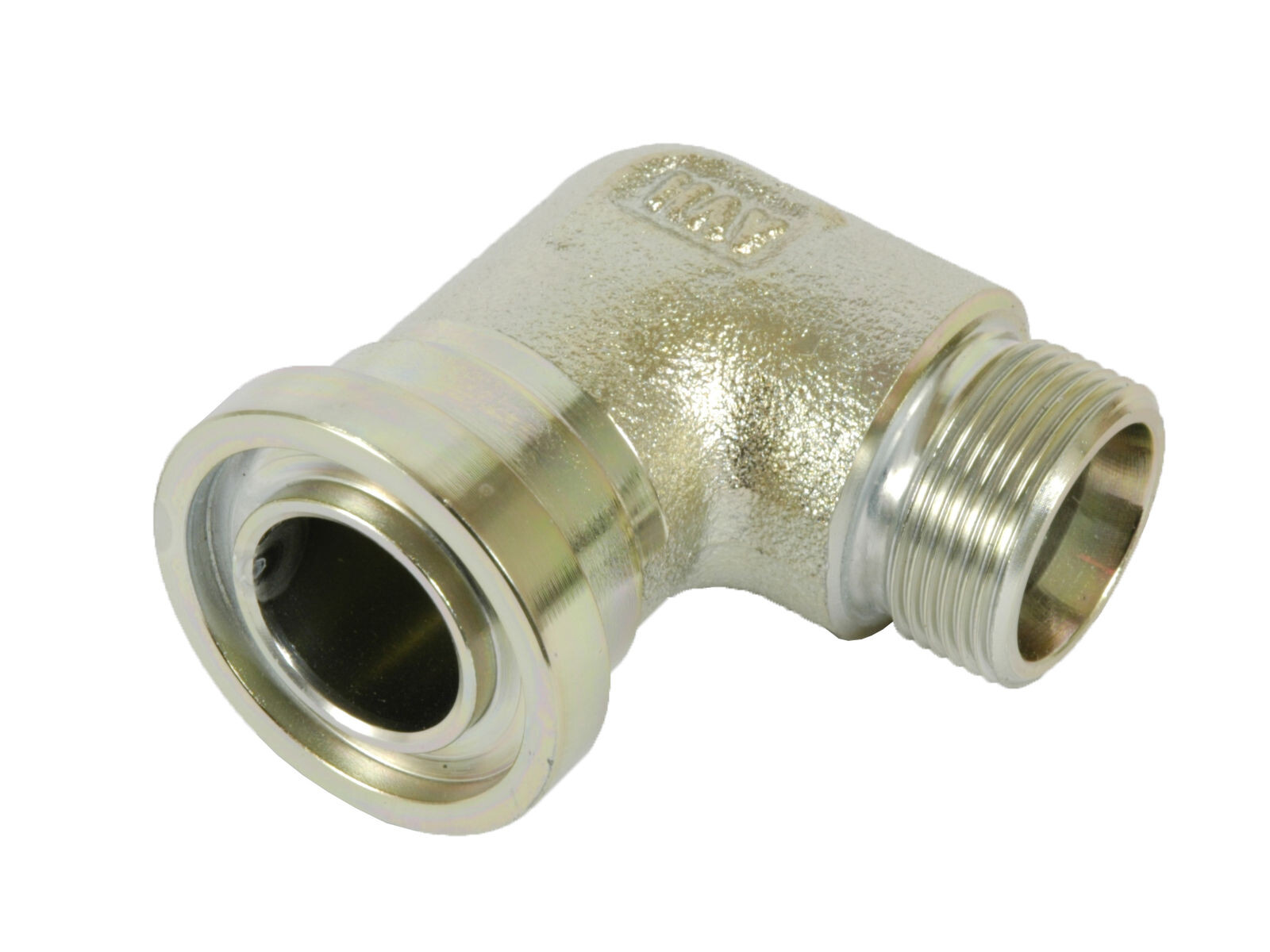

    WFG3002L18 Flange 90° 3/4" SAE3000 x 18L 3000 PSI 3/4 " 18 mm M26x1,5
    WFG3002L22 Flange 90° 3/4" SAE3000 x 22L 3000 PSI 3/4 " 22 mm M30x2
    WFG3003L28 Flange 90° 1" SAE3000 x 28L 3000 PSI 1 " 28 mm M36x2
    WFG3004L35 Flange 90° 1.1/4" SAE3000 x 35L 3000 PSI 1.1/4 " 35 mm M45x2
    WFG3005L42 Flange 90° 1.1/2" SAE3000 x 42L 3000 PSI 1.1/2 " 42 mm M52x2
    Angle
    90
    Brand Name
    Havit
    Corrosion resistance
    480 hours salt spray DIN EN 9227
    Flange SAE/DIN
    3000 PSI
    Material
    Steel
    Series
    L
    Shore
    90
    Standard ISO
    ISO 6162-1
    Standard SAE
    SAE J518 Code 61
    Surface treatment
    Zinc-Nickel plated
    Temperature max.
    +90
    Temperature min.
    -40
