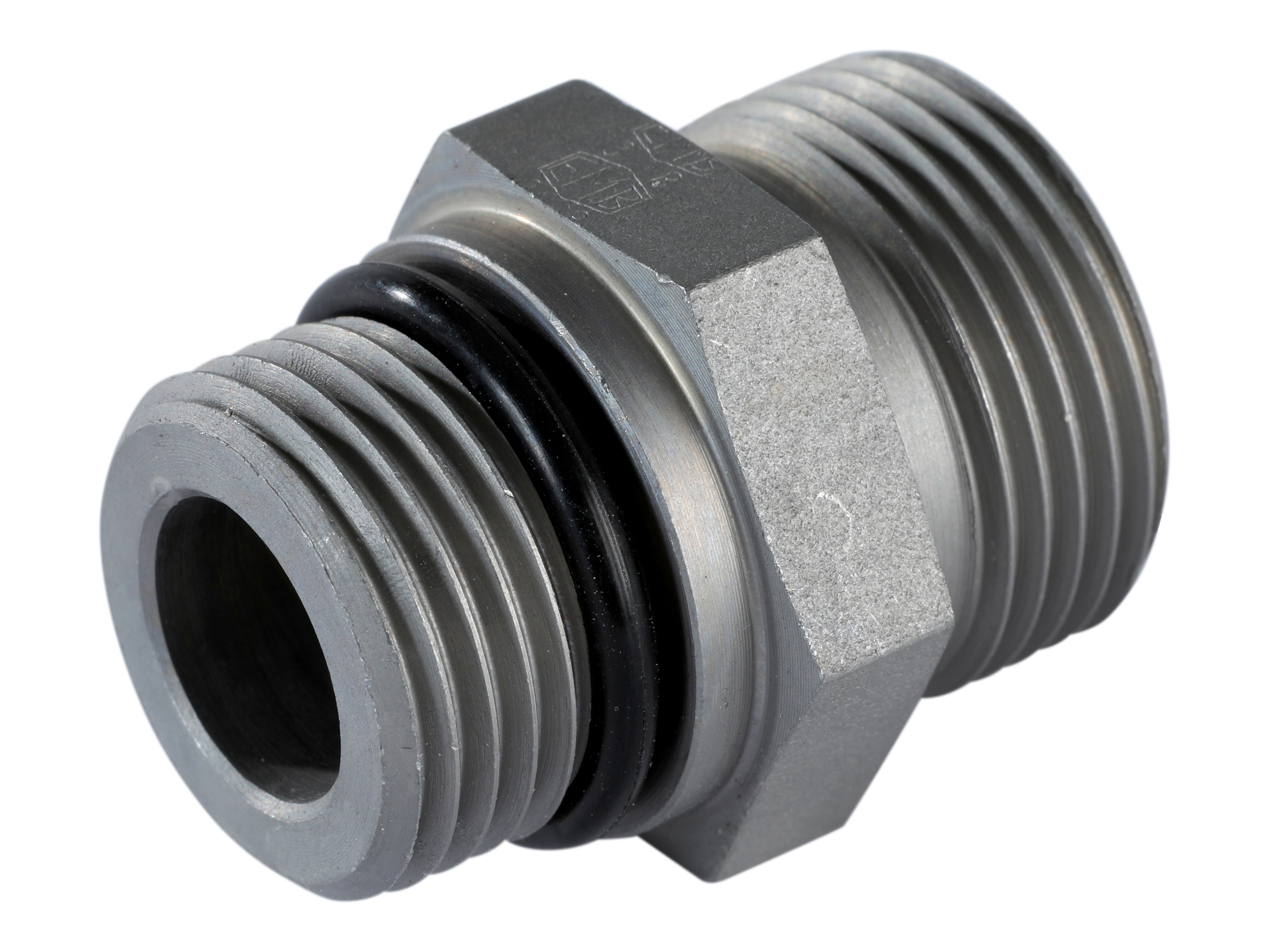

Straight fitting 0° - S-series - DIN male x UNF male stud O-ring seal

SELECT VARIANT

Partnumber	Description	Diameter rör	Gänga utv.	Tryck max.
A08S7/16UNFX	Stud fitting - ø8S x 7/16" UNF	8 mm	7/16-20 UNF	630 bar
A10S7/16UNFX	Stud fitting - ø10S x 7/16" UNF	10 mm	7/16-20 UNF	630 bar
A10S9/16UNFX	Stud fitting - ø10S x 9/16" UNF	10 mm	9/16-18 UNF	630 bar
A12S3/4UNFX	Stud fitting - ø12S x 3/4" UNF	12 mm	3/4-16 UNF	630 bar
A12S9/16UNFX	Stud fitting - ø12S x 9/16" UNF	12 mm	9/16-18 UNF	630 bar
A16S3/4UNFX	Stud fitting - ø16S x 3/4" UNF	16 mm	3/4-16 UNF	630 bar
A16S7/8UNFX	Adapter 16S, UNF 7/8''	16 mm	7/8-14 UNF	630 bar
A20S1516UNFX	Stud fitting - ø20S x 1.5/16-12 UNF	20 mm	1.5/16-12 UNF	400 bar
A20S3/4UNFX	Stud fitting - ø20S x 3/4" UNF	20 mm	3/4-16 UNF	400 bar
A20S7/8UNFX	Stud fitting - ø20S x 7/8 UNF	20 mm	7/8-14 UNF	400 bar
A25S1516UNFX	Stud fitting - ø25S x 1.5/16" UNF	25 mm	1.5/16-12 UNF	400 bar
A30S15/8UNFX	Stud fitting - ø30S x 1.5/8" UNF	30 mm	1.5/8-12 UNF	400 bar
A30S1516UNFX	Stud fitting - ø30S x 1.5/16" UNF	30 mm	1.5/16-12 UNF	400 bar
A38S15/8UNFX	Stud fitting - ø38S x 1.5/8" UNF	38 mm	1.5/8-12 UNF	400 bar
FXGE08S716U	Stud fitting - ø8S x 7/16" UNF	8 mm	7/16-20 UNF	630 bar
FXGE12S916U	Stud fitting - ø12S x 9/16" UNF	12 mm	9/16-18 UNF	630 bar
FXGE16S34U	Stud fitting - ø16S x 3/4" UNF	16 mm	3/4-16 UNF	630 bar
FXGE20S1116U	Adapter 20S, UNF 1.1/16''	20 mm	1.1/16-12 UNF	400 bar
FXGE20S1516U	Adapter 20S, UN1.5/16''	20 mm	1.5/16-12 UNF	400 bar
FXGE25S1516U	Stud fitting - ø25S x 1.5/16" UNF	25 mm	1.5/16-12 UNF	420 bar

Serie

Temperatur max.

+100

Temperatur min.

-35

Tillverkningsmaterial

Steel

Vinkel
