Stud fitting - ø12S x 9/16" UNF

Indskruning - ø12S x 9/16" UNF

Partnumber:

FXGE12S916U

Package size:

1 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

12 mm

Diameter pipe

12 mm

Dimension i

12 mm

36 mm

45 mm

16,5 mm

Material

Steel

Model code

XA12S91618UZN

Pressure max.

630 bar

REACH compliant

Yes

RoHs compliant

Yes

24 mm

Safety factor

Sealing material

NBR

Series

Surface treatment

Zinc-Nickel plated

Temperature max.

+100 °C

Temperature min.

-35 °C

Thread T

9/16-18 UNF

Thread outer

9/16-18 UNF

Thread outer metric

M20x1,5

7,5 mm

12 mm

Package size

1 pcs

Barcode

5704334904700

Gross weight

0,05 Kg

Net weight

0,05 Kg

Country of origin

DEU

Intrastat code

73071110

Product information

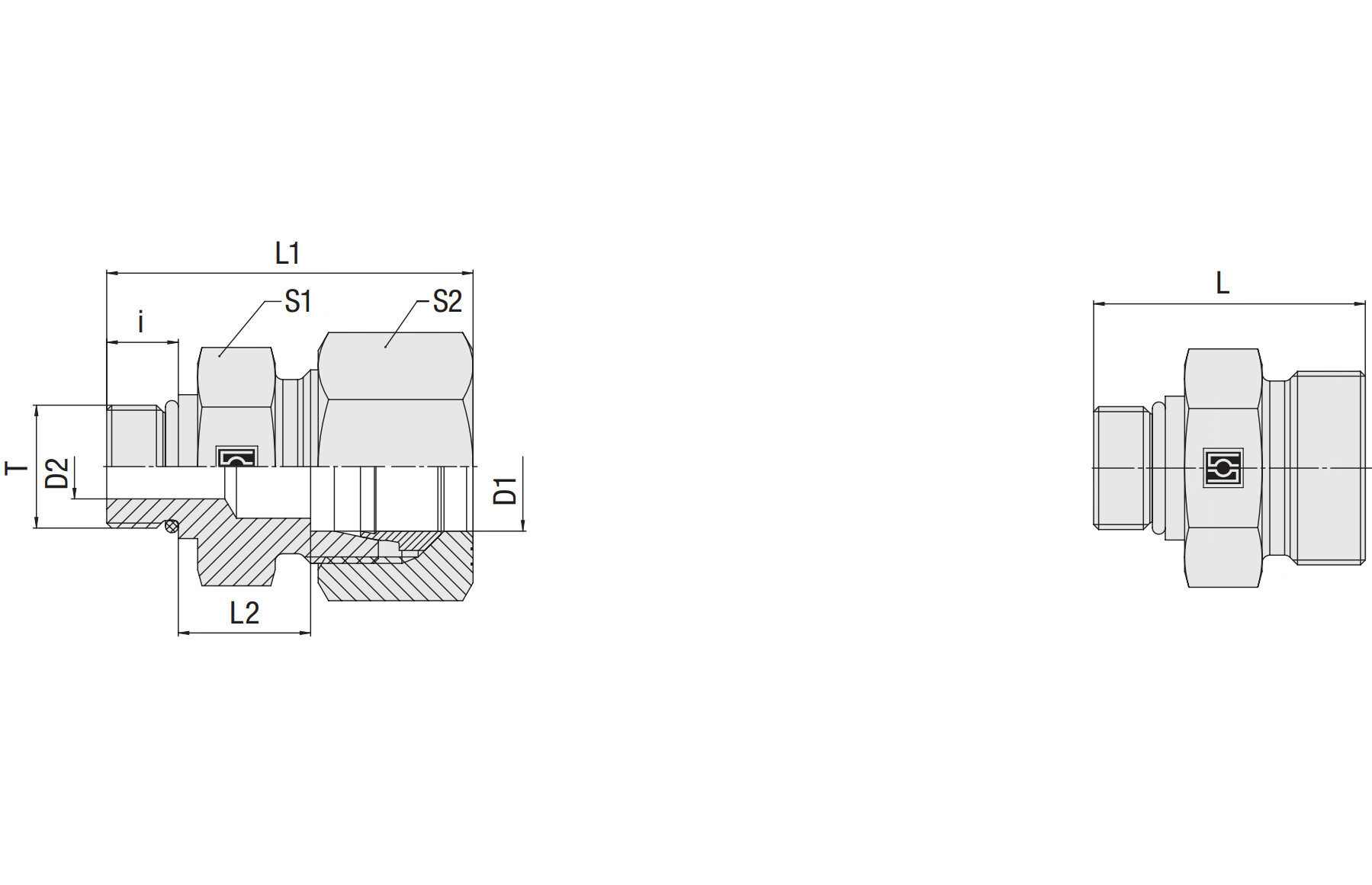

Measure sketch

Indskruning - ø12S x 9/16" UNF

Note: Opening 3D files requires a program that supports the file format
