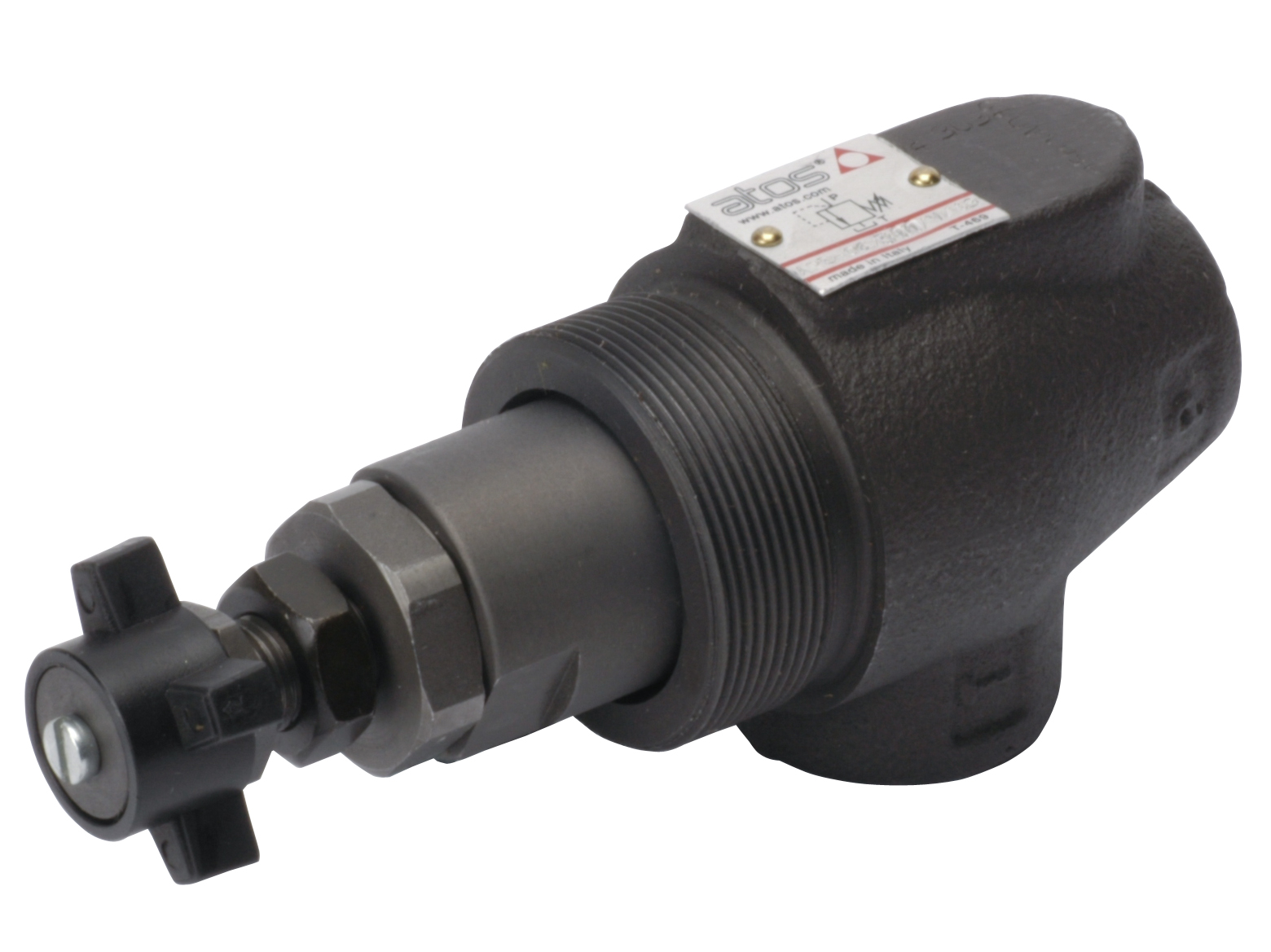

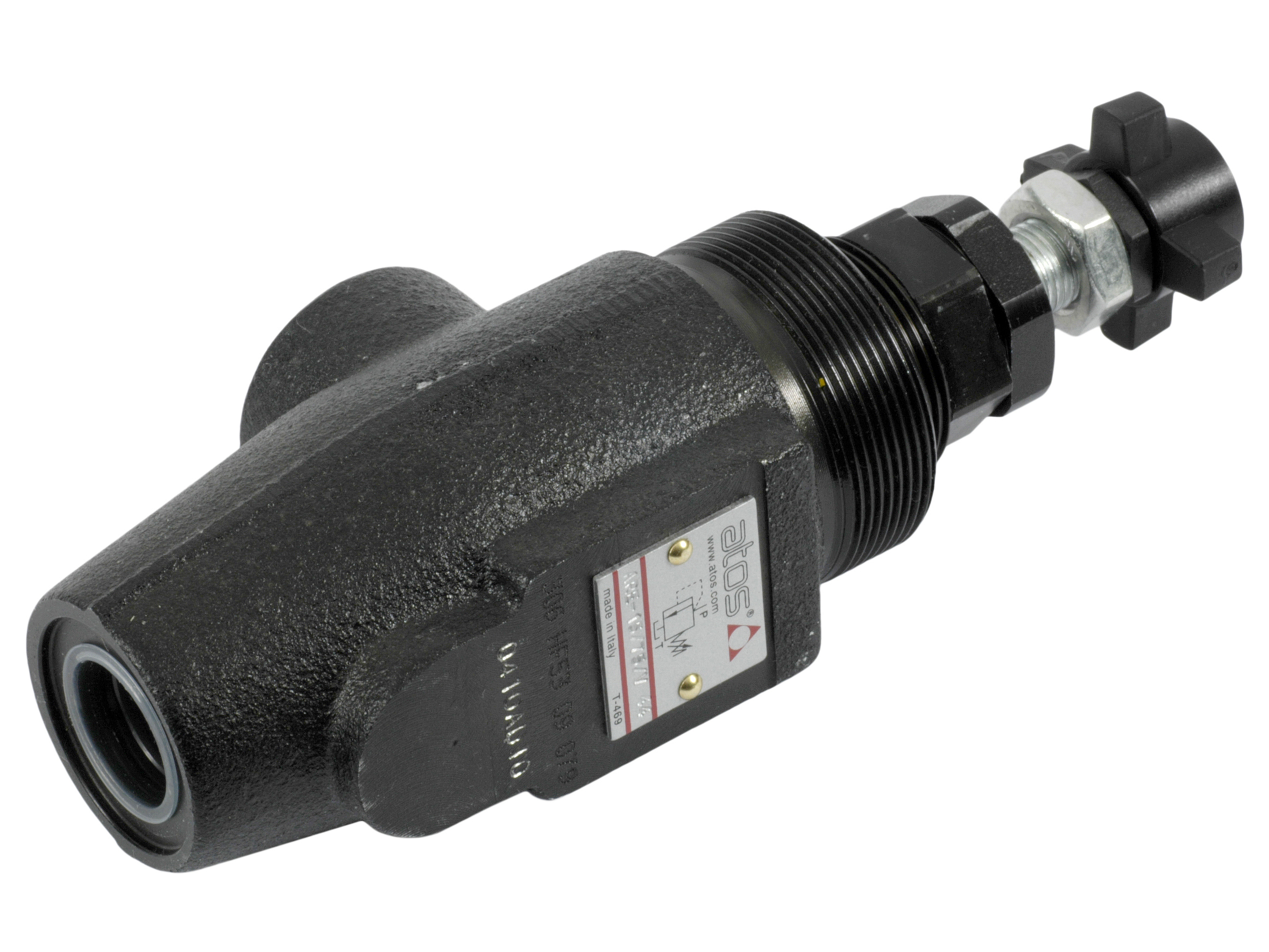

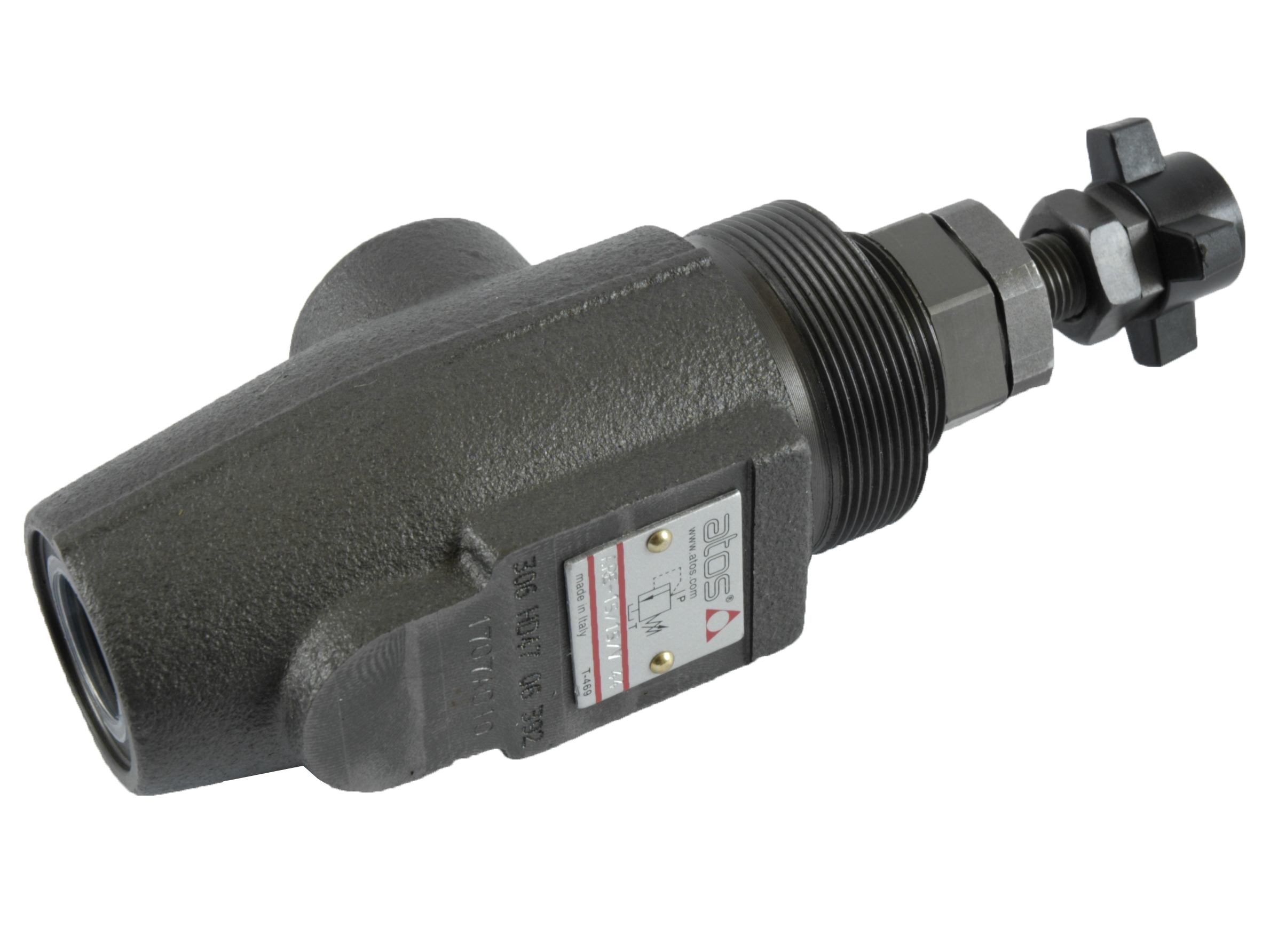

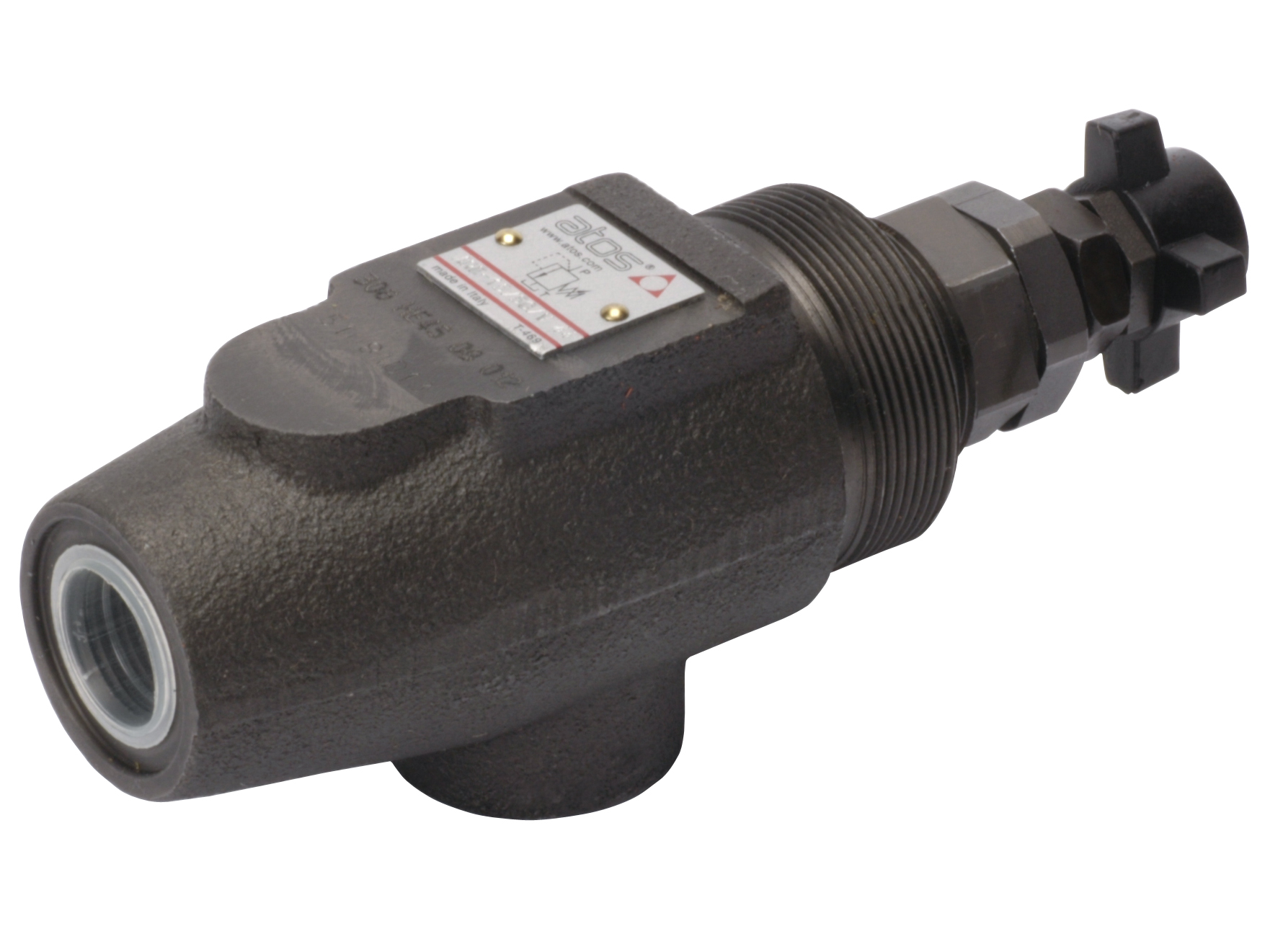

Pressure relief valve - Atos ARE

Atos trykbegrænsningsventil 6-100 bar

Atos pressure relief valve 15-350 bar

Atos pressure relief valve 30-500 bar

Atos pressure relief valve 2-15 bar

Atos pressure relief valve 3-50 bar

Atos pressure relief valve 4-75 bar

Atos pressure relief valve 8-250bar

SELECT VARIANT

Partnumber	Description	Flow rate nominal LMin	Pressure setting min.	Pressure setting max.	Pressure max.
ARE06/100/V	Atos trykbegrænsningsventil 6-100 bar	80 lpm	6 bar	100 bar	500 bar
ARE06/350/V	Atos pressure relief valve 15-350 bar	40 lpm	15 bar	350 bar	500 bar
ARE06/500/V	Atos pressure relief valve 30-500 bar	40 lpm	30 bar	500 bar	500 bar
ARE15/015/V	Atos pressure relief valve 2-15 bar	75 lpm	2 bar	15 bar	420 bar
ARE15/050/V	Atos pressure relief valve 3-50 bar	75 lpm	3 bar	3 bar	420 bar
ARE15/075/V	Atos pressure relief valve 4-75 bar	75 lpm	4 bar	75 bar	420 bar
ARE15/250/V	Atos pressure relief valve 8-250bar	75 lpm	8 bar	250 bar	420 bar

Brand Name

Atos

Contamination level max.

21/19/16 - ISO 4406

Material

Steel

Oil viscocity recommended

15 - 100

Temperature max.

+60

Temperature min.

-30
