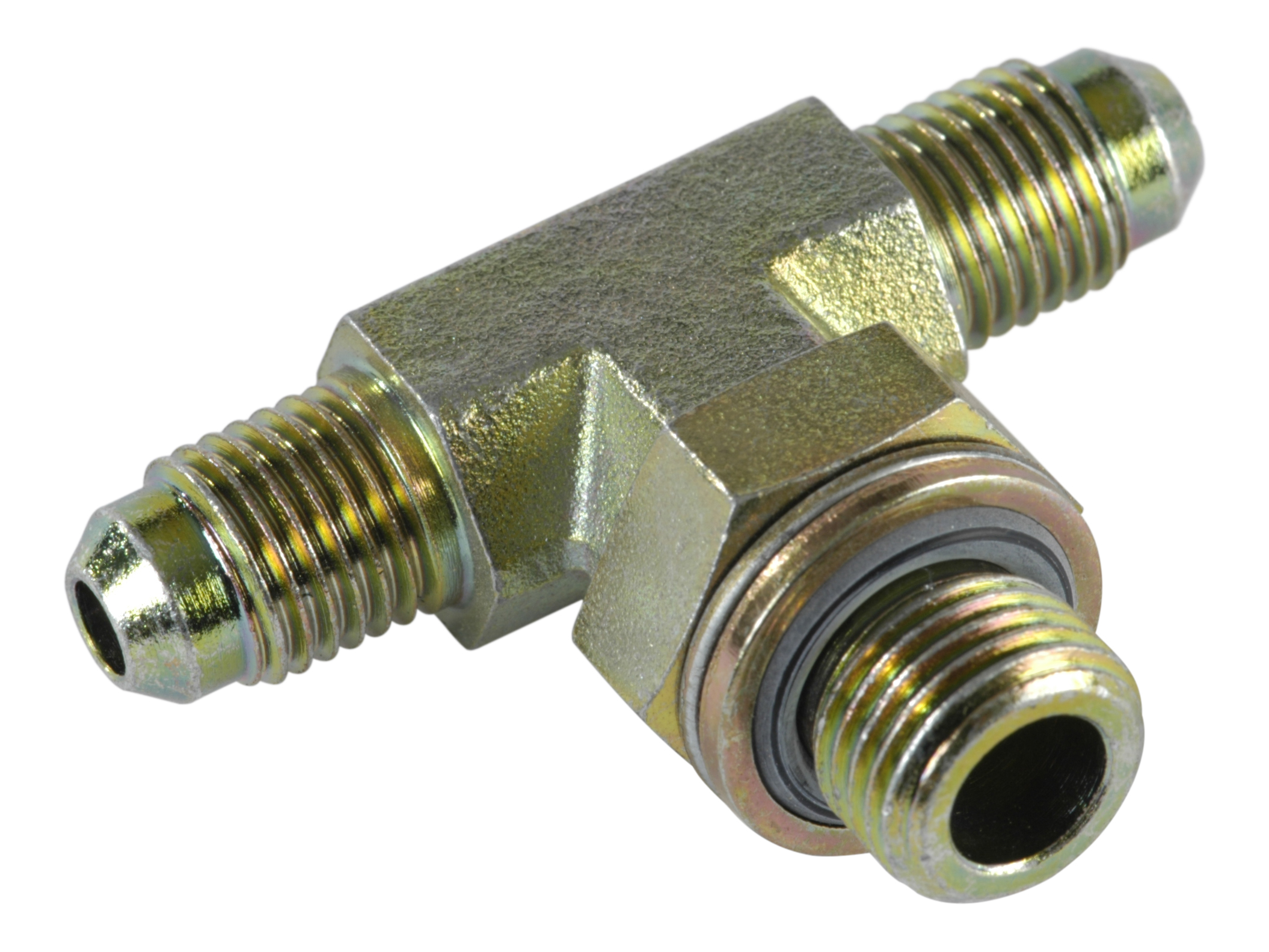

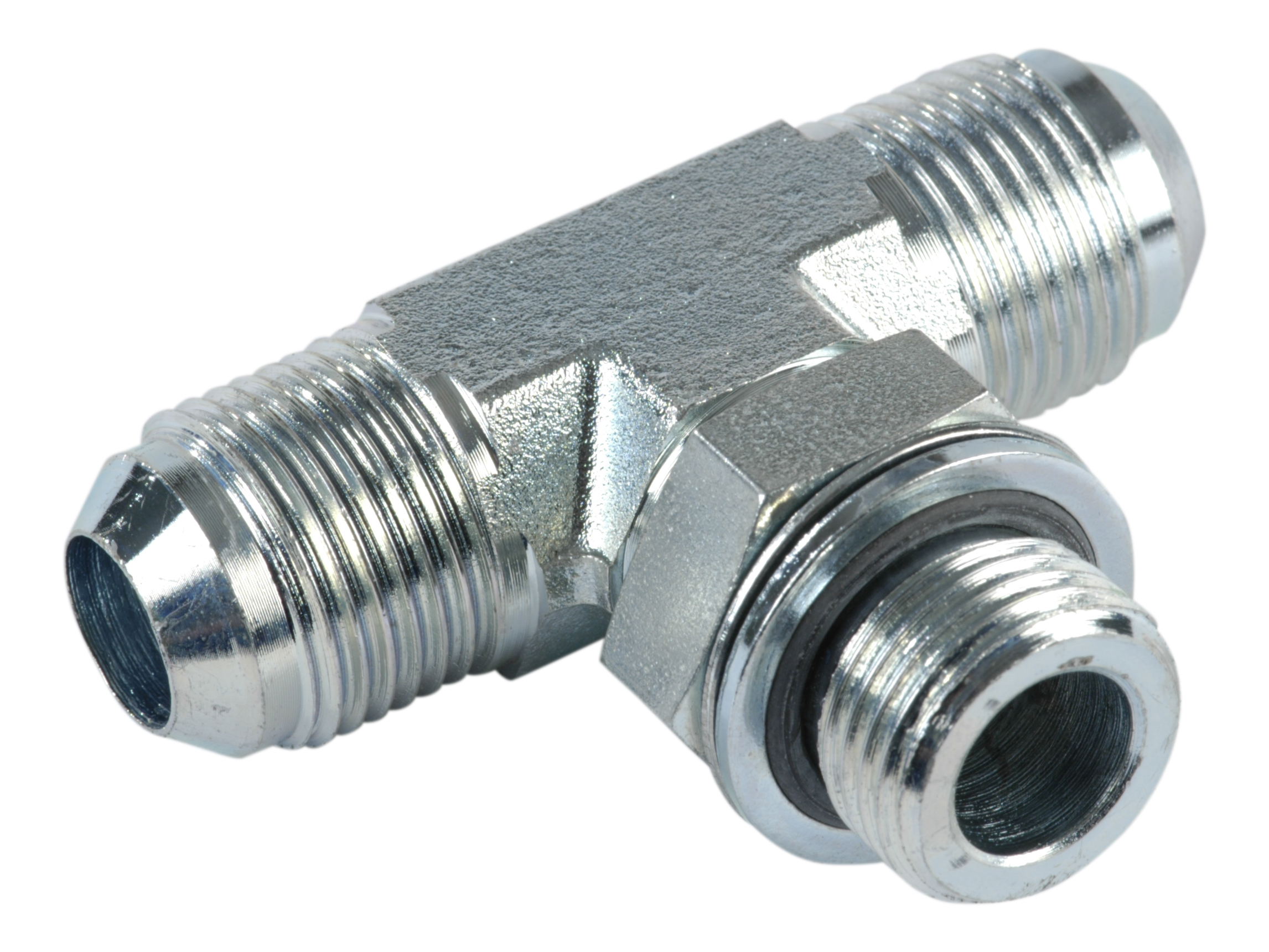

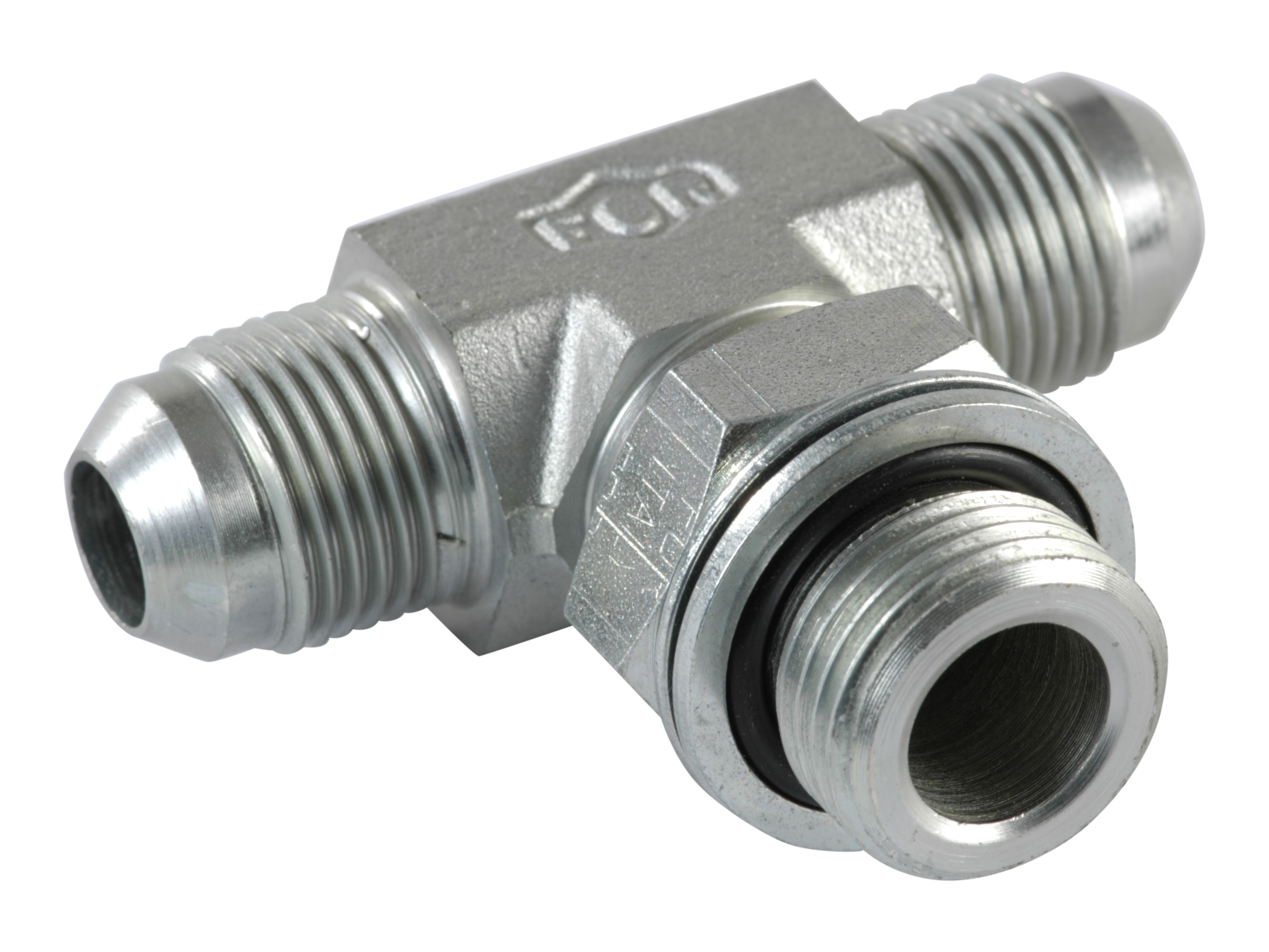

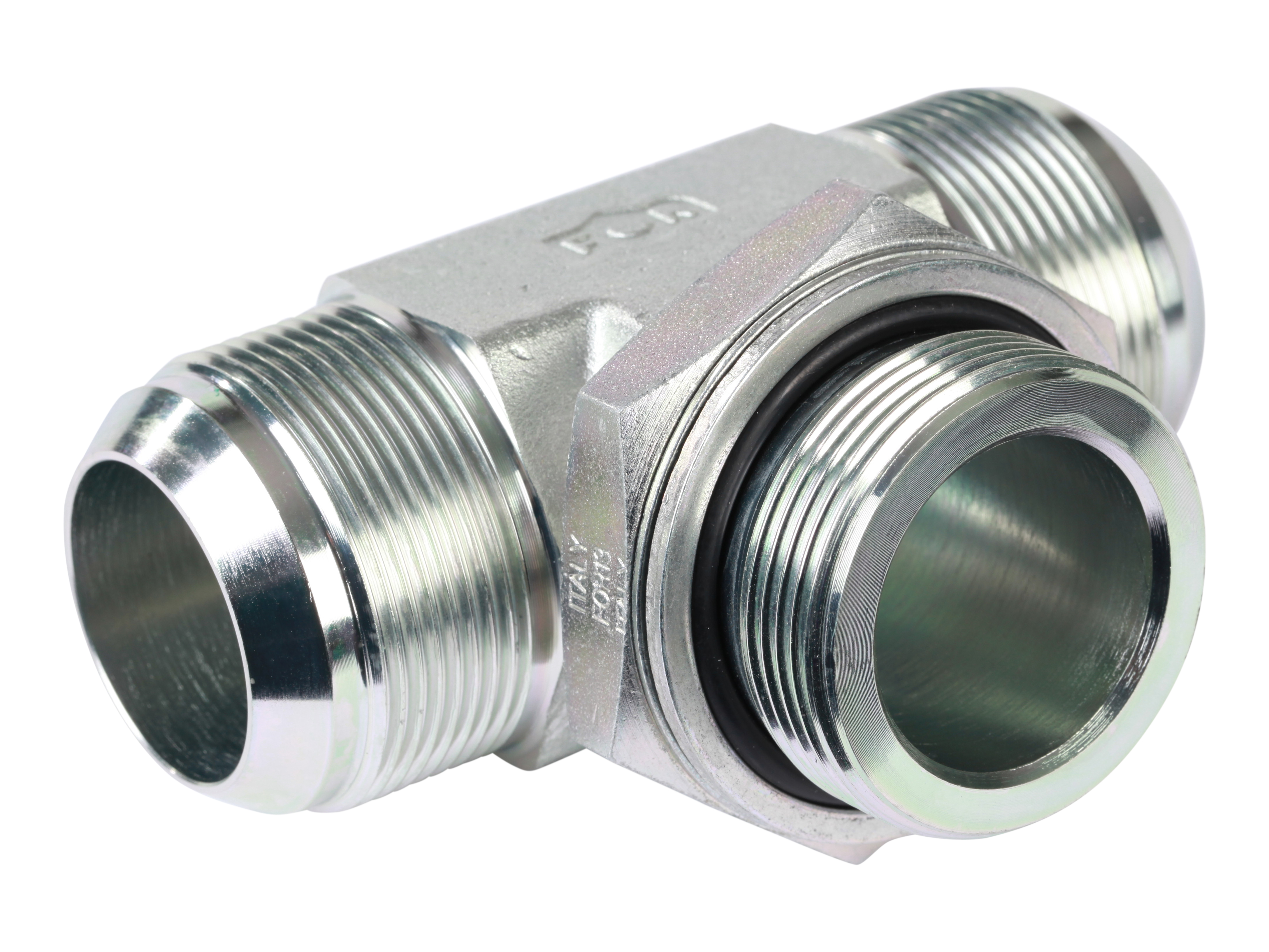

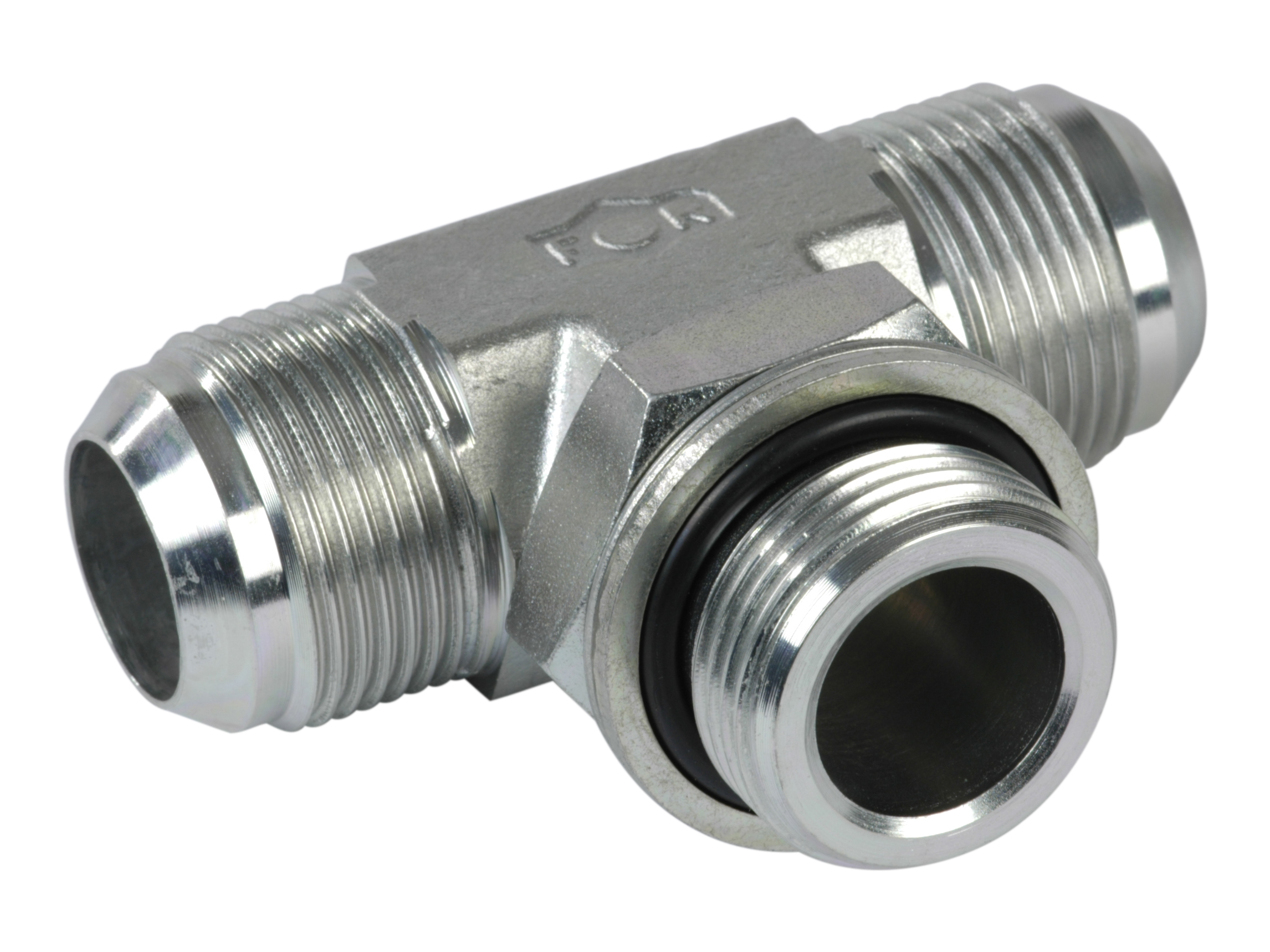

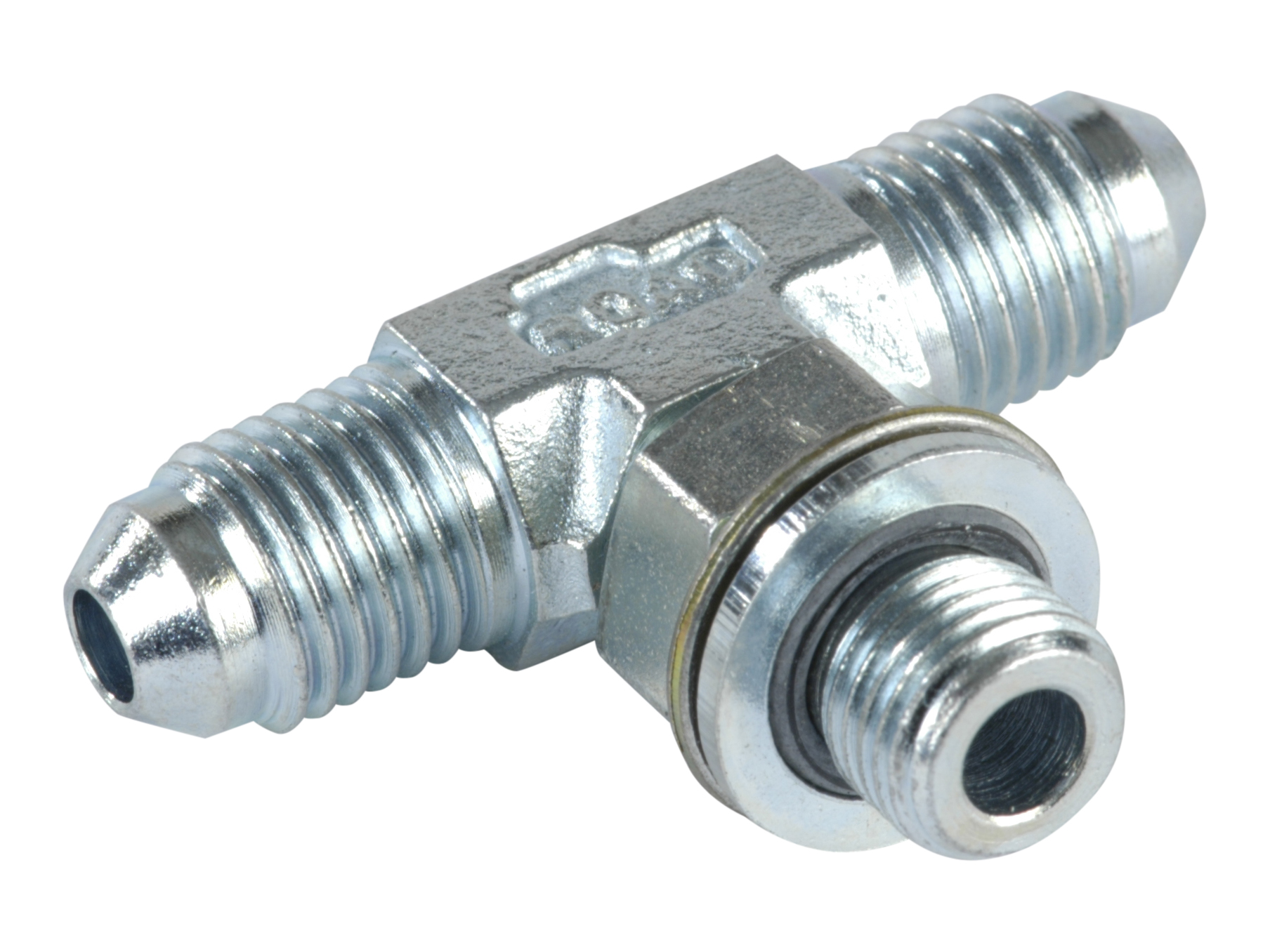

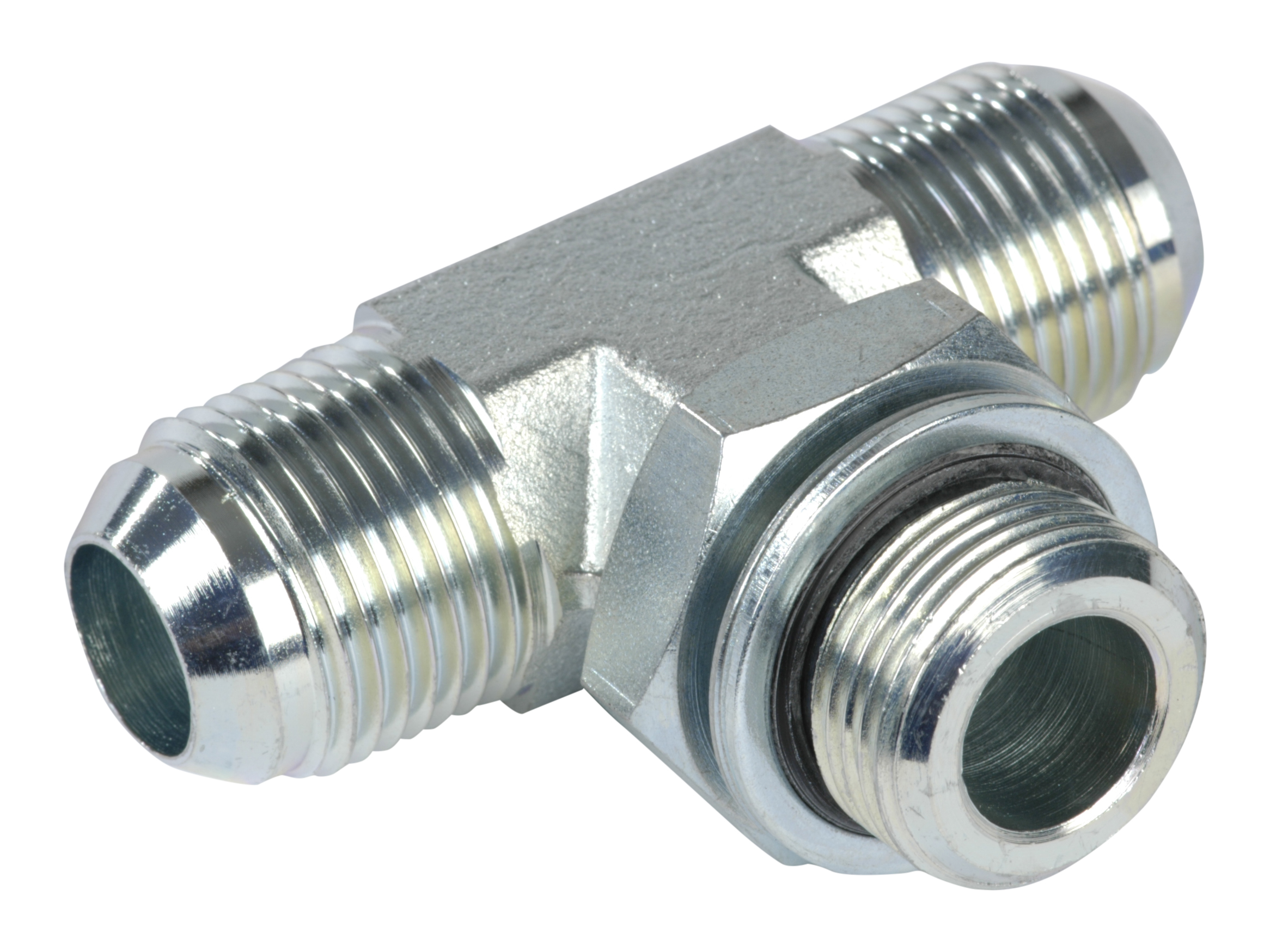

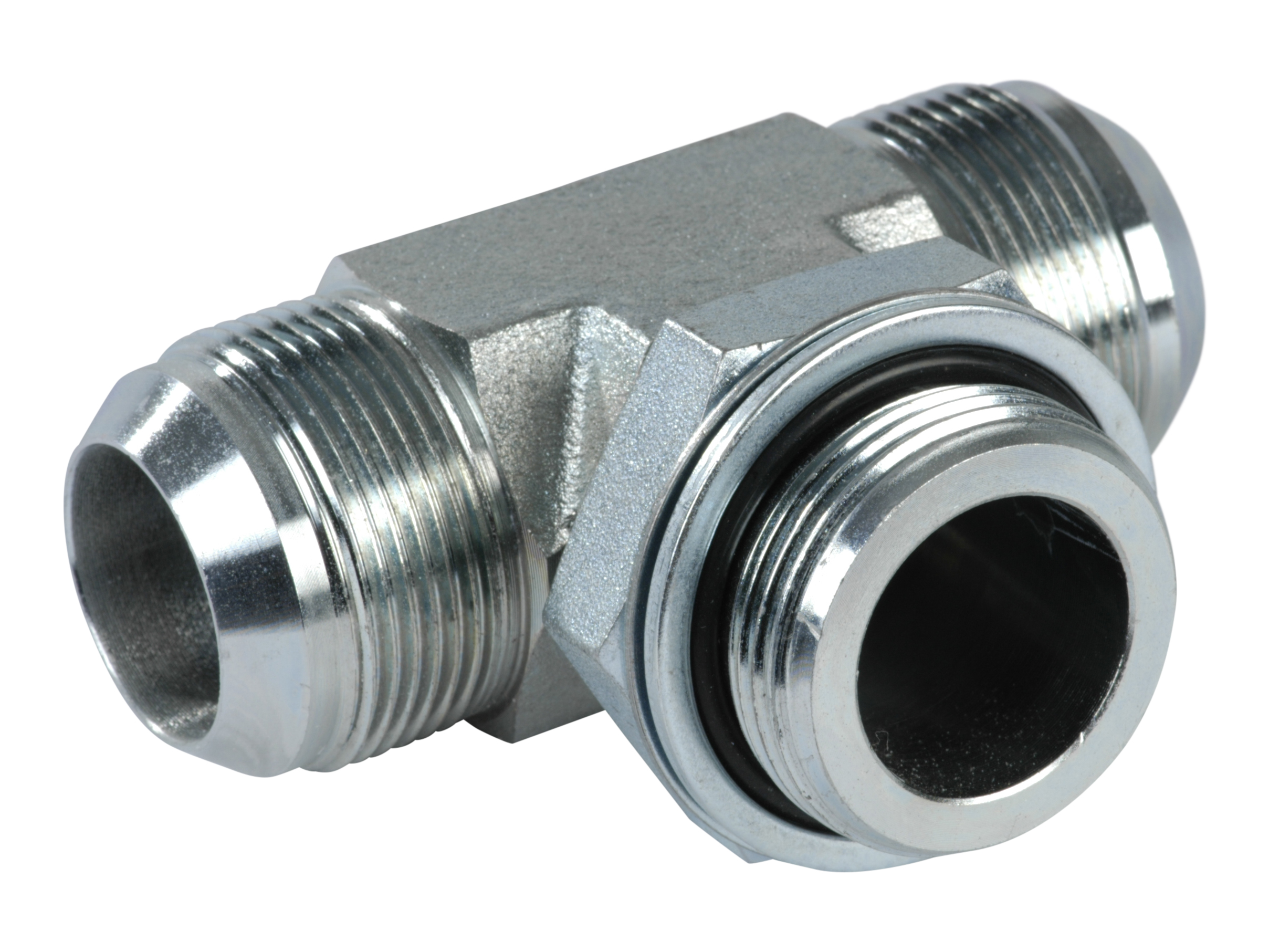

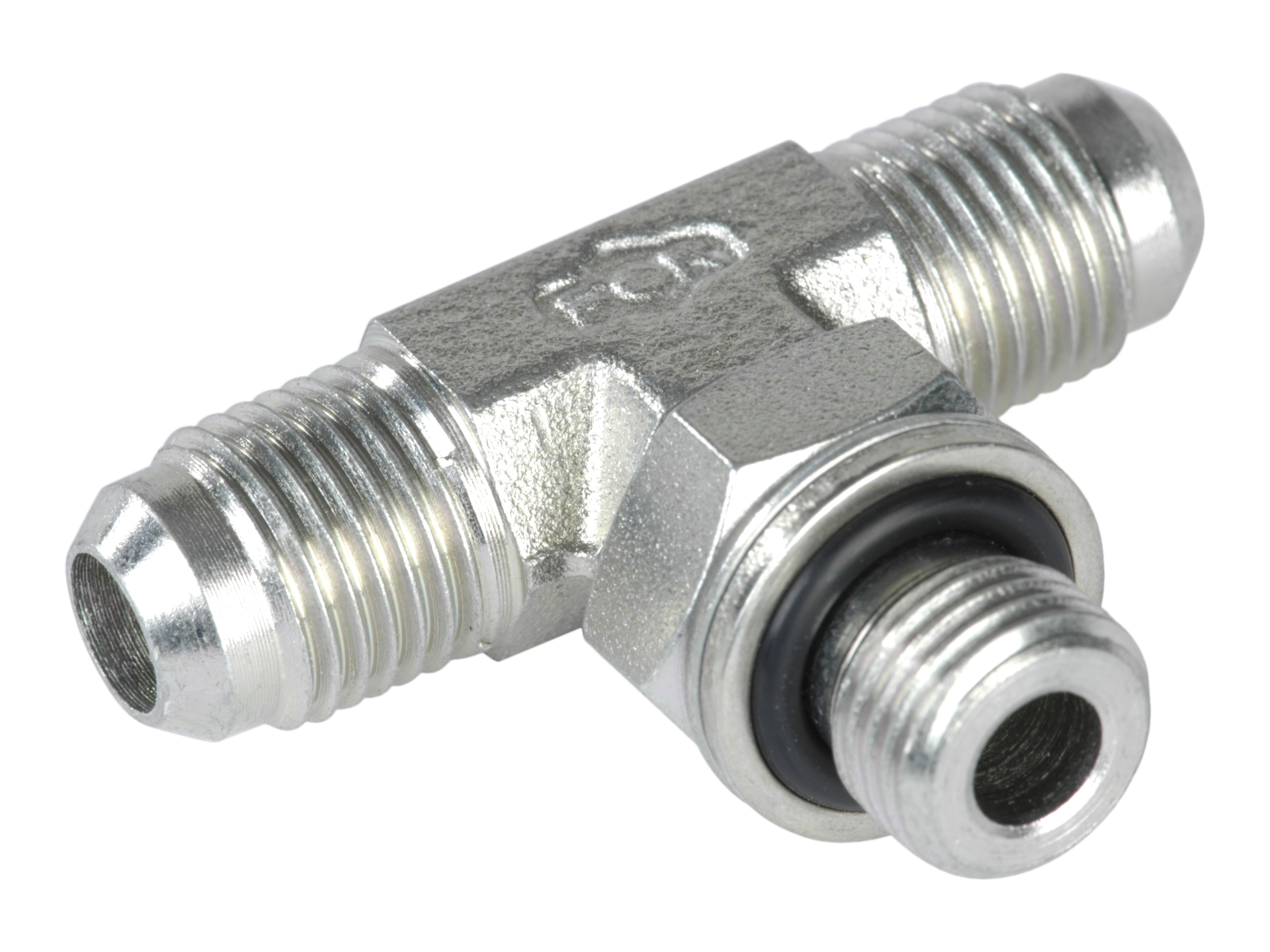

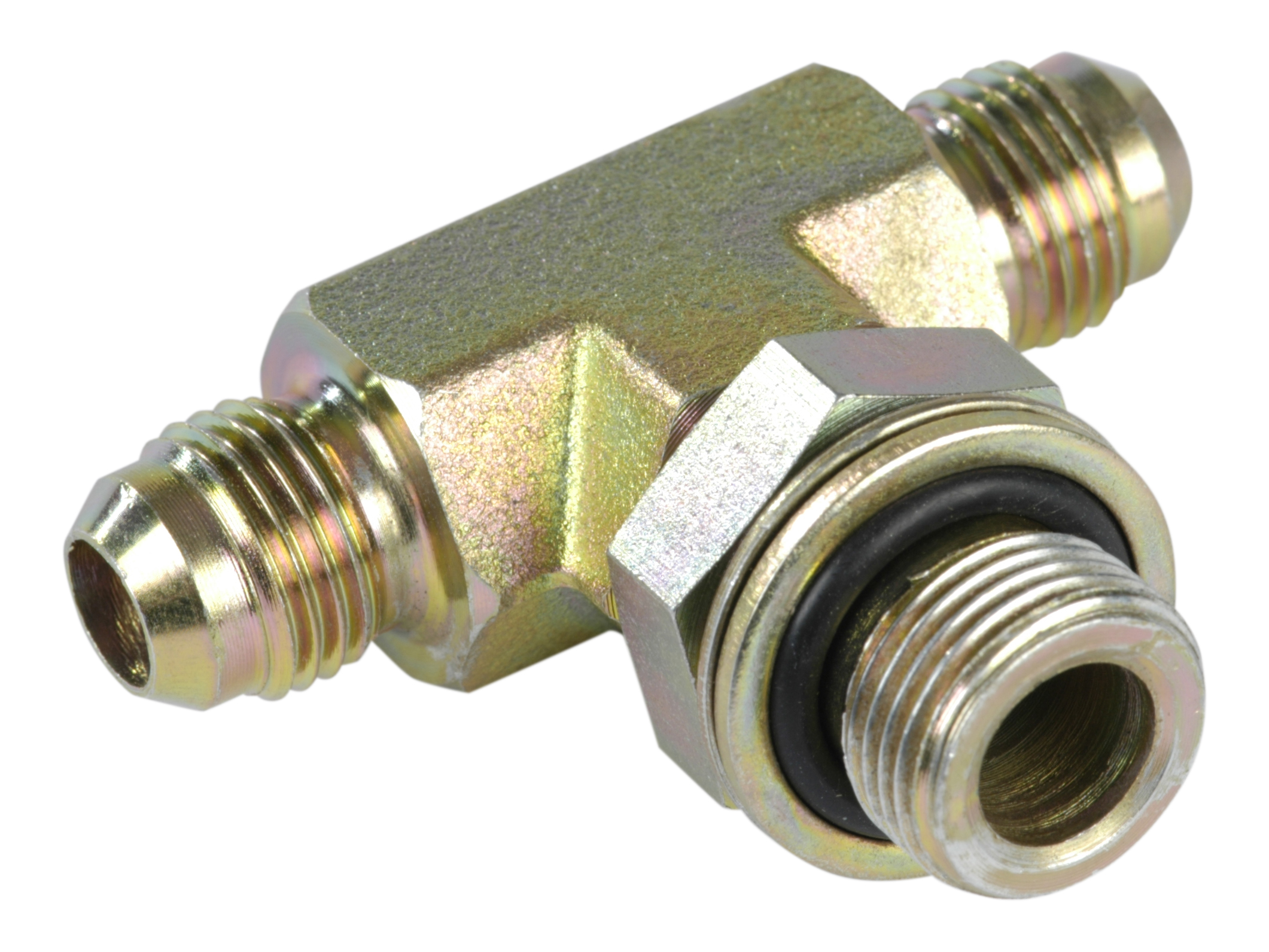

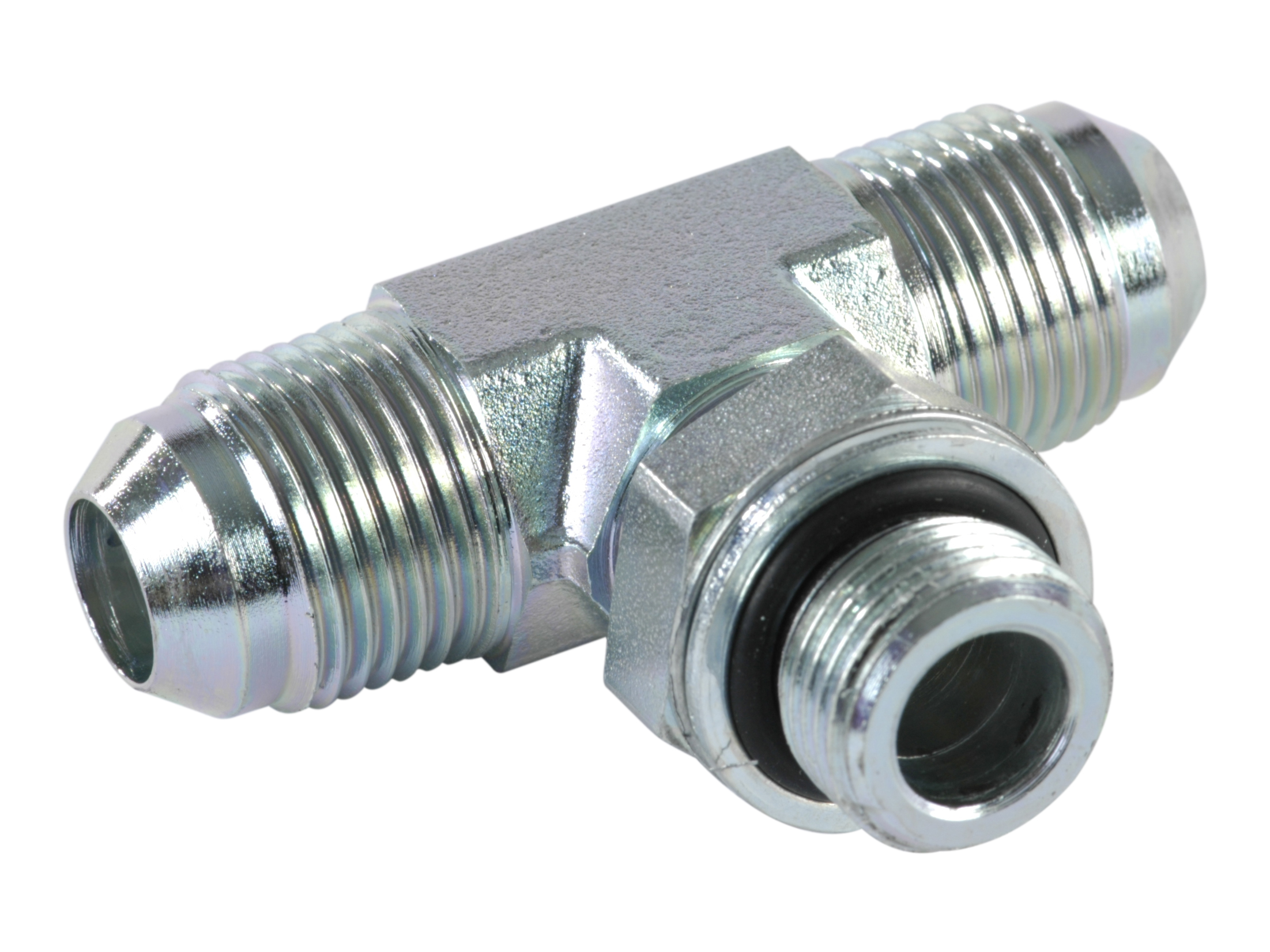

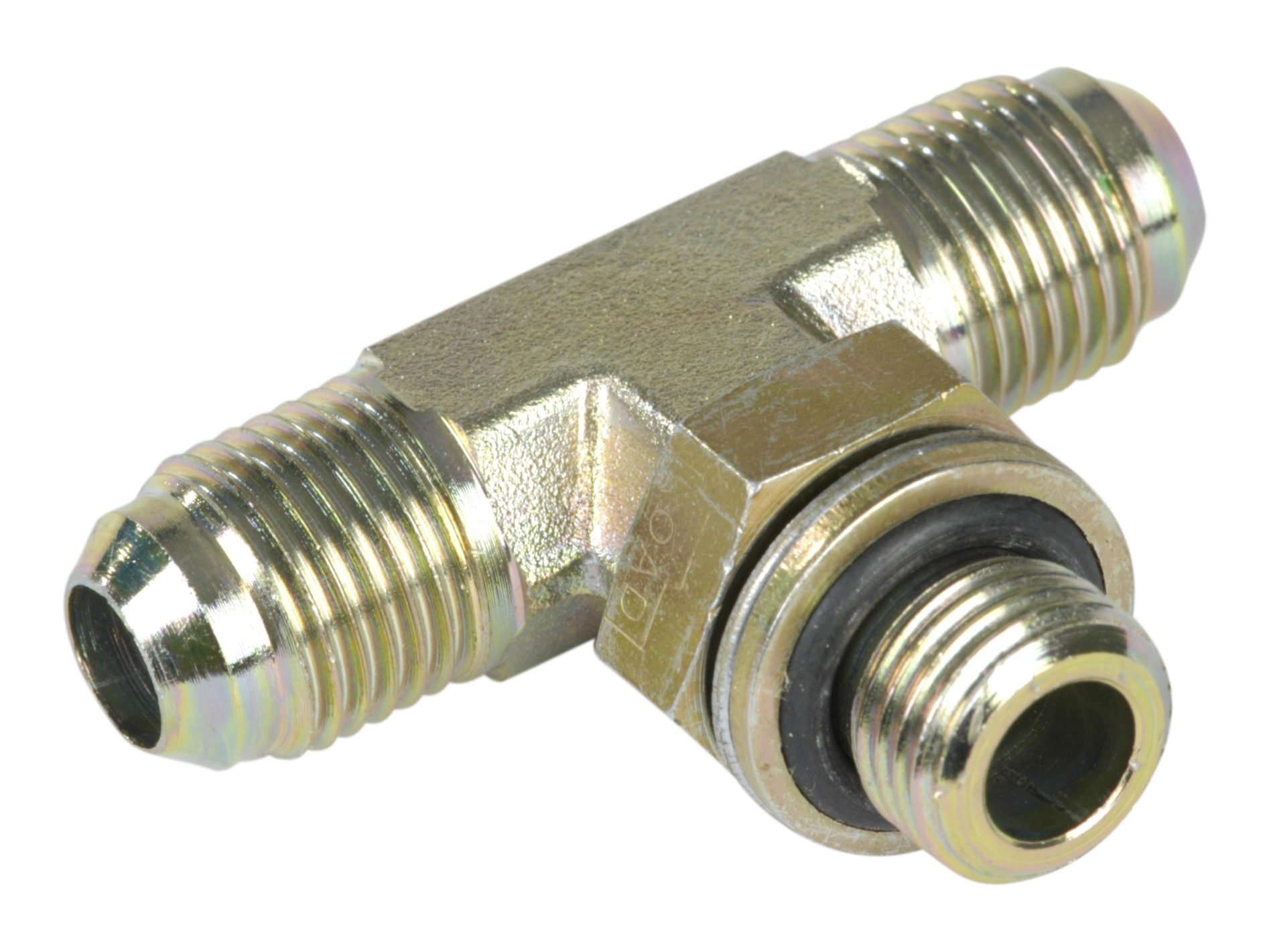

T-adapter JIC male x BSP male counter nut x JIC male - TOL / JTEE

T-adapter JIC male x BSP male counter nut x JIC male - TOL / JTEE

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Pressure max.
TOL-06-1/4 S610-06-13G Tee BSP 6 mm G 1/4 BSP 7/16-20 JIC 450 bar
TOL-06-1/8 S610-06-10G Tee BSP 6 mm G 1/8 BSP 7/16-20 JIC 450 bar
TOL-08-1/4 S610-08-13G Tee BSP 8 mm G 1/4 BSP 1/2-20 JIC 416 bar
TOL-10-1/4 S610-10-13G Tee BSP 10 mm G 1/4 BSP 9/16-18 JIC 350 bar
TOL-10-3/8 S610-10-17G Tee BSP 10 mm G 3/8 BSP 9/16-18 JIC 350 bar
TOL-12-1/2 S610-12-21G Tee BSP 12 mm G 1/2 BSP 3/4-16 JIC 350 bar
TOL-12-3/8 S610-12-17G Tee BSP 12 mm G 3/8 BSP 3/4-16 JIC 350 bar
TOL-16-1/2 S610-16-21G Tee BSP 16 mm G 1/2 BSP 7/8-14 JIC 350 bar
TOL-20-3/4 S610-20-26G Tee BSP 20 mm G 3/4 BSP 1.1/16-12 JIC 300 bar
TOL-25-1 S610-25-33G Tee BSP 25 mm G 1 BSP 1.5/16-12 JIC 290 bar
TOL-32-1.1/4 S610-30-42G Tee BSP 32 mm G 1.1/4 BSP 1.5/8-12 JIC 240 bar
TOL-38-1.1/2 S610-38-48G Tee BSP 38 mm G 1.1/2 BSP 1.7/8-12 JIC 250 bar
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
