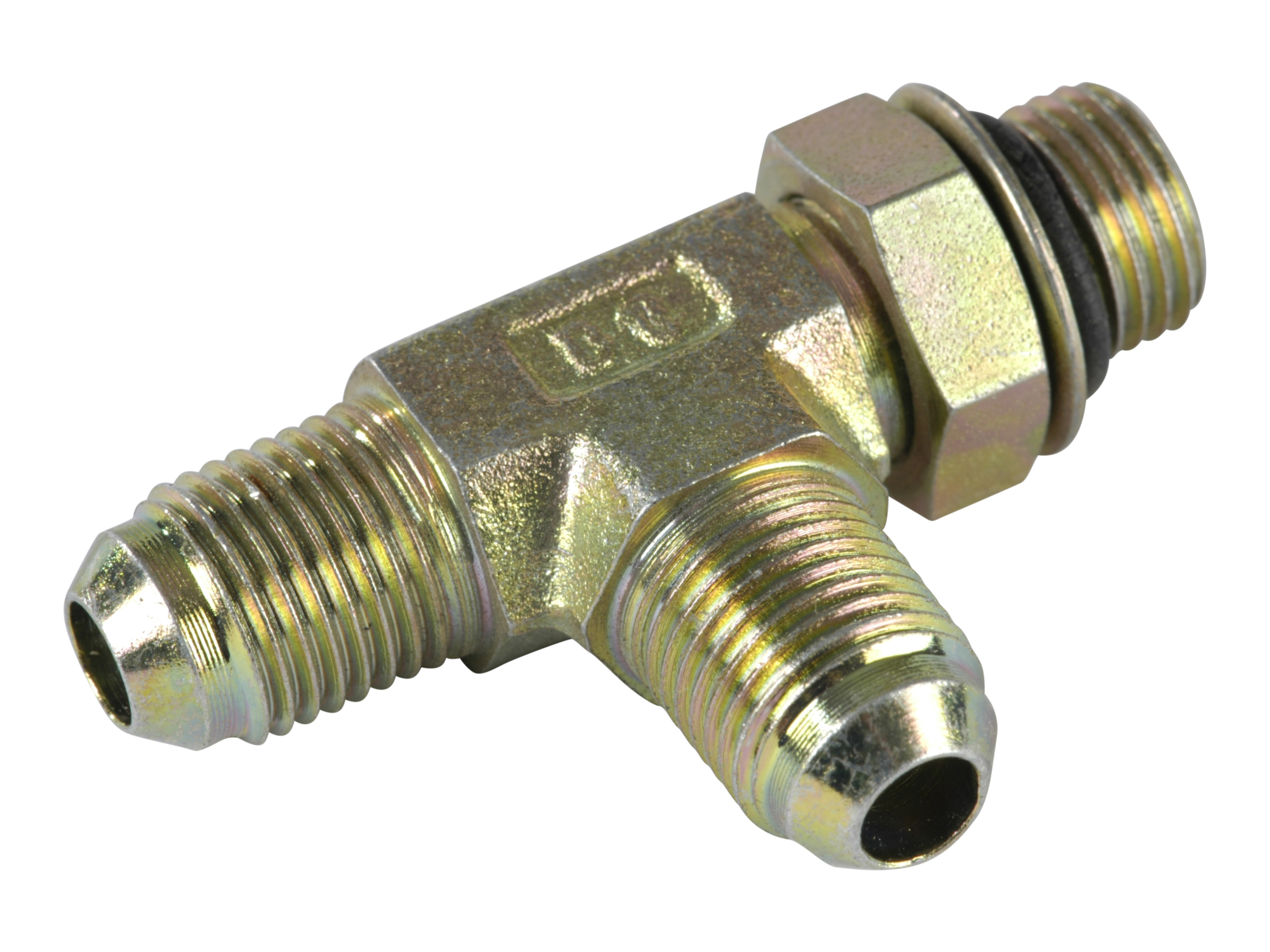

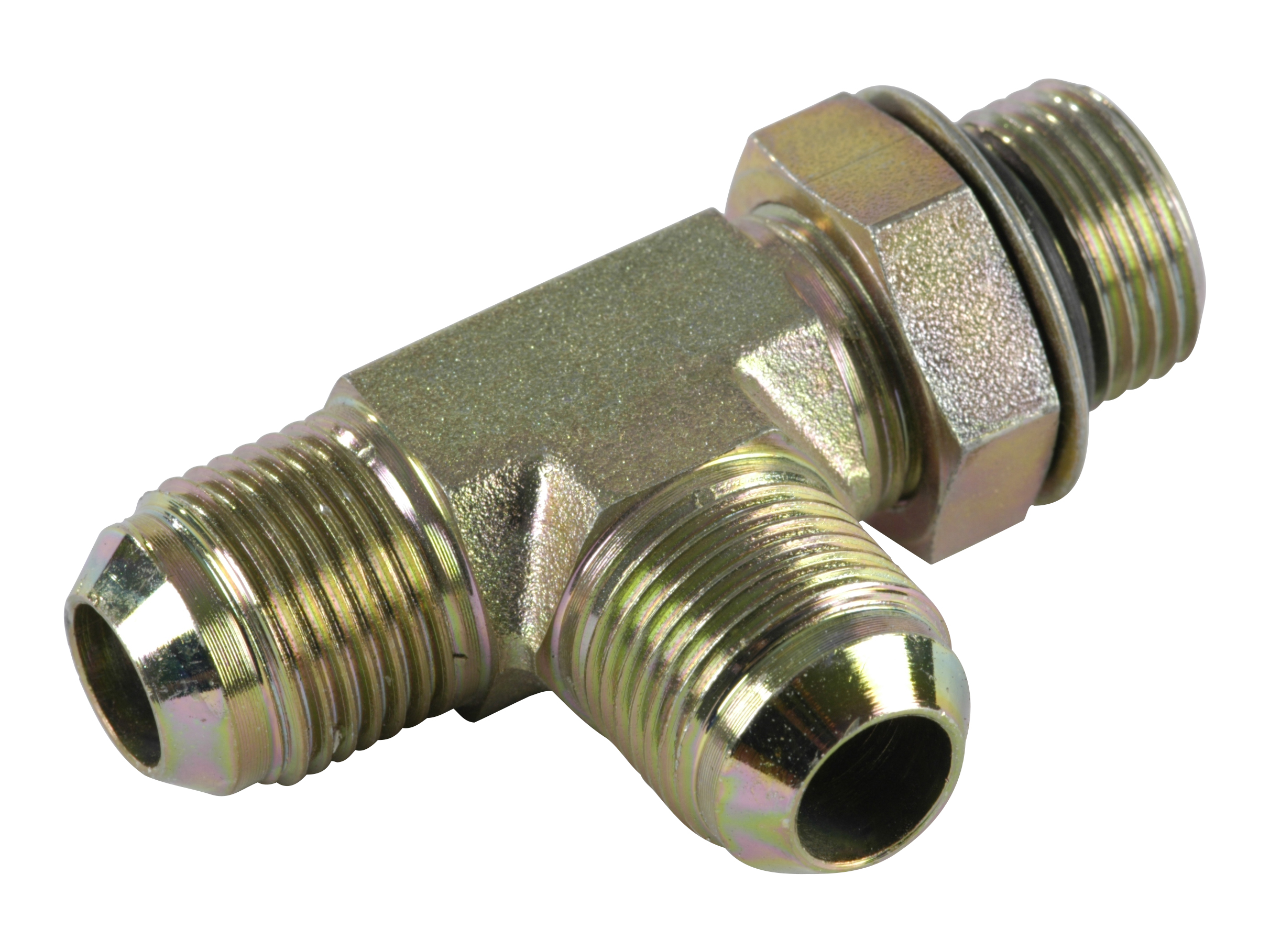

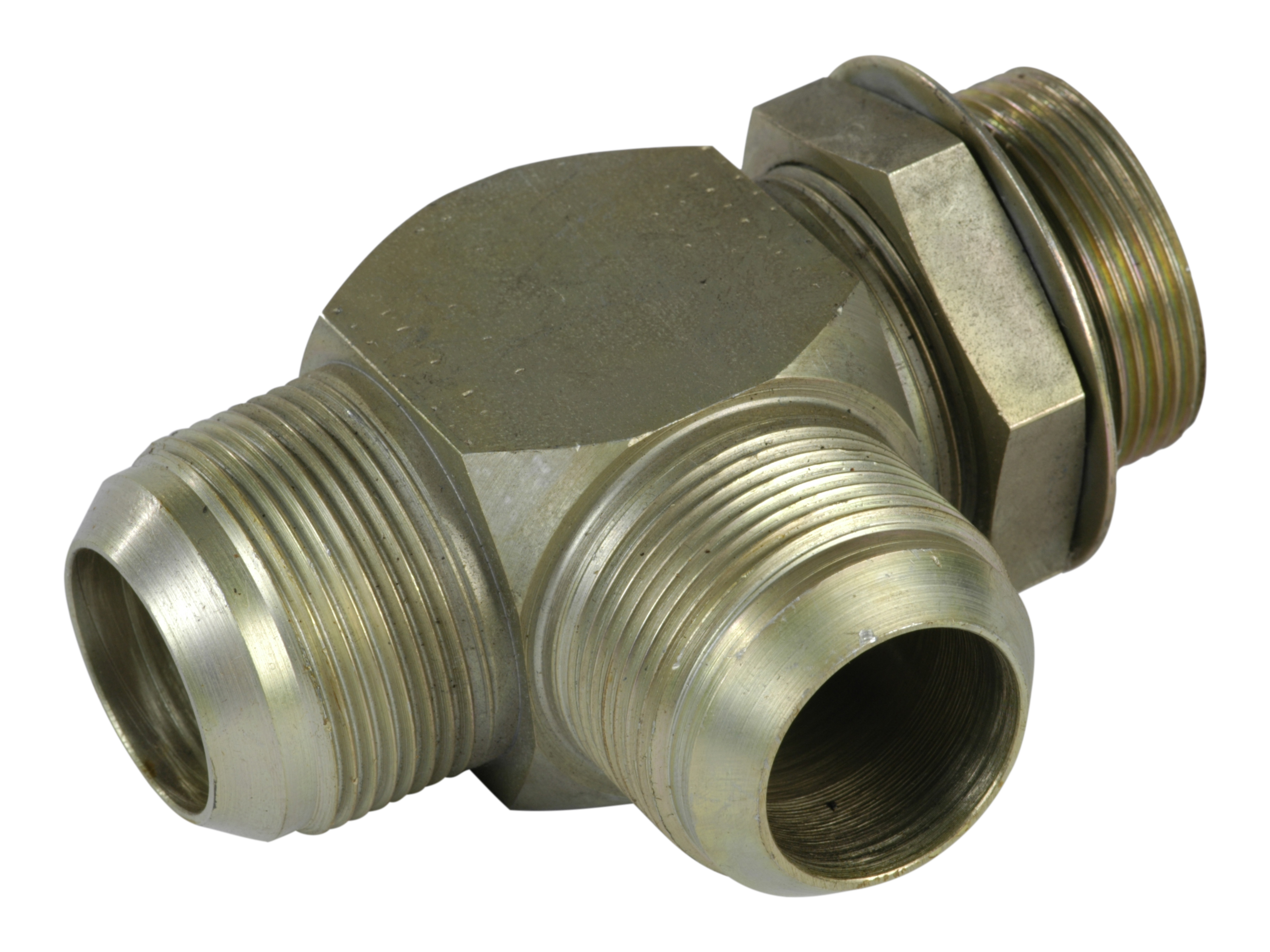

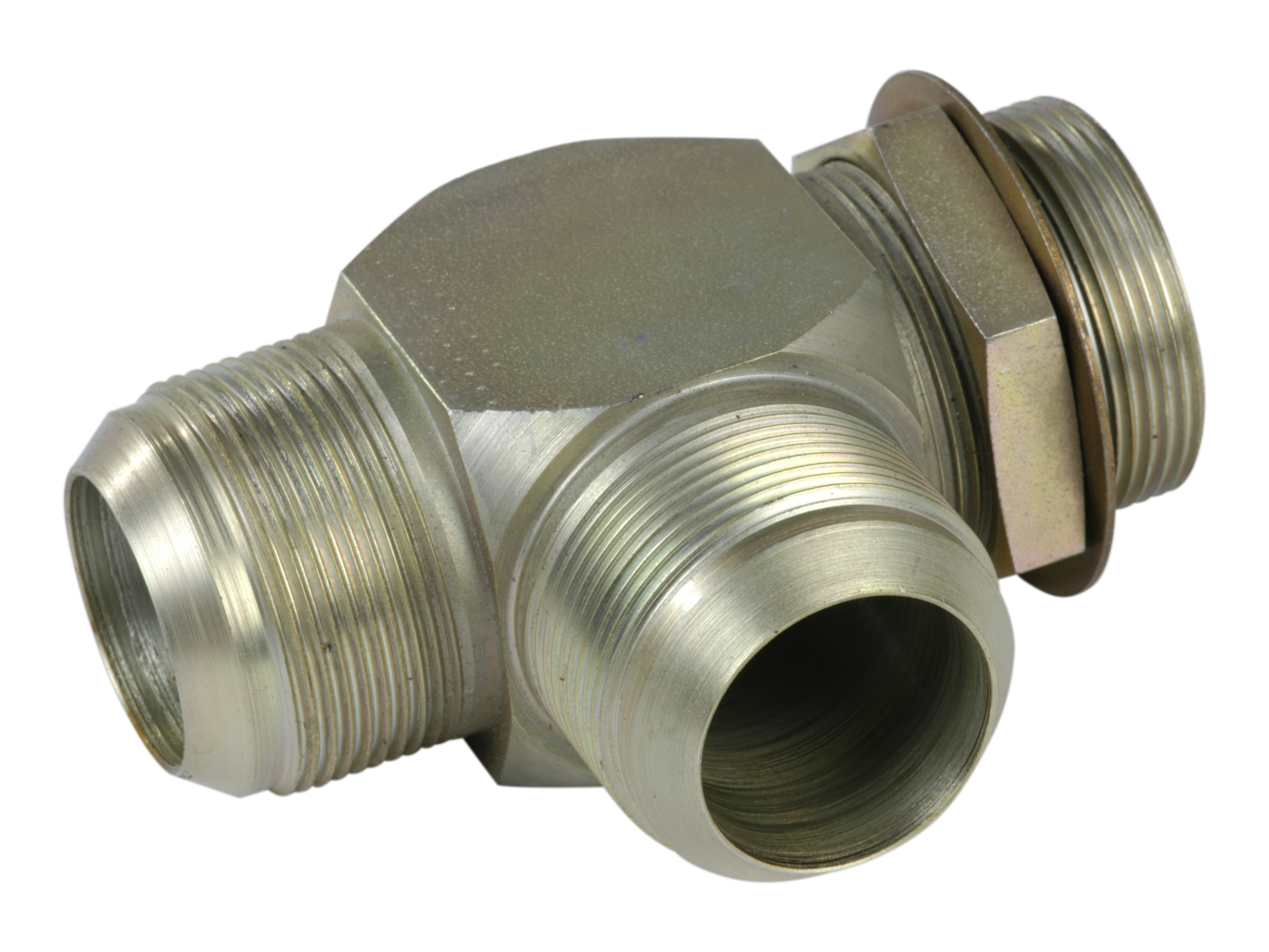

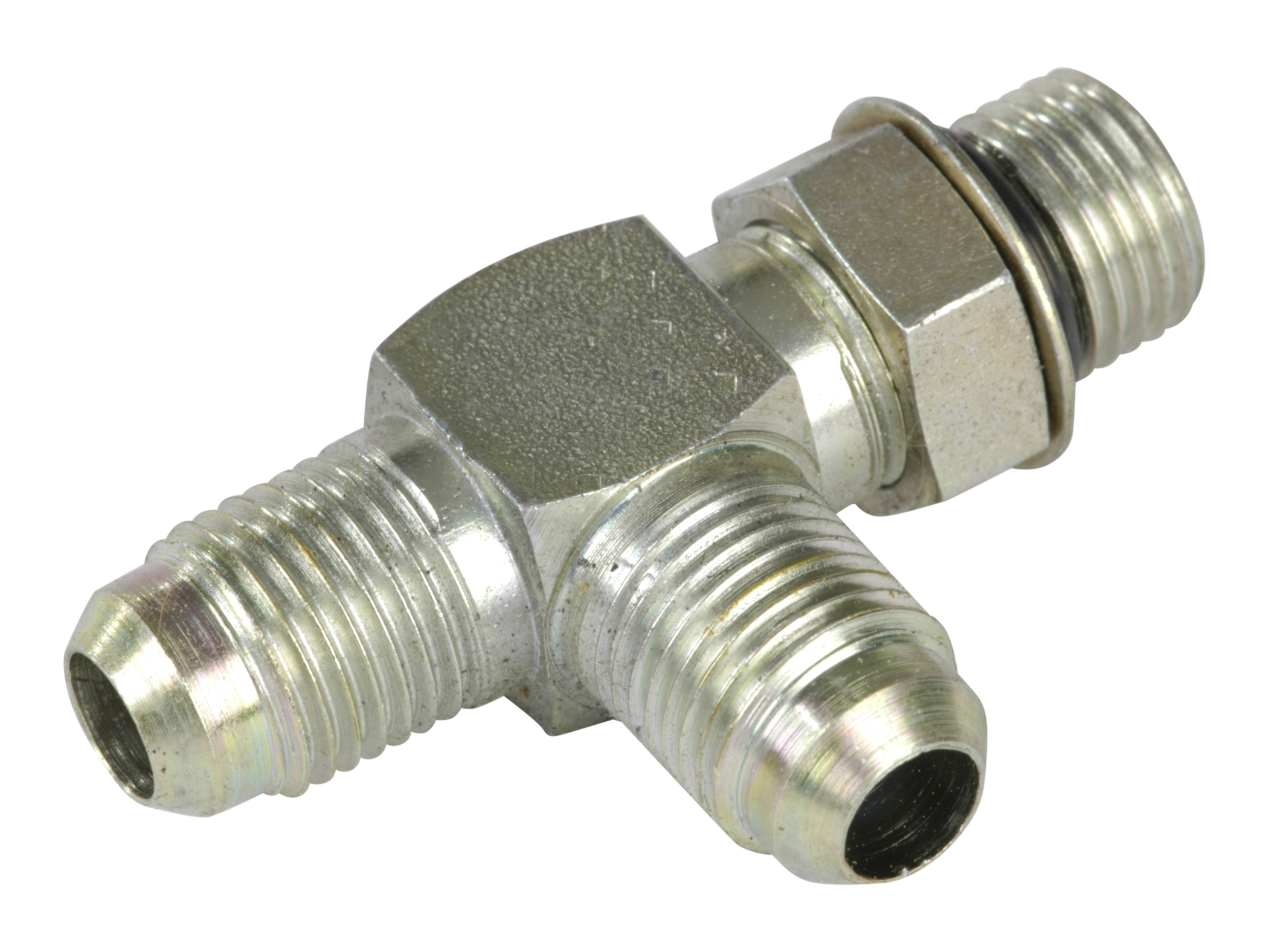

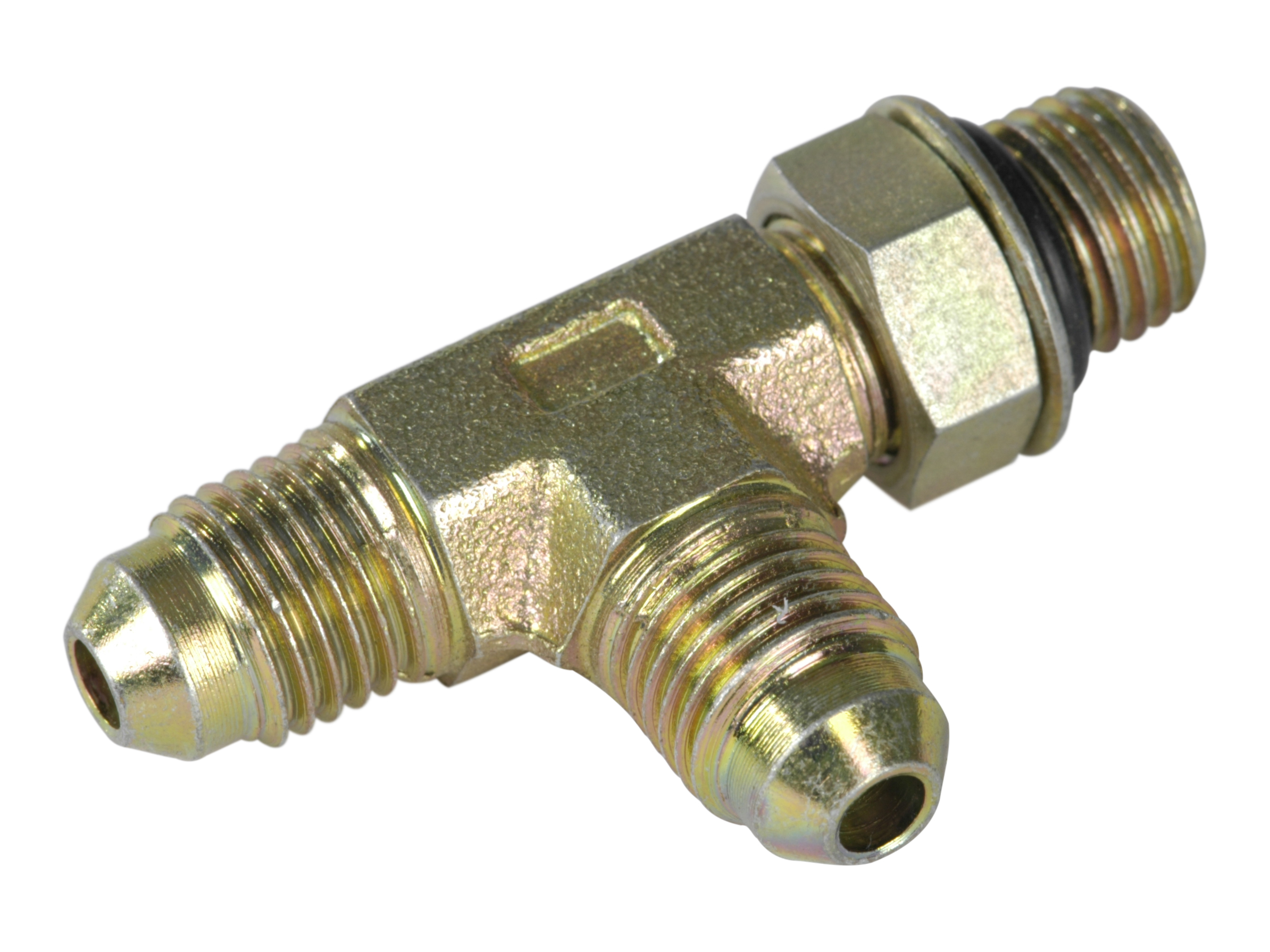

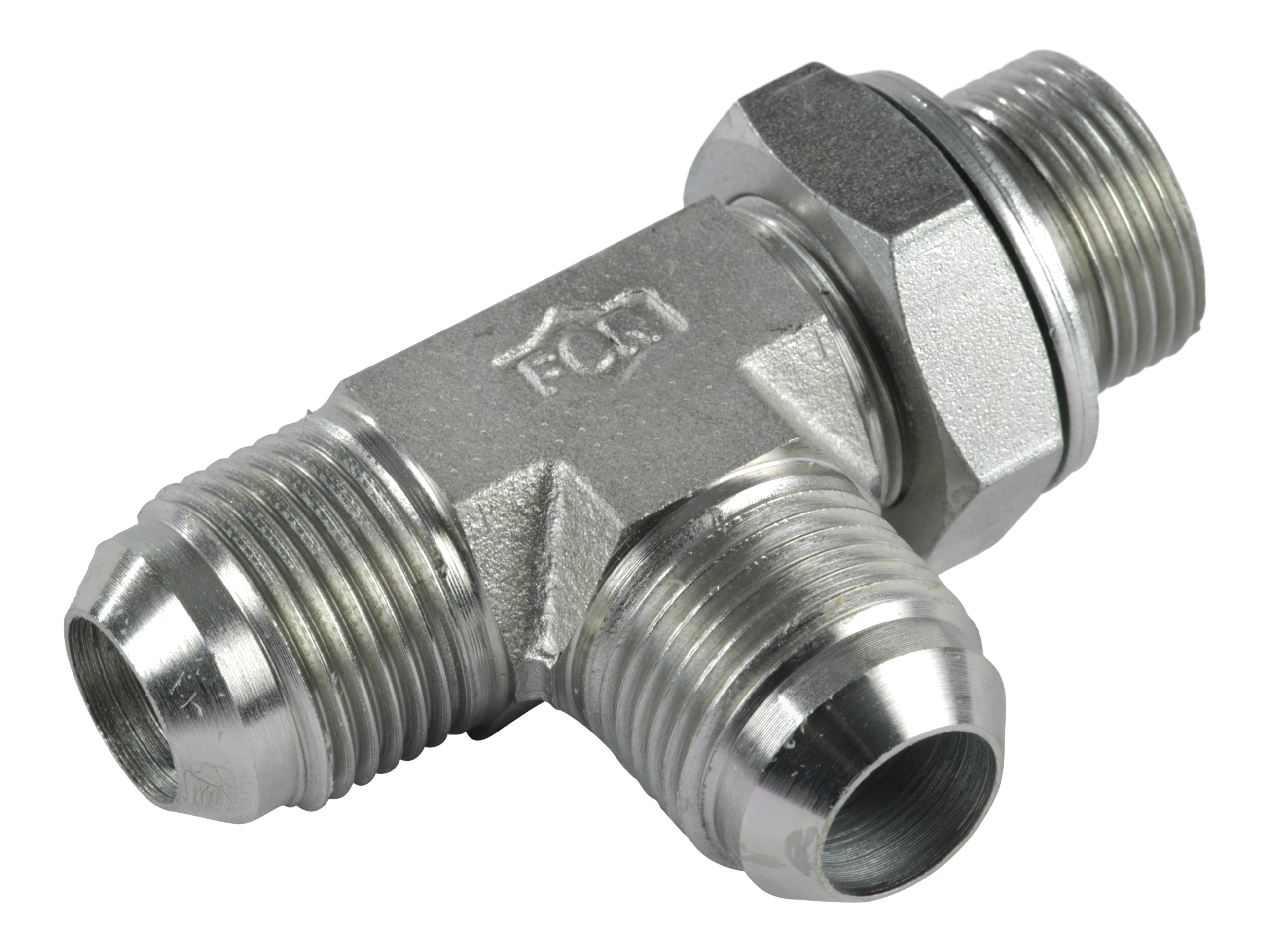

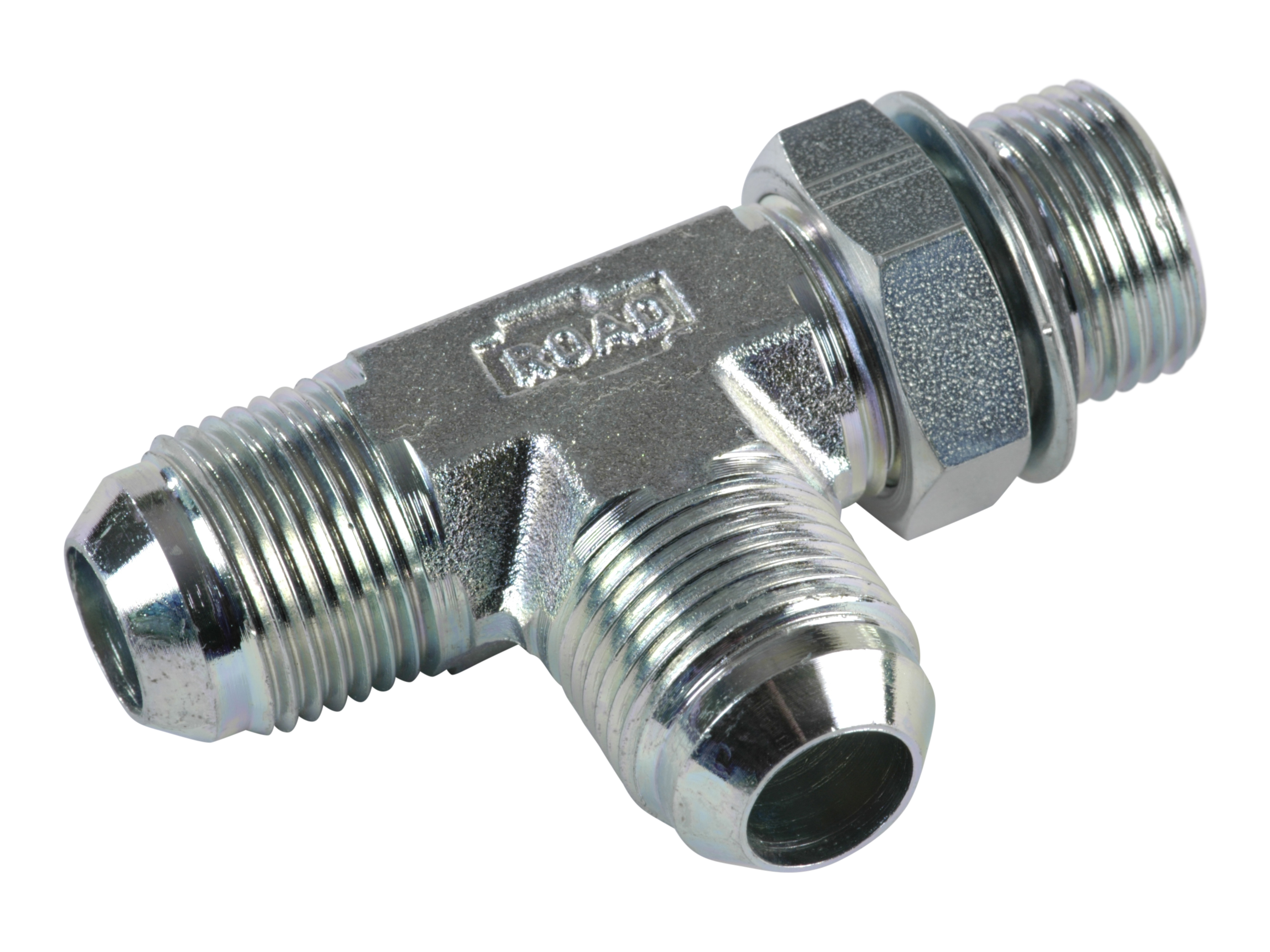

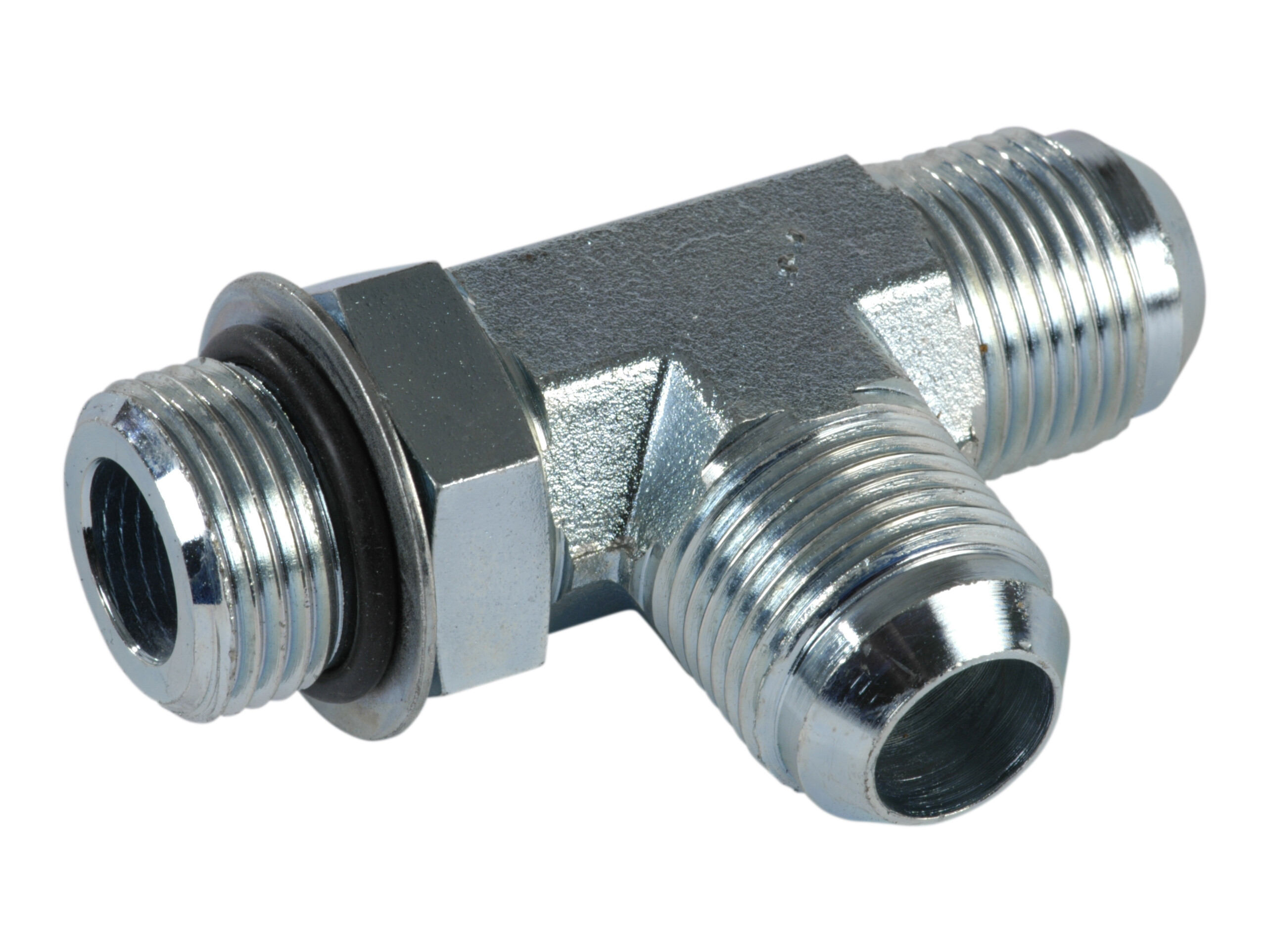

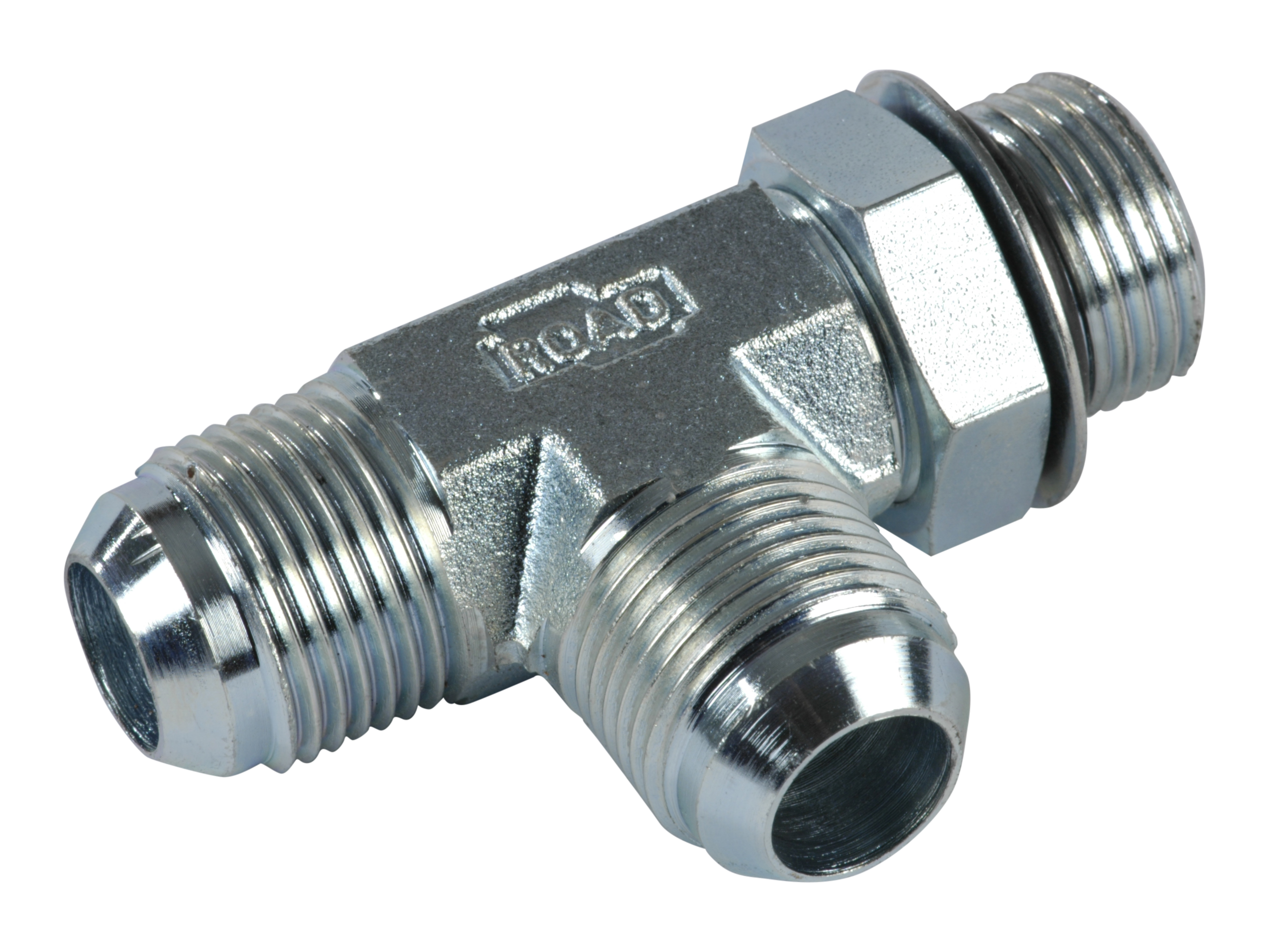

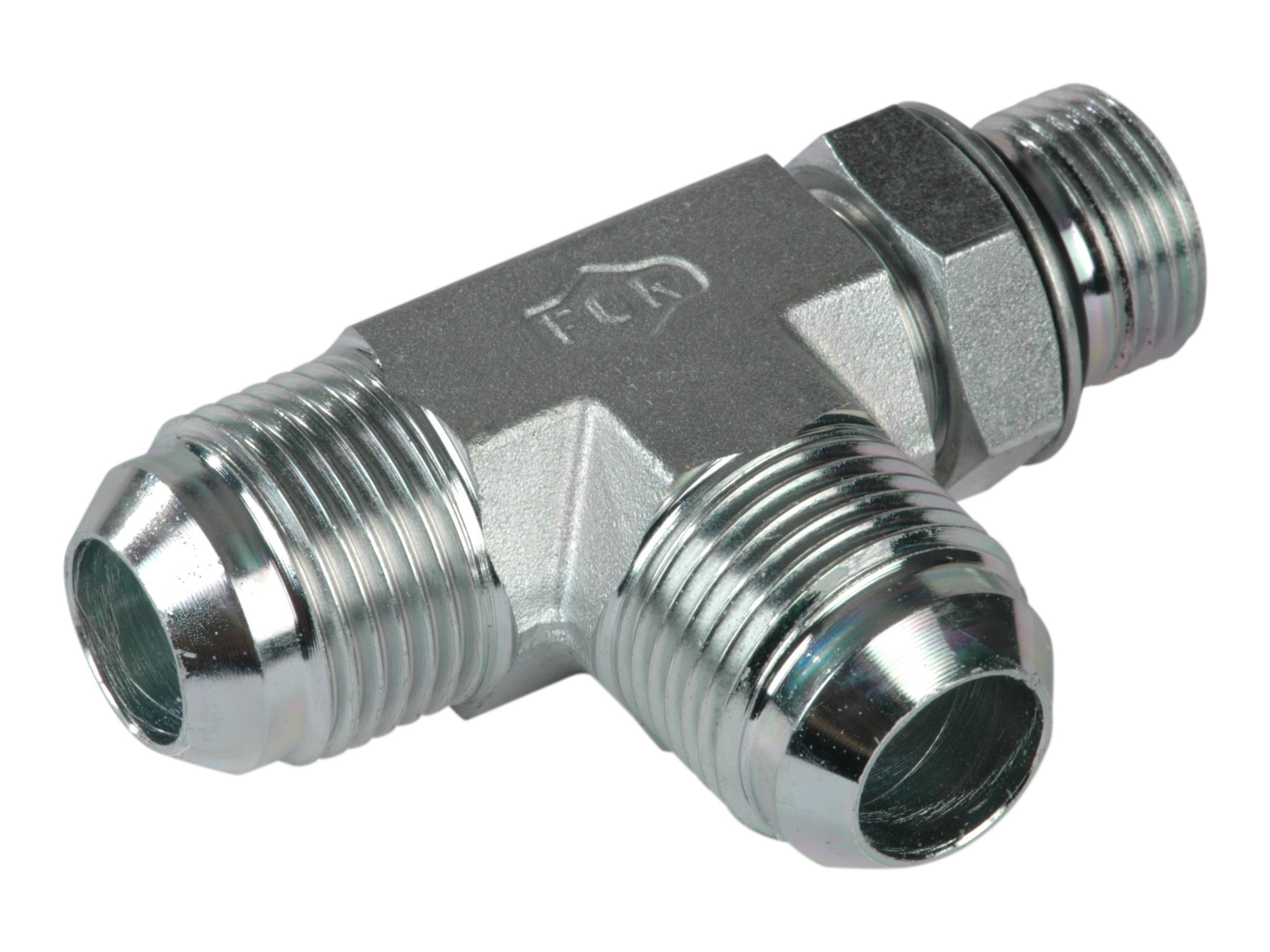

L-adapter JIC male x JIC male x UNF male counter nut - TOD-U / JLEEU

L-adapter JIC male x JIC male x UNF male counter nut - TOD-U / JLEEU

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Pressure max.
TOD-06-7/16 S580-06-11U barrel Tee UNF 6 mm 7/16-20 JIC 7/16-20 UNF 450 bar
TOD-08-1/2 S580-08-12U barrel Tee UNF 8 mm 1/2-20 JIC 1/2-20 UNF 416 bar
TOD-10-9/16 S580-10-14U barrel Tee UNF 10 mm 9/16-18 JIC 9/16-18 UNF 350 bar
TOD-12-3/4 S580-12-19U barrel Tee UNF 12 mm 3/4-16 JIC 3/4-16 UNF 350 bar
TOD-16-7/8 S580-16-22U barrel Tee UNF 16 mm 7/8-14 JIC 7/8-14 UNF 350 bar
TOD-20-17/16 S580-20-27U barrel Tee UNF 20 mm 1.1/16-12 JIC 1.1/16-12 UNF 300 bar
TOD-20-7/8 S580-20-22U barrel Tee UNF 20 mm 1.1/16-12 JIC 1.7/8-12 UNF 300 bar
TOD-25-21/16 S580-25-33U barrel Tee UNF 25 mm 1.5/16-12 JIC 1.5/16-12 UNF 290 bar
TOD-32-1.5/8 S580-32-41U barrel Tee UNF 32 mm 1.5/8-12 JIC 1.5/8-12 UNF 240 bar
TOD-38-1.7/8 Barrel Tee, cyl. UNF 38 mm 1.7/8-12 JIC 1.7/8-12 UNF 250 bar
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
